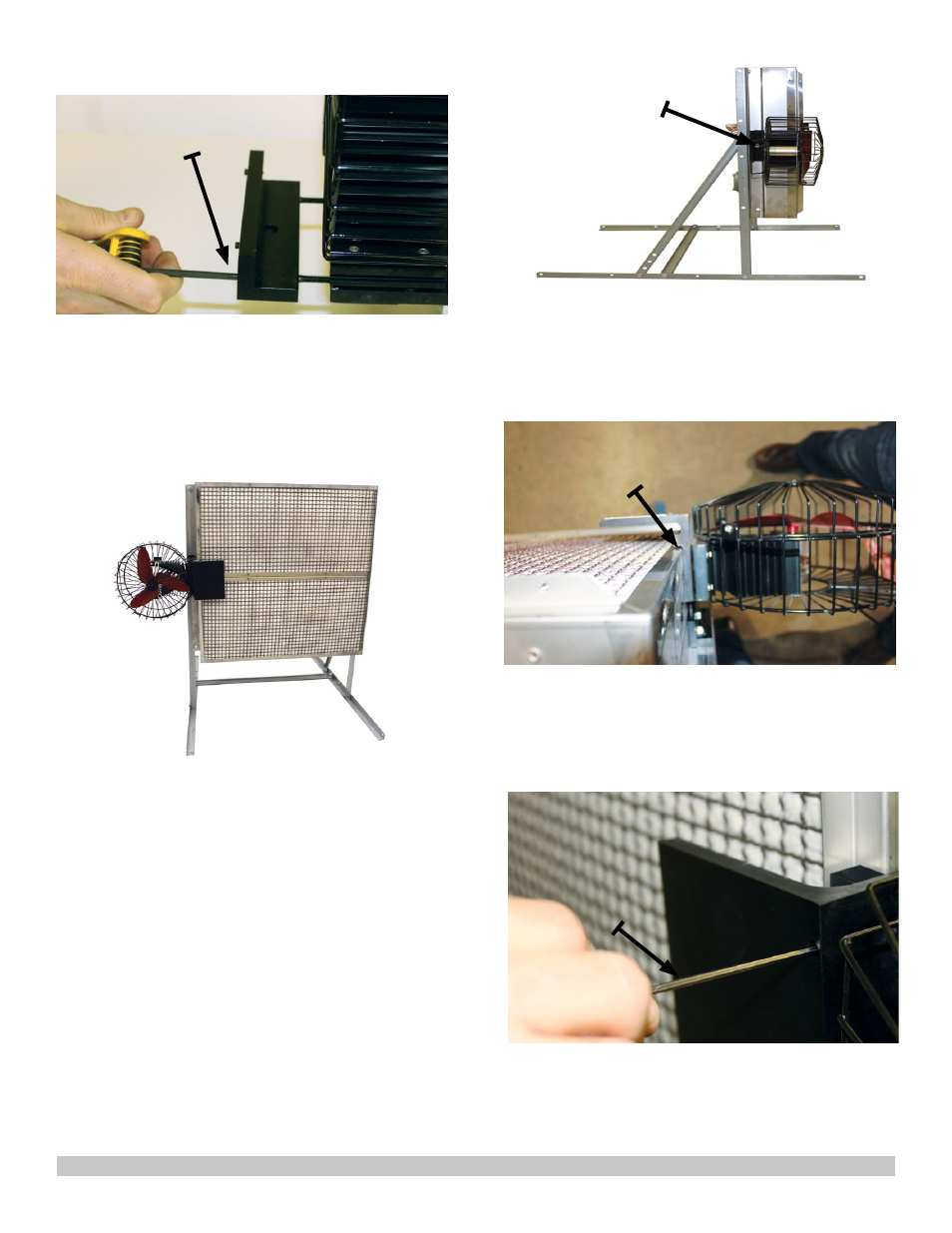

5.3 side Installation -
Cata-dyne™ Z - mounting bracket:
use a 5/32” allen key
(i) remove the 1.5” socket head cap screws
from the back of the stratafan™ using a
5/32” allen key. flip the rear mounted
clamp bracket. install the included 2.5”
long hex head socket cap screws using
a 5/32” allen key. This will leave a 1/2”
(12.7 mm) gap between the clamp and
the stratafan™ unit.
(ii) align the hole in rear clamp bracket with
any available holes on the Z-bracket.
Ensure that the heat collection plate
is fully exposed to the front face of the
heater. if there is no hole available you
may drill out the stainless steel bracket
with a 3/8” bit.
5/16” x 1” hex head bolt
(iii) Hold the stratafan™ in the desired
mounting position and install the
5/16” x 1” hex head bolt through the clamp
and the mounting bracket. secure the
stratafan™ to the heater by tightening
the nut and the lock washer to the bolt.
no space
(iv) check to see that there is no space
between the front clamp and the bezel.
if there is too much space remove the
stratafan™ and tighten the hex head
socket cap screws, drawing the rear
clamp closer to the fan body.
use a 5/32”
allen key
(v) Tighten the front mounted set screws
through the holes in the front heat
collection plate. This should secure the
stratafan™ to the heater itself.
separate Installation and Operation Instructions are available for industrial heating applications.
