WARNING

IMPROPER ORIENTATION OF THE HEATER

COULD AFFECT THE SAFE AND RELIABLE

OPERATION OF THE HEATER.

7.0 THERMOSTAT INSTALLATION

7.1 FACTORY INSTALLED - For shipping

purposes the thermostat well (located at back

of unit) has not been installed.
Position thermostat bulb perpendicular to

housing being careful not to kink the capillary.

Slide well over bulb and screw into place. Make

sure that a minimum 5 threads engagement is

achieved.

7.2 FIELD INSTALLED KIT - Most Norseman

TM

XB units are suitable for field installation of a

thermostat kit with the operator shaft hole on the

front side of the unit and plugged with a socket

head cap screw. If a thermostat is to be field

installed, check to verify that you have been

supplied with the correct thermostat kit. Single

phase heaters use a single pole thermostat

as supplied in kit number XTKW04481. Three

phase heaters use a double pole thermostat

as supplied in kit number XTKW04483. Follow

the instructions supplied with the kit.

8.0 WIRING

8.1 Whenever hazardous materials are present,

ensure that the terminal housing covers are

secure before powering the heater.

8.2 Use supply wires suitable for 221°F (105°C).
8.3 Use approved conduit and conduit seals as

required by the code for hazardous locations.

8.4 To provide maximum protection each

Norseman

TM

XB heater should be fused

individually using the nearest standard fuse

size which is not less than 120% of the

expected line current.

8.5 All heaters come factory prewired and ready

for direct connection to the power supply

leads.
(a) Connect the power leads to terminals

marked L1 and L2 for single phase and L1,

L2 & L3 for three phase heaters as shown in

Figure 9.
(b) Connect the ground wire to the ground

connection located in the heater terminal

housing.

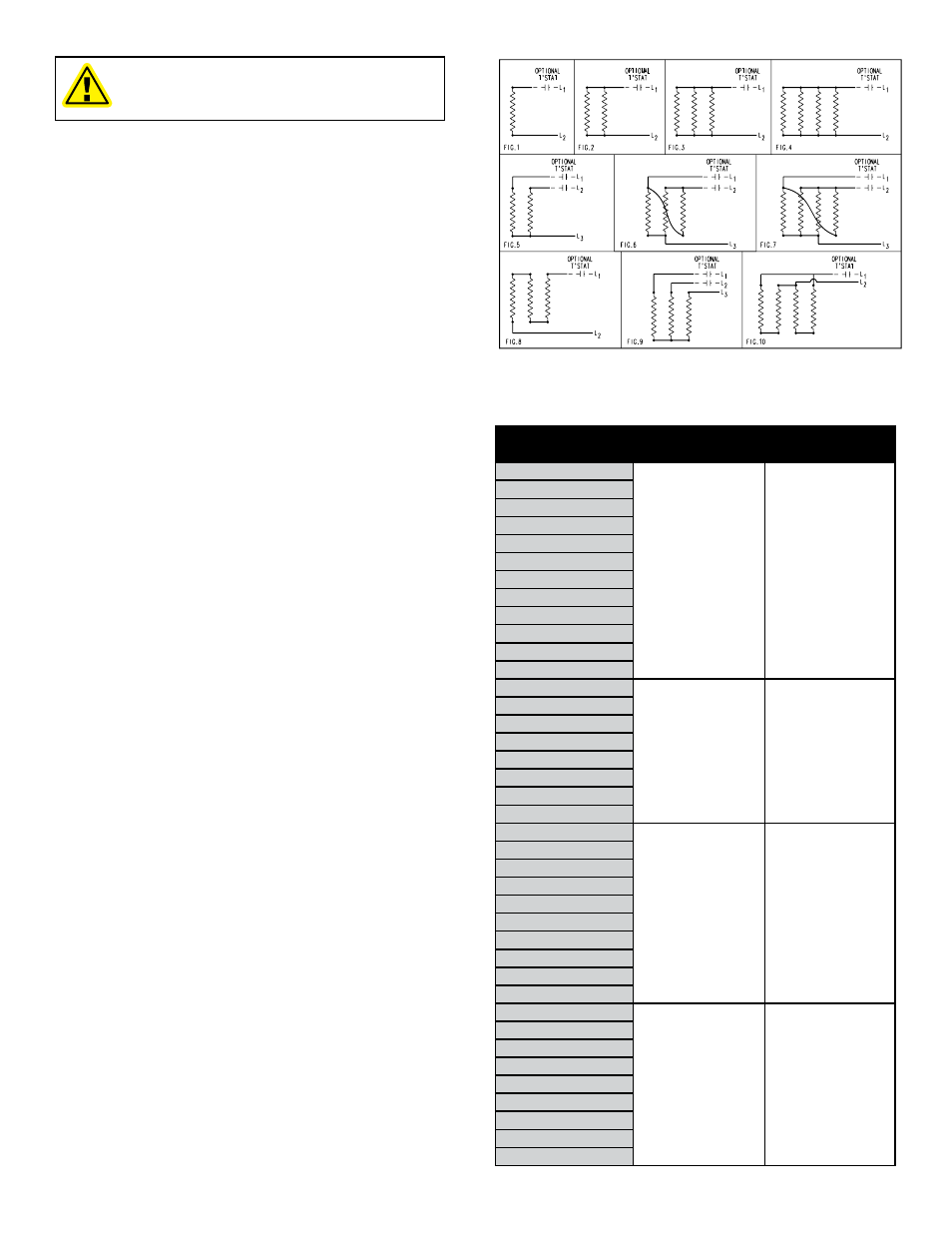

FIGURE 9 - WIRING DIAGRAM

TABLE 3 -

REPLACEMENT THERMOSTATS

Part No.

Wiring Diagram (Figure 9)

XB1-1005T6

Fig. 1

-

XB1-1010T4A
XB1-1017T4A
XB1-1030T3B

XB1-1047T2D
XB1-3047T3B
XB1-3075T2D
XB1-4100T2D

XB1-6020T6

XB1-6045T4A

XB1-6125T2D
XB1-6135T2D
XB2-1075T2D

Fig. 2

Fig. 5

XB2-3150T2D
XB2-4100T3B
XB2-4200T2D

XB2-6040T6

XB2-6085T4A
XB2-6150T3B

XB2-6250T2D

XB3-1100T2D

Fig. 3

(Except

XB3-4150T3B 600V

& XB3-6125T4A 600V

use Fig. 8)

Fig. 6

(Except

XB3-4150T3B 600V

& XB3-6125T4A

600V use Fig. 9)

XB3-1125T2D
XB3-3100T3B

XB3-3200T2D
XB3-4150T3B
XB3-4300T2D

XB3-6060T6

XB3-6125T4A
XB3-6225T3B

XB3-6375T2D

XB4-1150T2D

Fig. 4 (Except XB4-

6160T4A 600V &

XB3-3250T2D 600V

use Fig. 10)

Fig. 7

XB4-3250T2D
XB4-4225T3B
XB4-4375T2D

XB4-6080T6

XB4-6160T4A
XB4-6300T3B

XB4-6450T2D
XB4-6500T2D
