FAMILIAR WITH ALL PART NAMES LISTED
BEFORE PROCEEDING WITH THE REST OF
THE INSTRUCTIONS IN THIS MANUAL.
S
ERIAL
N
UMBER
The serial number is located on the bottom of the receiv-
er, at the front, close to where it contacts the rear of the
forearm. Record the serial number in this booklet for
future reference.
A
MMUNITION
Your Winchester Model 9410 is designed to shoot modern
factory shotgun shells only. It is chambered in .410 bore
with a 2
1
⁄
2
" chamber length.
The gauge of your new Model 9410 is inscribed on the
barrel near the receiver. Use only ammunition for which
your Model 9410 is chambered — as indicated on the
barrel — to prevent excessive pressure and possible serious
injury. Please observe these important specifications and
restrictions regarding your new Model 9410 shotgun.
• Factory .410 bore shotgun shells only.
• Chambered for 2
1
⁄
2
" shells only.
Manual
hammer
stop/safety
Pushed
forward:
“off safe”
Pushed to
rear:
“on safe”
Rebounding
hammer

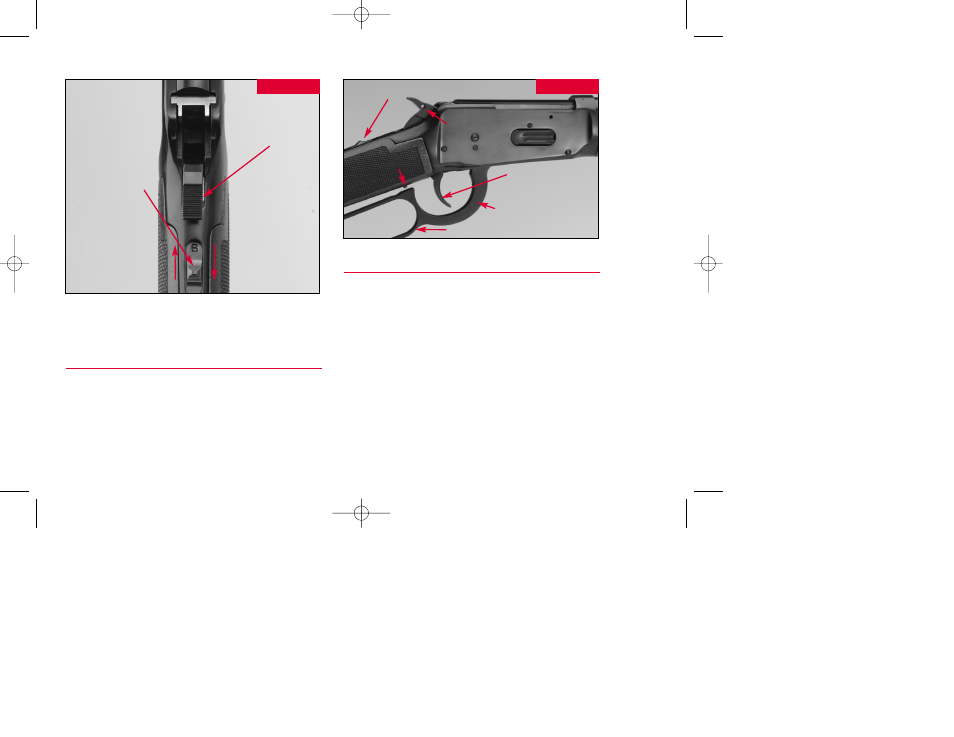

FIGURE 1B
Finger lever
Trigger guard
Trigger
Rebounding
hammer
Manual hammer stop/safety
Trigger stop
FIGURE 1C
