All features are explained in detail later in this manual.
Some versions may vary slightly in appearance, but basic
operation and function remain the same for all models.
T ERMINOLOGY AND D ESCRIPTIONS
Descriptions in this manual generally refer to the gun in
the horizontal position. That is, in the normal firing
position. For example, the muzzle is forward or front; the
buttstock is rearward or rear; the trigger is downward or
underneath; the sight is upward or on top. For general
parts terminology, refer to Figure 1A.
The Winchester Model 9410 is also shown in some detail,
focussing on the hammer and lever mechanisms
(Figures 1B and 1C). You must be familiar with these
part names in order to follow instructions contained
in this book. Figure 1D covers the general features
and benefits of the Model 9410 design. (Model 9410
Traditional shown above, other models will
differ slightly.)
Throughout this manual the “action” refers to the
mechanism of this shotgun which loads and secures the
shell in the chamber.
IMPORTANT: REFER TO FIGURE 1A FOR
GENERAL PART DESCRIPTIONS REGARDING
YOUR NEW SHOTGUN. YOU MUST BECOME
Manual hammer stop/safety
Loading port
Finger lever
Trigger
Forearm
Muzzle
Ejection port Rebounding hammer
Barrel bands
Trigger
guard
Rear sight
Front sight
Magazine tube
Butt plate
Buttstock

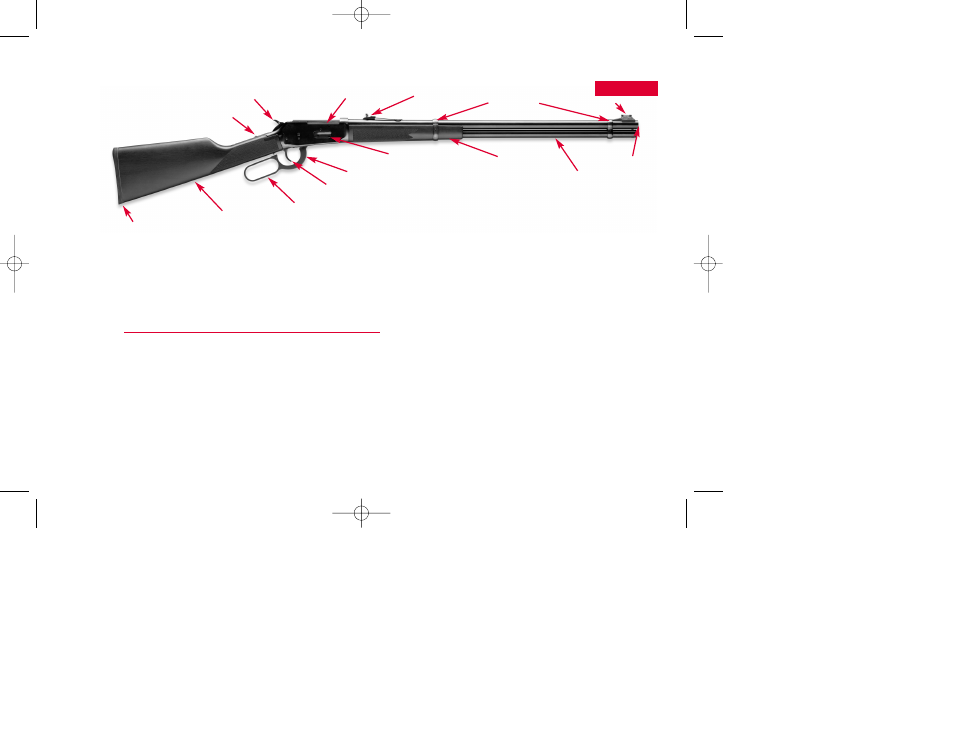

FIGURE 1A
