6. Replace the magazine end cap, pushing the spring back
down into the magazine tube.
7. Replace the magazine cap retaining screw.
A DAPTER I NSTALLATION M ODEL 9410 P ACKER —
1. Place the safety in the “on safe” position and fully
unload your Model 9410.
2. Remove the two screws on the front of forearm cap
using a standard screwdriver.
3. Pass a small screwdriver through the hole in the sling
post found on the end of the magazine tube. Turn the post
counter clockwise to loosen the post (Figure 29).
4. Slide forearm cap forward on magazine tube. Carefully
remove the magazine end cap from the magazine by
tilting the magazine tube away from the barrel enough
to clear the sling post mounting stud on the barrel (Figure
30).
Remember, magazine is under spring load.
5. The spring will rise out of the magazine tube. Place
the three shot adapter inside the magazine spring coils
with the flared end of the adapter resting on the top coil
(Figure 28).
6. Replace magazine end cap, pushing the spring and
adapter back down into the magazine tube (Figure 31).
Be sure to install the end cap with the flat spot around the
sling post mounting stud hole facing away from the barrel.
7. Before tilting the magazine back in place on the sling
34

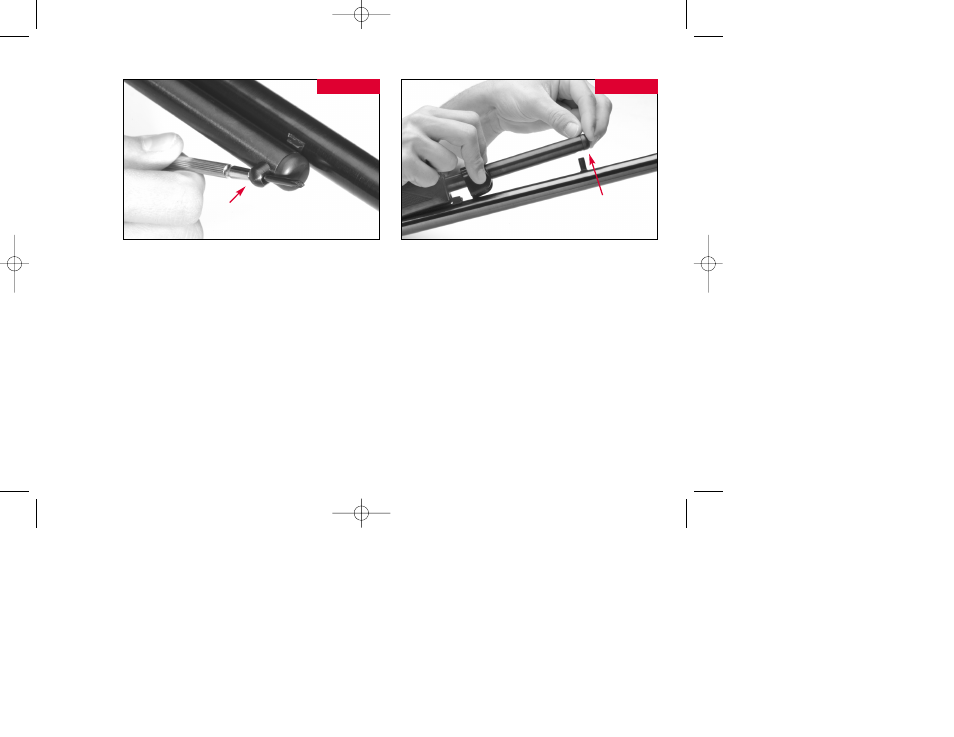

Turn sling swivel stud
counterclockwise to loosen
FIGURE 29
Tilt magazine tube away
from barrel while keeping
pressure on end cap
FIGURE 30
