R E A C H F R E E I D
Document Number: RFID1002 6
Document Name: Unitec RFID Field Retrofit Installation Guide for WSII

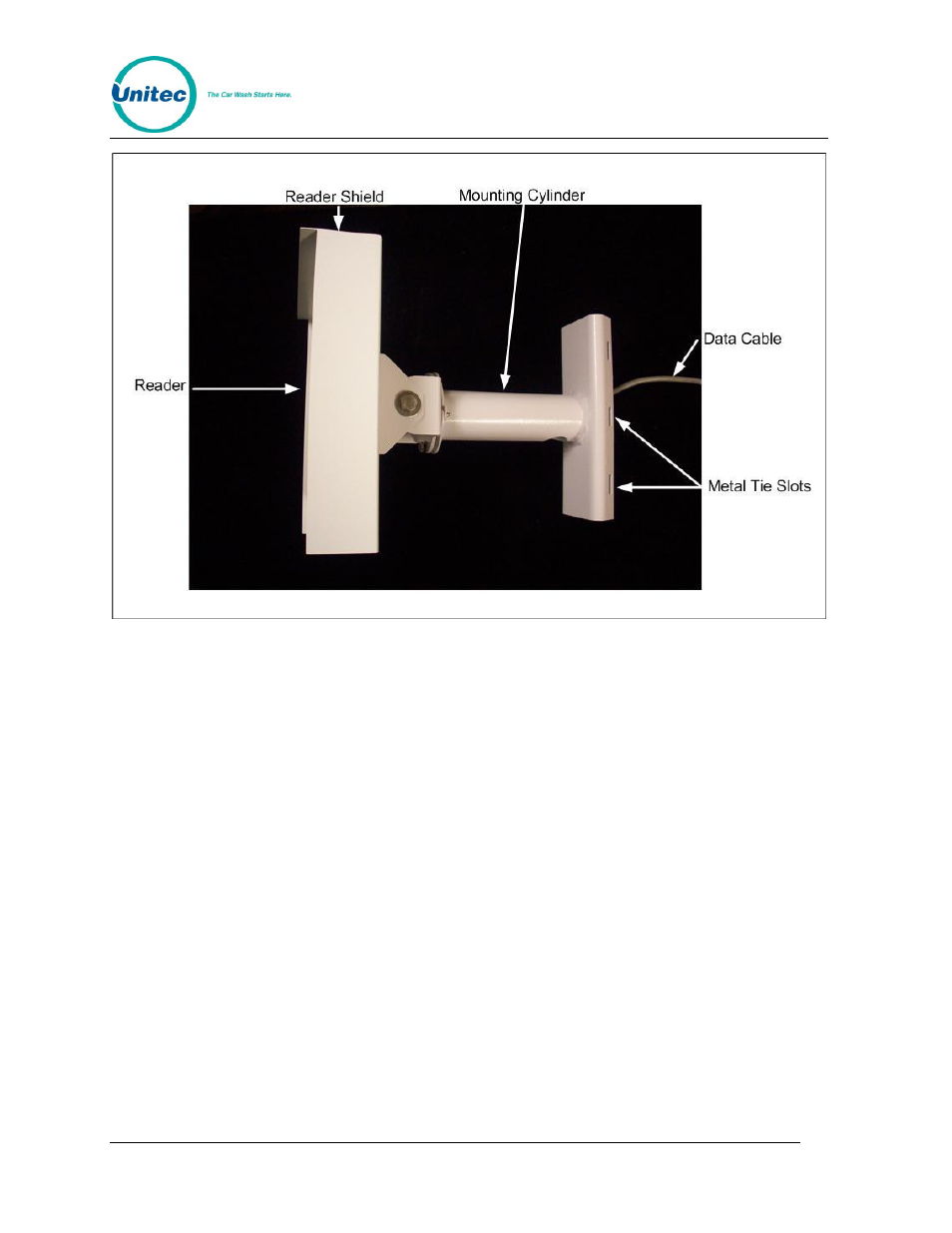

Figure 4. Reader with Mounting Assembly
1. Attach the mounting assembly to the reade
r’s metal plate using 1/4”-20 screws, if
applicable for your installtion.
2. If you are mounting the reader to a pole, leave the mounting assembly fully
assembled and use the supplied metal ties to secure the reader to the pole
approximately 7 feet above the lane.
Note: If you are mounting the reader on to something other than a pole, you will need
to order another style of mount.
