S E N T I N E L
Document Number: SENT1002
79
Document Title:
Sentinel Owner Manual
Appendix A : Talaris Dual Cassette Bill Dispenser
Maintenance
The dual cassette bill dispenser allows you to dispense cash from the Sentinel as change. It dispenses $1
and $5 bills from two cassettes. The following figure shows the bill dispenser with the primary
components labeled.

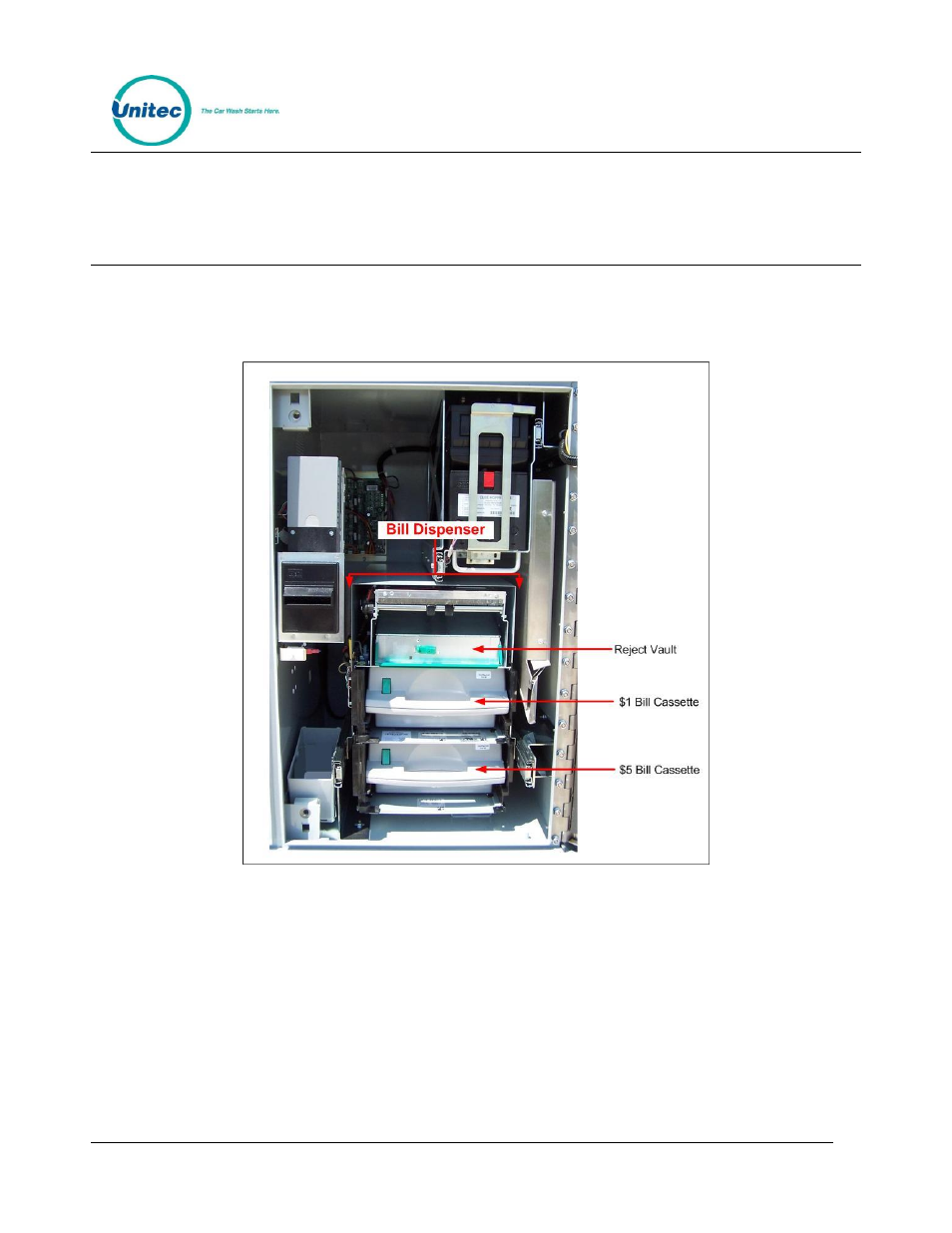

Figure 67. Bill Dispenser Parts
Removing Bill Cassettes
IMPORTANT: Before removing the cassette it must be unlocked on the Cash maintenance screens.
The cassettes can be removed in any order. All cassettes do not have to be released and closed to remove
one cassette.
