Connecting the NBR to the Network
NBR-SERIES Installation Guide Page 3-23
b. Attach the thin-net segment to one (1) of the female connectors on
the tee-connector.
c. Attach another thin-coax segment or a terminator to the other
female connector on the tee-connector.

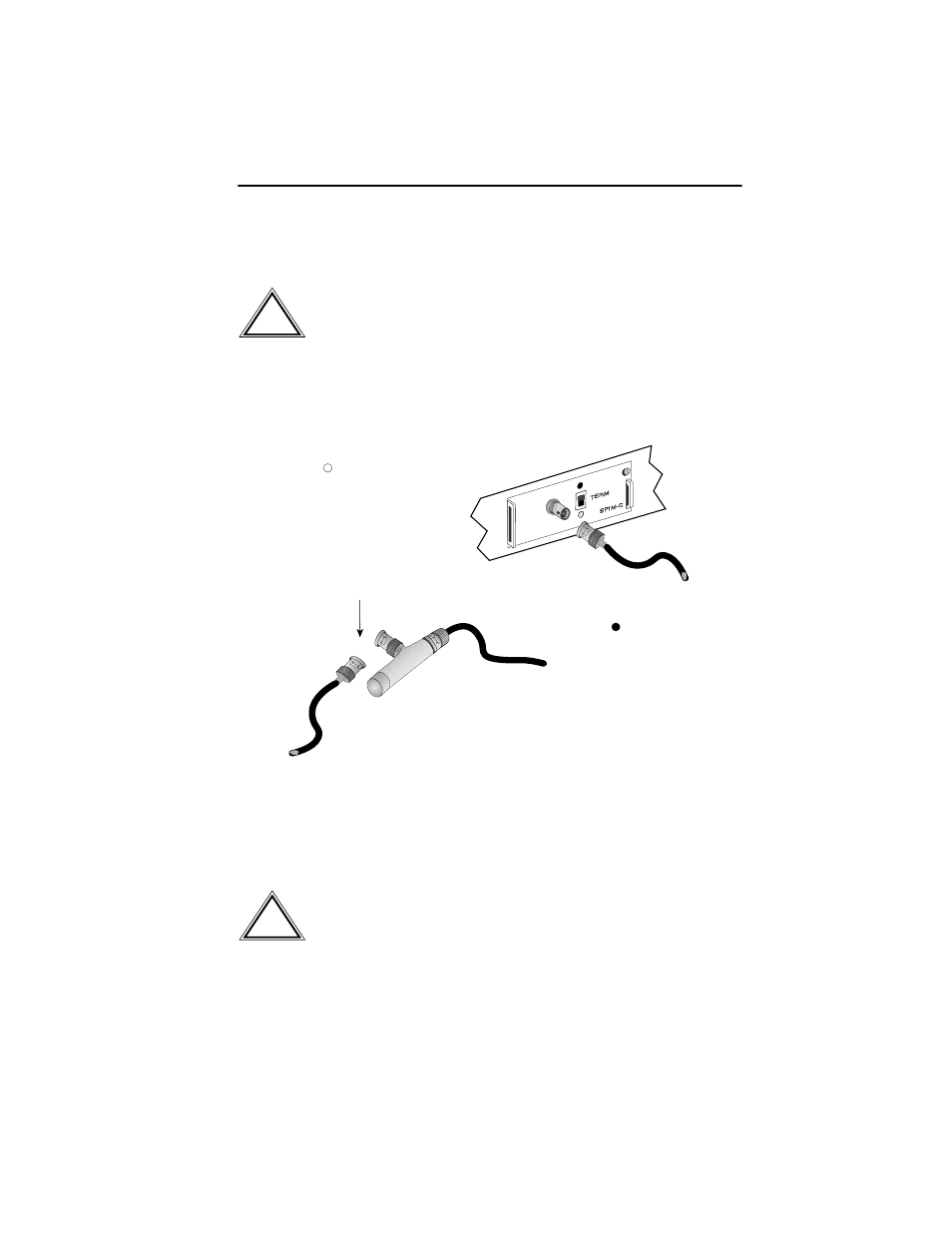

Figure 3-16 The EPIM-C
3.5.5 Connecting an AUI Cable to an EPIM-A
Failure to terminate each tee-connector segment may result in
improper segment operation.
Ensure that the external transceiver to which you connect the
EPIM-A does not have the signal quality error (SQE or
“heartbeat”) test function enabled. The EPIM does not operate
if the transceiver has the SQE test function enabled. Refer to
the applicable transceiver manual for additional information.
!
CAUTION
Attach thin-net segment directly to BNC
connector when internal termination
switch is set to on ( ).
When internal termination switch
is set to off ( ):
Connect BNC tee-connector to port.
Attach a terminator or terminated
thin-net segment to one female
connector of tee-connector.
Connect a terminated thin-net
segment to other female connector
of tee-connector.
1092_18
!
CAUTION
