Figure 3-2 switch, brim, and simm locations – Cabletron Systems NBR-420 User Manual
Page 21
Chapter 3: Installation
Page 3-4
NBR-SERIES Installation Guide

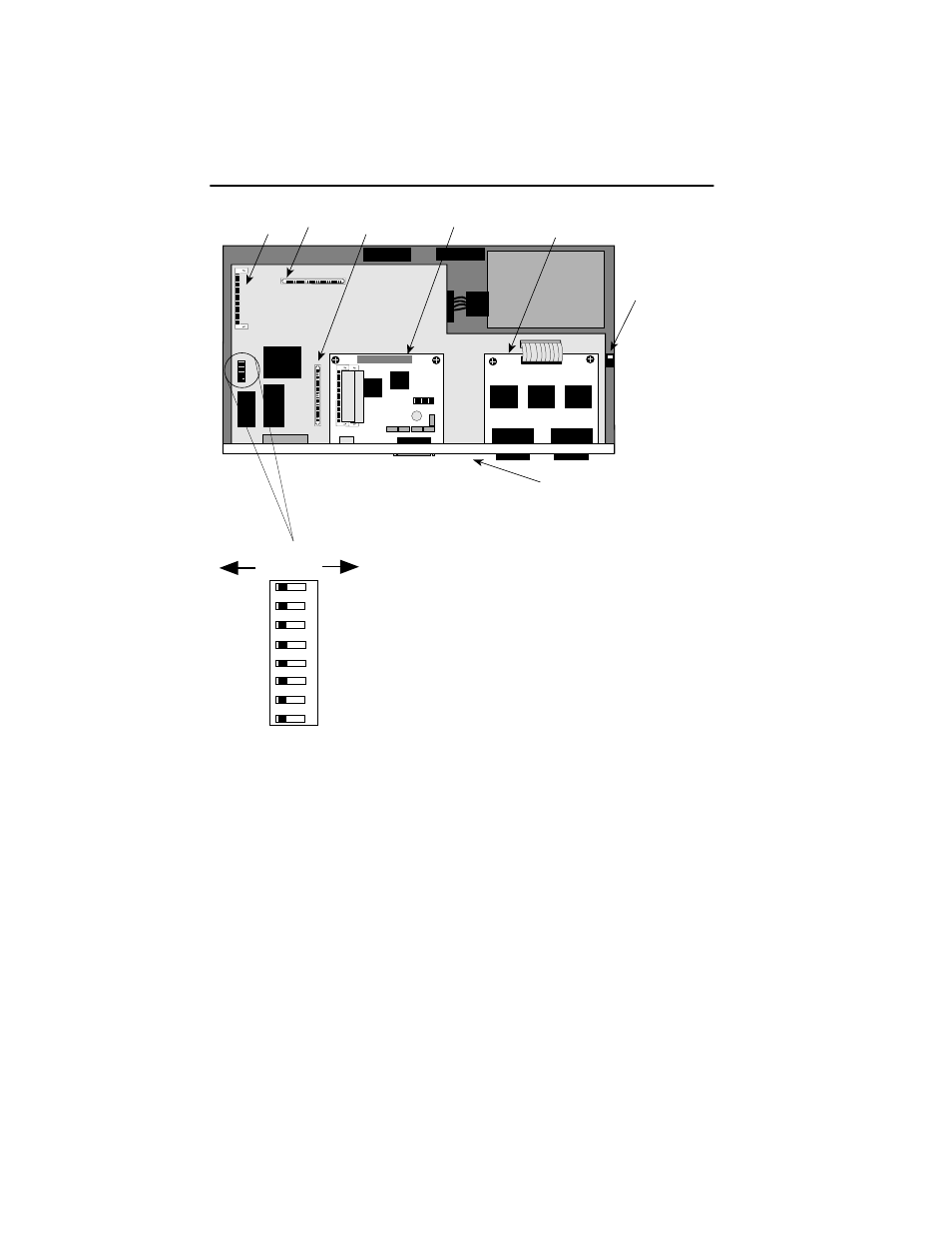

Figure 3-2
Switch, BRIM, and SIMM Locations
NBR FRONT PANEL
LDRAM
SDRAM
BRIM (PORT F)
BRIM (PORT E)
NVRAM
RESET SWITCH
1
2
3
4
5
6
7
8
MODE SWITCH BANK
OFF ON
Cabletron Use Only
Cabletron Use Only
Cabletron Use Only
Cabletron Use Only
Baud Rate Default Switch (Off=9600, On=2400)
Cabletron Use Only
Password Default Switch (This switch clears passwords
stored in NVRAM.)
Forced Download Switch (This switch forces image file downloads.)
FLASH
1092_07
