Connecting the NBR to the Power Source
NBR-SERIES Installation Guide Page 3-15
3.3.3 Free-Standing Installation
For a free-standing shelf or tabletop installation, locate the NBR within
7 feet of its power source and with an unrestricted free surface area
21 inches wide, 18 inches deep and 6 inches high, as shown in
Figure 3-10.

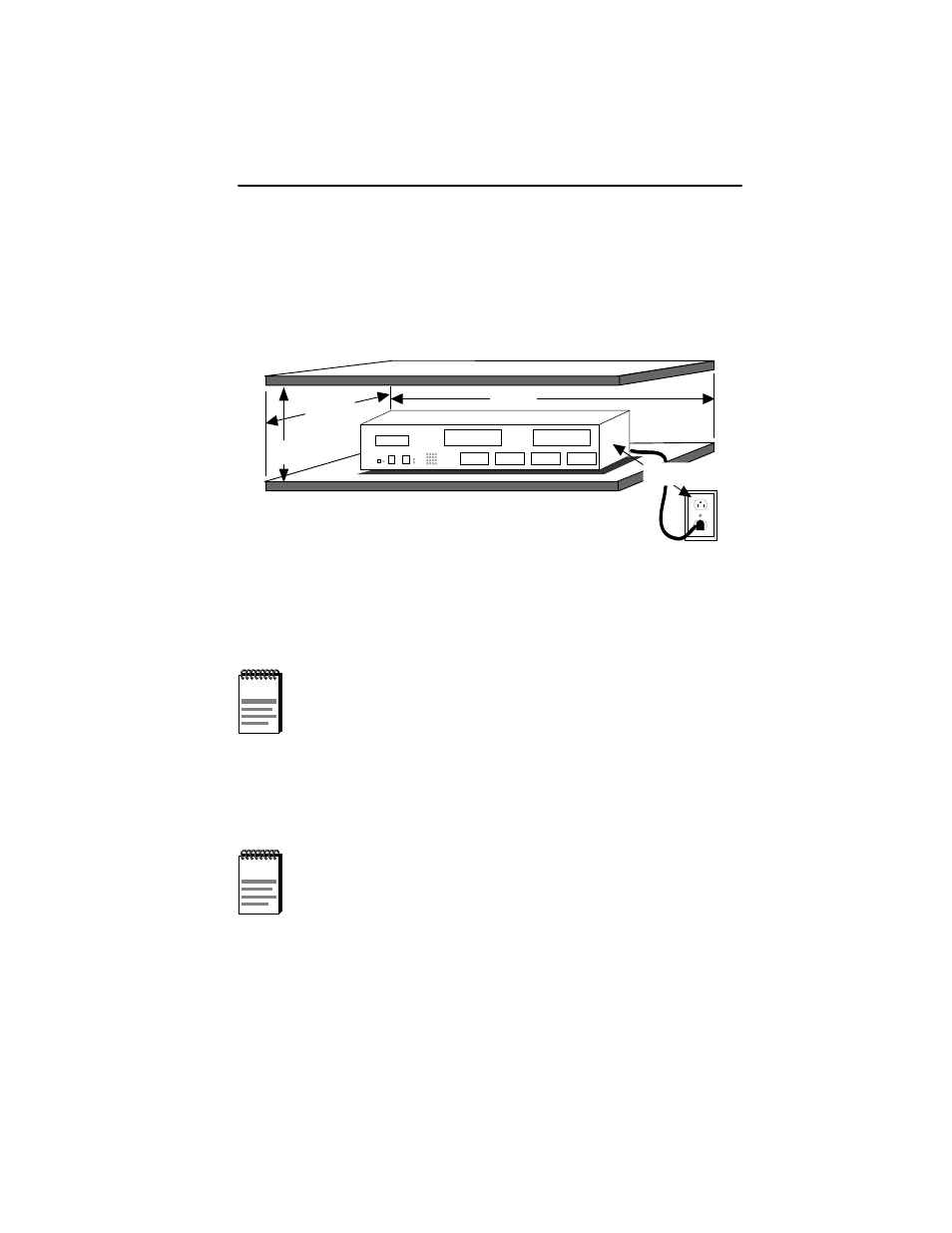

Figure 3-10 Free-Standing Installation
3.4 CONNECTING THE NBR TO THE POWER SOURCE
Connect the NBR to the power source as follows:
1. Plug the power cord into a grounded wall outlet.
NOTE
The NBR has a universal power supply. This allows you to
connect the NBR to power sources from 100 Vac to 125 Vac or
200 Vac to 250 Vac, 50/60 Hz.
NOTE
It may take several minutes for the NBR to boot up. While
booting, the NBR displays boot-up diagnostics through Local
Management. Refer to the
NBR-220, NBR-420, and NBR-620
Local Management Guide for additional information on how to
connect and configure a Local Management console.
21 IN.
6 IN.
18 IN.
NBR-620 MULTI PORT BRIDGE ROUTER WITH LANVIEW ®
PORT D PORT C PORT B PORT A
PORT F PORT E
7 FT.
