Chapter 3: Installation
Page 3-14 NBR-SERIES Installation Guide
3.3.2 Rack Mounting the NBR
Install the NBR in a 19-inch rack as follows:
1. Remove four cover screws (two from each side) located along the
front edges of each side of the NBR. See Figure 3-8.
2. Using the four 6-32 x 3/8-inch replacement flathead screws, attach the
rack mounting brackets to each end of the NBR.

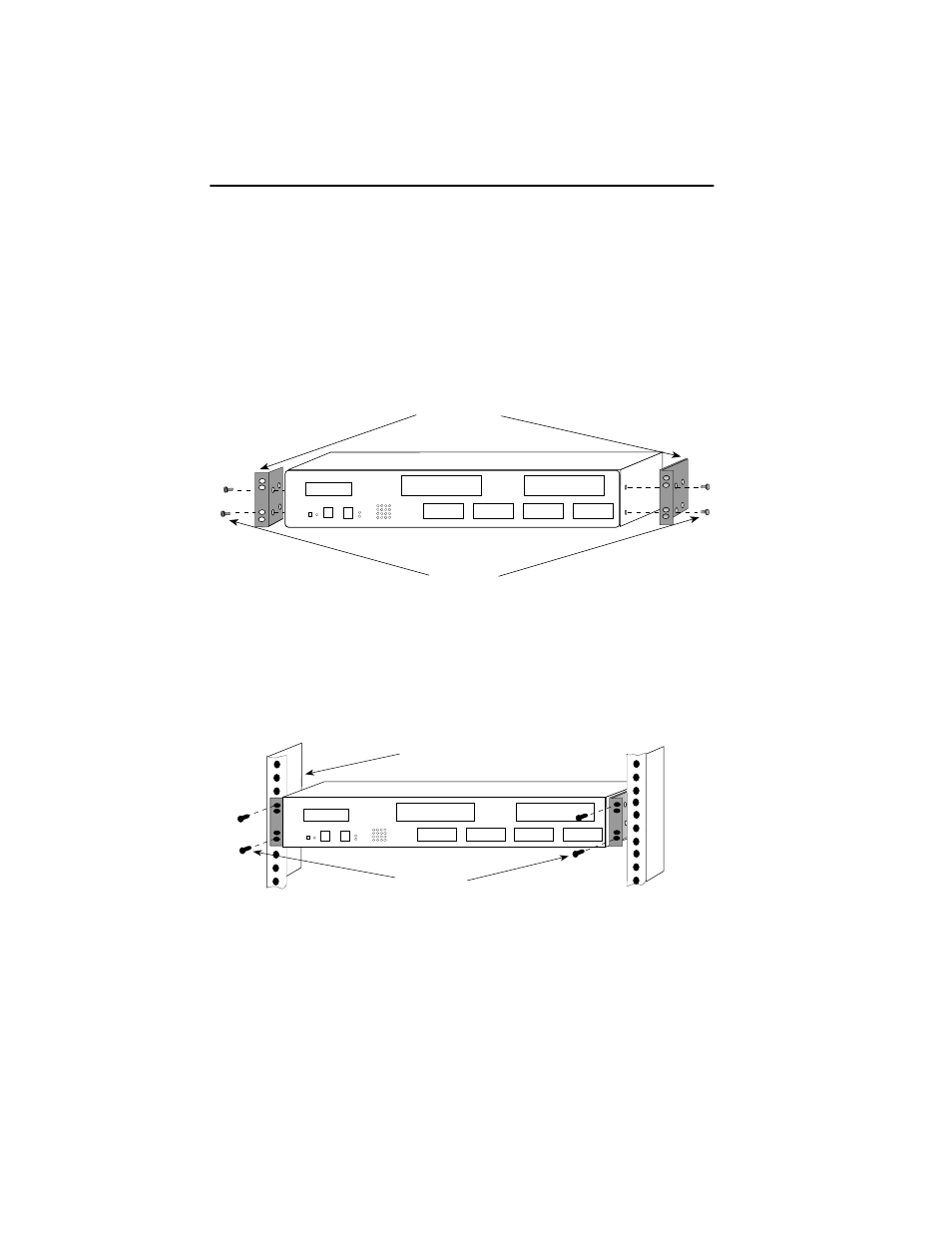

Figure 3-8 Rackmount Brackets Installation
3. With the mounting brackets attached, position the NBR between the
vertical frame members of the 19-inch rack and fasten it securely with
the mounting screws. See Figure 3-9.
Figure 3-9 Installing the NBR in the Rack
Screws (4)
Rack Mounting
Brackets (2)
NBR-620 MULTI PORT BRIDGE ROUTER WITH LANVIEW ®
PORT D PORT C PORT B PORT A
PORT F PORT E
1092_02
Screws (4)
19-Inch Rack
NBR-620 MULTI PORT BRIDGE ROUTER WITH LANVIEW ®
PORT D PORT C PORT B PORT A
PORT F PORT E
1092_13
