Installing the NBR
NBR-SERIES Installation Guide Page 3-13
• If a shelving unit is to be used, it must be able to support 30 pounds
(13.6 kg) of static weight.
• The temperature for the selected location must be maintained between
5
°
and 40
°
C, and less than 10
°
C per hour temperature change.
3.3.1 Attaching the Strain-Relief Bracket
Attach the strain-relief bracket to the front of the NBR as follows:
1. Remove the strain-relief bracket and four 8-32 x 3/8-inch screws from
the NBR installation kit.
2. Attach the strain-relief bracket to the bottom of the NBR as shown in
Figure 3-7.

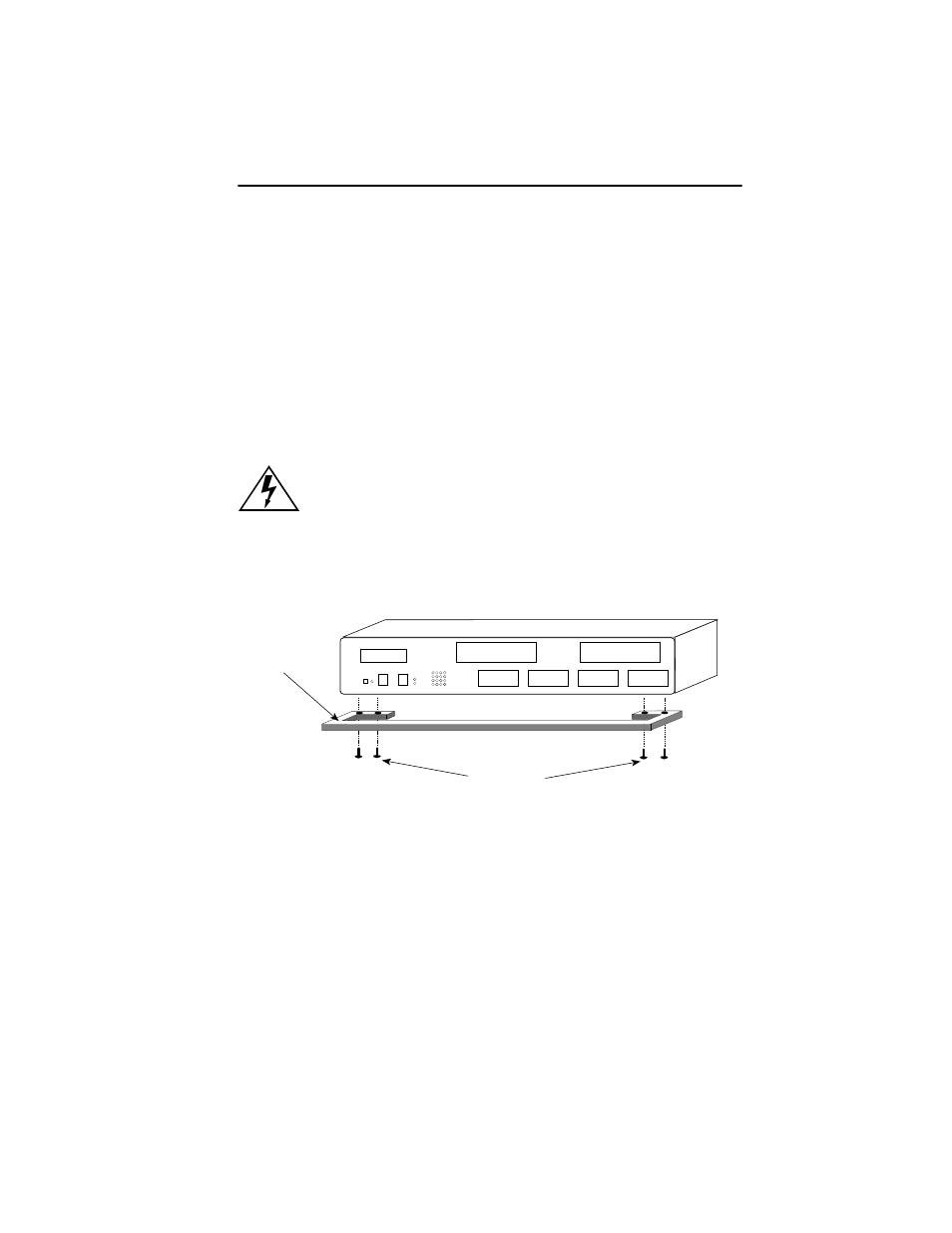

Figure 3-7 Attaching the Strain-Relief Bracket
Use only the appropriate screws to attach the strain relief. Use
of longer screws may cause damage to the unit or electrical
shock.
NBR-620 MULTI PORT BRIDGE ROUTER WITH LANVIEW ®
PORT D PORT C PORT B PORT A
PORT F PORT E
Strain-Relief
Screws (4)
Strain-Relief
Bracket
1092_12
