Chapter 3: Installation
Page 3-12 NBR-SERIES Installation Guide

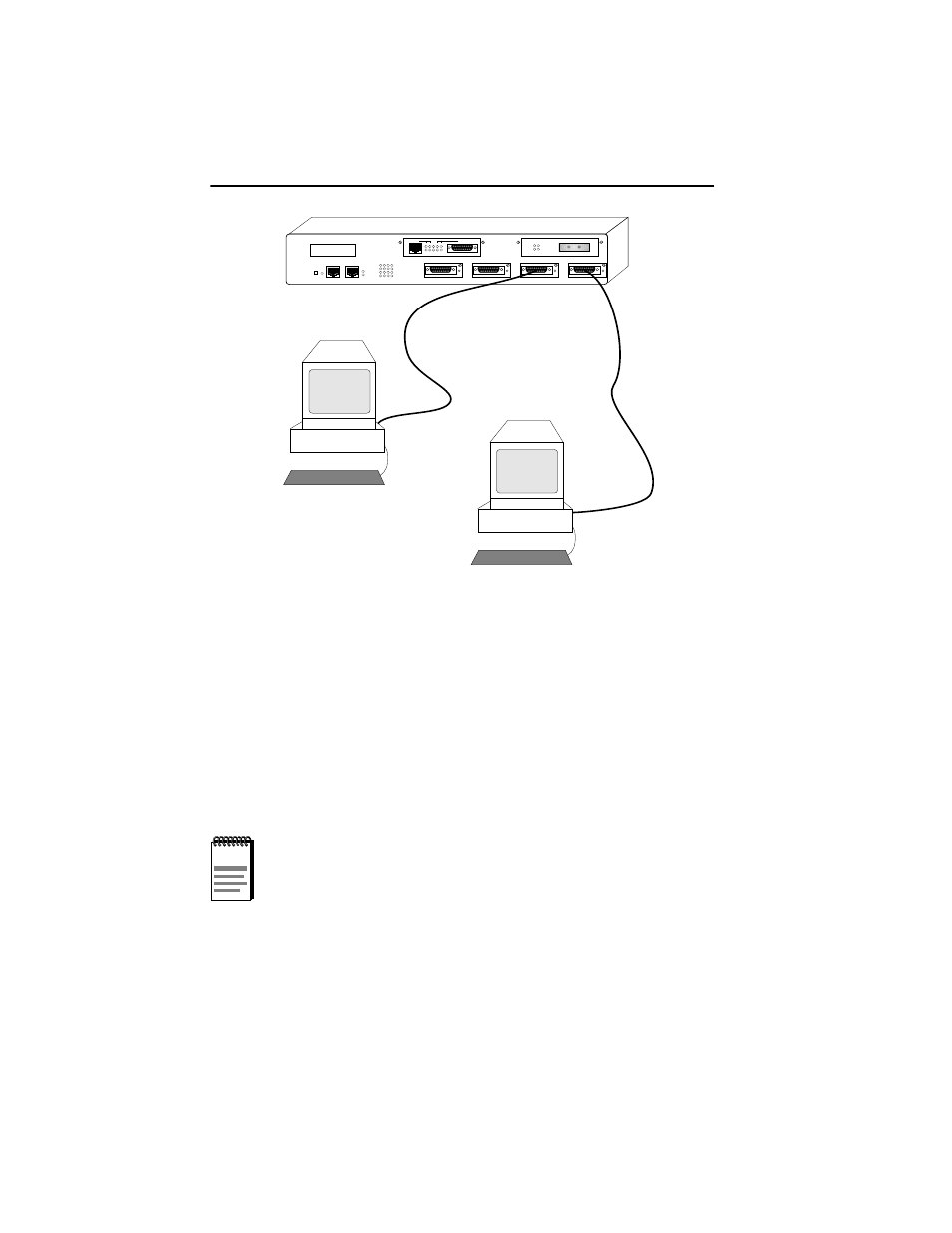

Figure 3-6 Installation Check-out
3.3 INSTALLING THE NBR
You can install the NBR on any horizontal surface. In addition, Cabletron
Systems provides an accessory kit with the NBR that includes hardware
to install the NBR in a 19-inch rack. Select one of the following
subsections and perform the steps that are applicable for your installation.
If you decide not to install the NBR in a 19-inch rack, the following
requirements must be met when selecting a location:
• An unrestricted free surface area at least 21 inches wide, 18 inches
deep and 6 inches high is needed.
• A single phase, grounded power receptacle must be located within
7 feet of the site.
NOTE
Ensure that you select a location within reach of the network
cabling.
