Chapter 3: Installation
Page 3-10 NBR-SERIES Installation Guide
Install an EPIM as follows:
1. Remove the coverplate or the EPIM (whichever applies).
2. Slide your new EPIM into place, making sure the connectors on the
rear of the module and inside the HUB attach properly.
3. Fasten the EPIM to the NBR using the mounting screws.

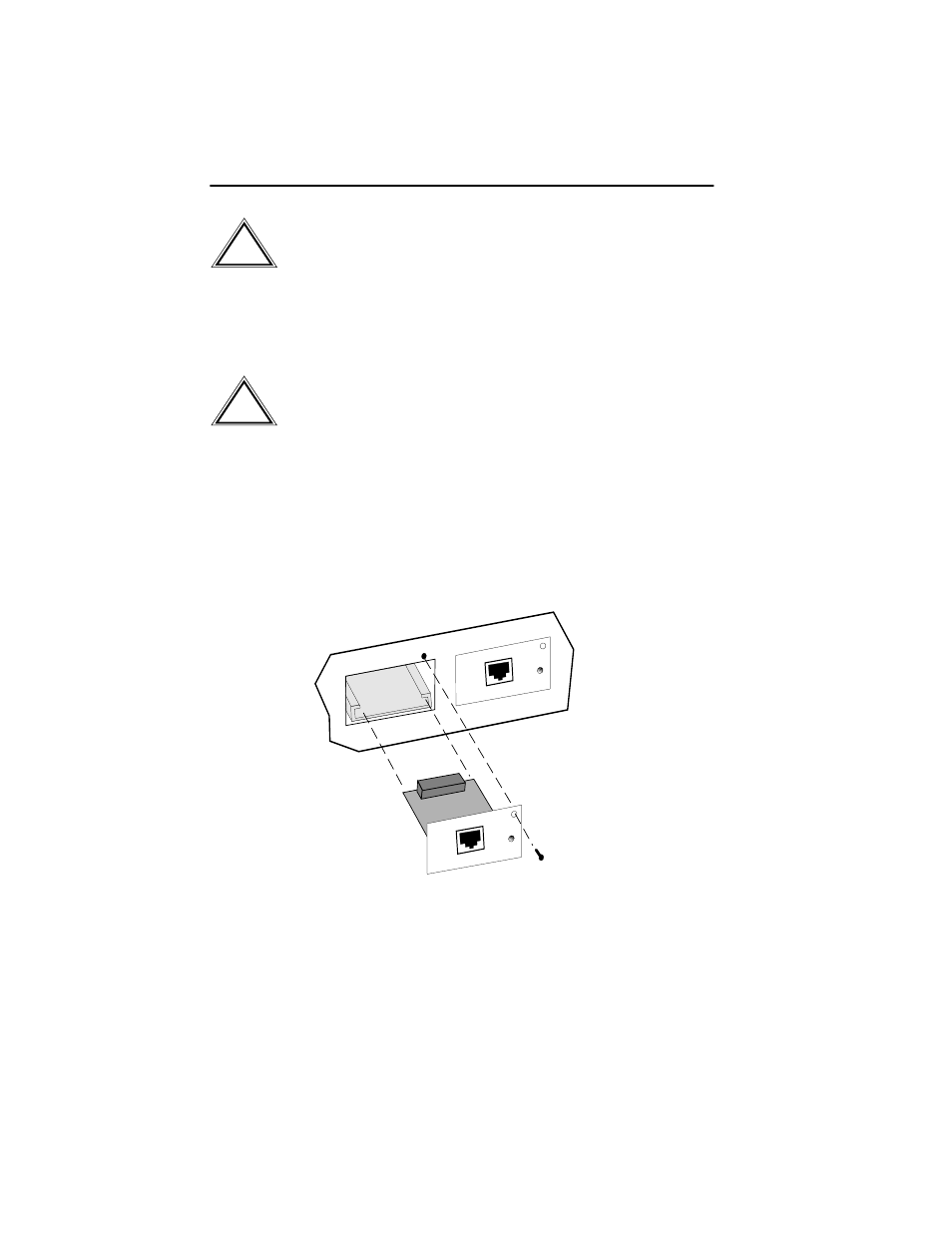

Figure 3-5 Installing an EPIM
3.2.6 Adding/Replacing BRIMs
To add or replace Bridge/Router Interface Modules (BRIMs) in the
NBR-420 and NBR-620, refer to the applicable BRIM User’s Guide.
The components and boards associated with the NBR are
sensitive to static discharges. Be sure to use an antistatic wrist
strap and observe all static precautions during this procedure.
Failure to do so could result in damage to the NBR.
!
C AUT IO N
When removing an EPIM, make sure to pull the module straight
out. Failure to do so could result in damage to the connector.
!
CAUTION
EPIM-T
LNK
EPIM-T
LNK
Port B
Port A
1092_10
