TerraLUX TLM-R16C Product Specification (05/03/2013) Subject to change without notice 5

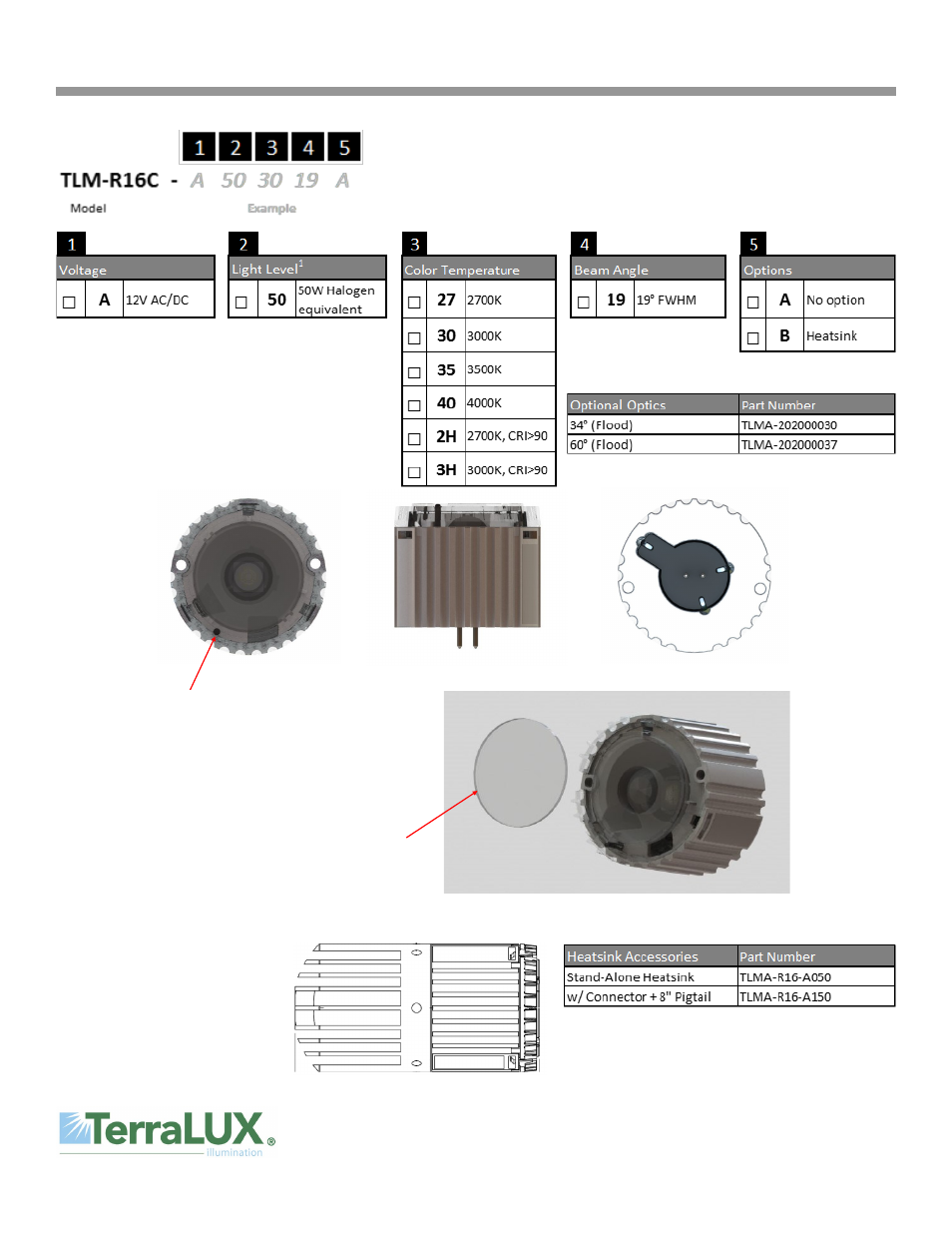

PRODUCT SELECTION & PART NUMBER GUIDE
Engine
(See TLMA-R16 Heat Sink Product Specification for details)
Push button enables switching between the
four lumen output modes (50W, 35W, 20W
equivalent and 25%). Setting selected is stored
in memory and device automatically switches
on to that mode after power has been cycled.
Three distributions are offered : 19° (Narrow),
34° (Flood—optional lens) and 60° (Wide
Flood—optional lens). Distribution can easily
be changed on-site by placing the appropriate
lens.
Engine with optional heat sink
(needed if light engine not thermally
integrated in a fixture)
Engine
1) Indicates the typical level of light output in “high”
mode as compared to a Halogen source.
