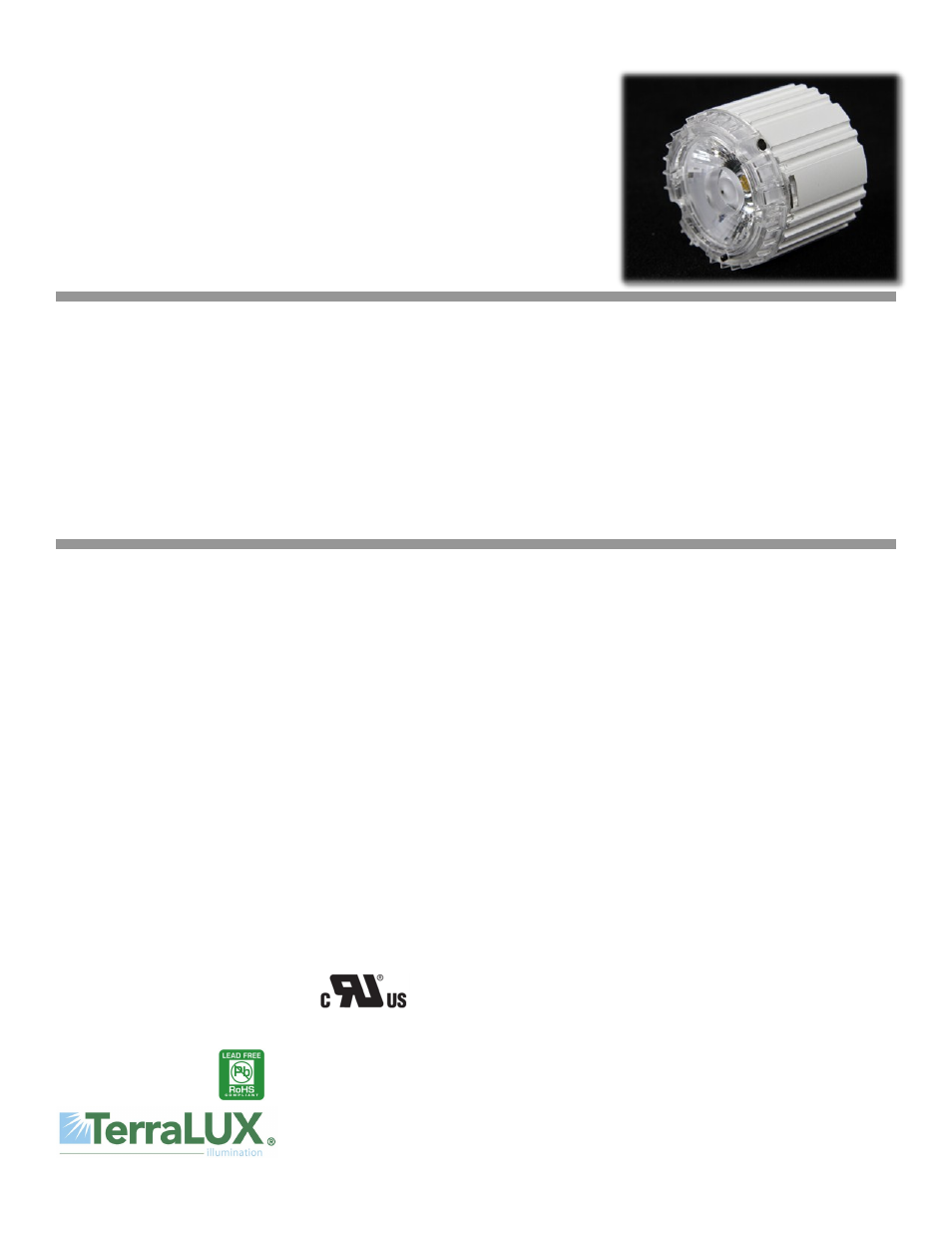

TERRALUX TLM-R16C User Manual
Tlm-r16c, Low voltage led engine

www.terraluxillumination.com
TerraLUX TLM-R16C Product Specification (05/03/2013)
Subject to change without notice
1
The TerraLUX TLM-R16C LED Engine makes it possible to adapt existing spot fixtures and luminaires with minimal de-
sign effort and the lowest possible LED system cost. An integrated microprocessor-based control system delivers key
features such as LEDSense® closed-loop thermal control that maximizes light output while assuring long-term lumen
maintenance. Integrated Dynamic Transformer Recognition™ (DTR™) simplifies design efforts and installations, and
allows the use of standard cost-effective magnetic or electronic halogen transformers and phase-dimmers. Dynamic
Bleed™ optimizes efficiency for each specific combination dimmer/transformer. The result is superior light levels &
light quality and the reliability demanded by lighting designers and commercial applications— all in a package that can
quickly be integrated into existing product lines.
Equivalent to 50W MR-16 halogen bulb
>= 50 lm/W (12V AC)
Compliant to MR-16 diameter and 2-pin G5.3 connection.
Superior Light Output and thermal performance compared to LED Replacement Lamps
4 lighting levels (equivalent to 50W, 35W and 20W plus a lower mode @25%) easy to select via a push button
4 available color temperatures : 2700K, 3000K, 3500K and 4000K with CRI>80 (CRI>90 available as an option)
3 different distributions (19°, 34° and 60°), field replaceable.
Dimmable with standard electronic low-voltage phase-dimmers*
Compatible with low-voltage magnetic & electronic transformers*
Patented LEDSense® Thermal Management simplifies integration and ensures reliability and lumen maintenance
12V AC or DC input in one flexible unit
L70 = 60,000 hours
5-year warranty
UL Recognized Component (cURus)
FCC Compliant
RoHS Compliant
Pb Free
INTRODUCTION
FEATURES
TLM-R16C
Low Voltage LED Engine
*See Transformer and Dimmer Compatibility List
