5. OPEN FIXTURES J-BOX COVER AND DISCONNECT MAINS WIRING TO BALLAST. CUT ALL
BALLAST WIRES AT J-BOX AND SET BALLAST WITH J-BOX COVER ASIDE FOR REASSEMBLY.
NOTE: THE FOLLOWING STEPS ILLUSTRATE THE DUAL DOWNLIGHT RETROFIT MODULE
(MODELS TLK-DDL-B/D04XX AND TLK-DRL7H-B/D04XX). THE INSTALLATION STEPS ARE
IDENTICAL FOR THE SINGLE DOWNLIGHT
RETROFIT
MODULE (MODELS TLK-SDL-B/D04XX AND TLK-DLR6H-
B/D04XX), EXCEPT THAT ONLY ONE LED LIGHT MODULE IS
PROVIDED.

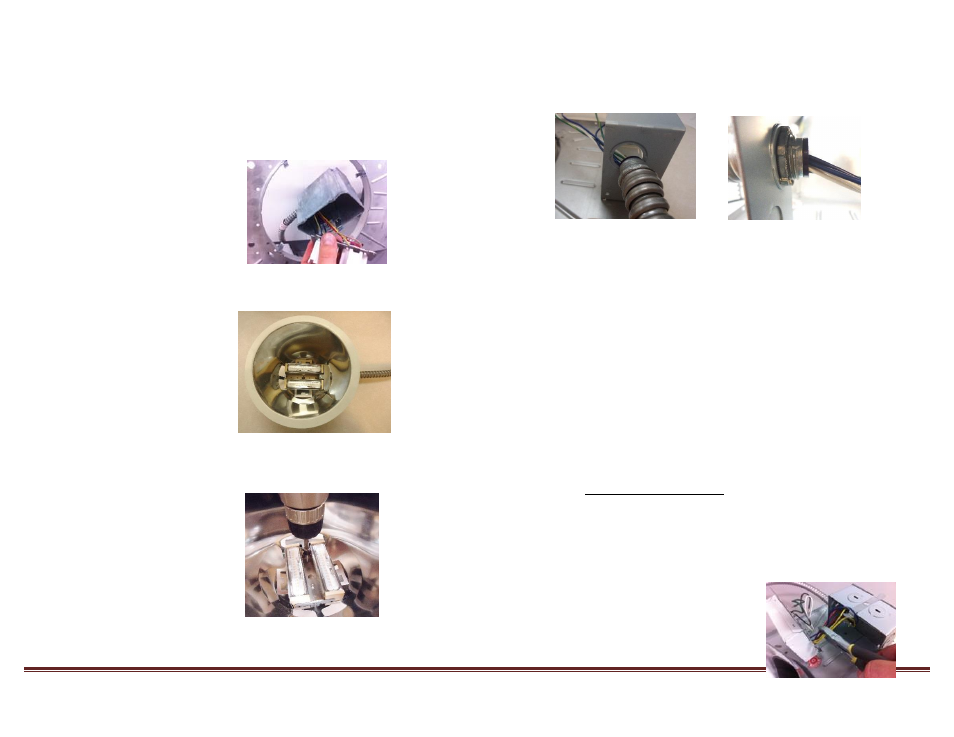

6. REMOVE BALLAST WIRES FROM CONDUIT BY
PULLING SOCKETS AND PLATE. DISCARD
SOCKETS, SOCKET WIRES AND PLATE.
7. ROUTE LED RETROFIT CONDUIT THROUGH
SOCKET CUP OPENING ON SIDE OF
REFLECTOR/TRIM RING.
8. USE INCLUDED SCREWS TO MOUNT THE LED LIGHT
MODULE INTO THE REFLECTOR/TRIM RING.
9. ROUTE
LED
RETROFIT
CONDUIT
THROUGH TRIM RING OPENING IN FIXTURE.
10. REMOVE A ½” KNOCK-OUT COVER FROM FIXURES’ J-BOX IN. THREAD LED RETROFIT
WIRES AND THREADED END OF CONDUIT INTO KNOCKOUT OPENING. SECURE THE
CONDUIT TO THE J-BOX USING THE CONDUIT NUT.
11. CONNECT LED RETROFIT MODULE WIRES TO MAINS/LINE WIRING INSIDE J-BOX USING
PROVIDED WIRE NUTS.
WIRING CONNECTION DETAILS
a. GREEN/YELLOW WIRE TO GROUND WIRE (BARE OR GREEN)
b. BLUE WIRES TO LINE CONDUCTOR (BLACK)
c.
WHITE WIRES TO NEUTRAL CONDUCTOR (WHITE)
12. *NOTE: IF THE LED MODULE HAS TWO ADDITIONAL WIRES (GREY AND VIOLET), THEN IT
SUPPORTS OPTIONAL 0-10 VOLT DIMMING. IF
THIS OPTION IS REQUIRED IN THE INSTALLATION,
CONNECT THE VIOLET WIRE TO THE POSITIVE (+),
AND THE GREY WIRE TO THE NEGATIVE (-)
DIMMER WIRE LEADS. DIMMER OUTPUT MUST
BE CLASS 2.
