Product selection & part number guide, Wiring diagram / battery back up, Contact information – TERRALUX DLSQ8 Spec Sheet User Manual
Page 6
6
TERRALUX DLSQ8 Product Specification – Subject to change without notice
WWW.TERRALUX.COM
7/01/2014

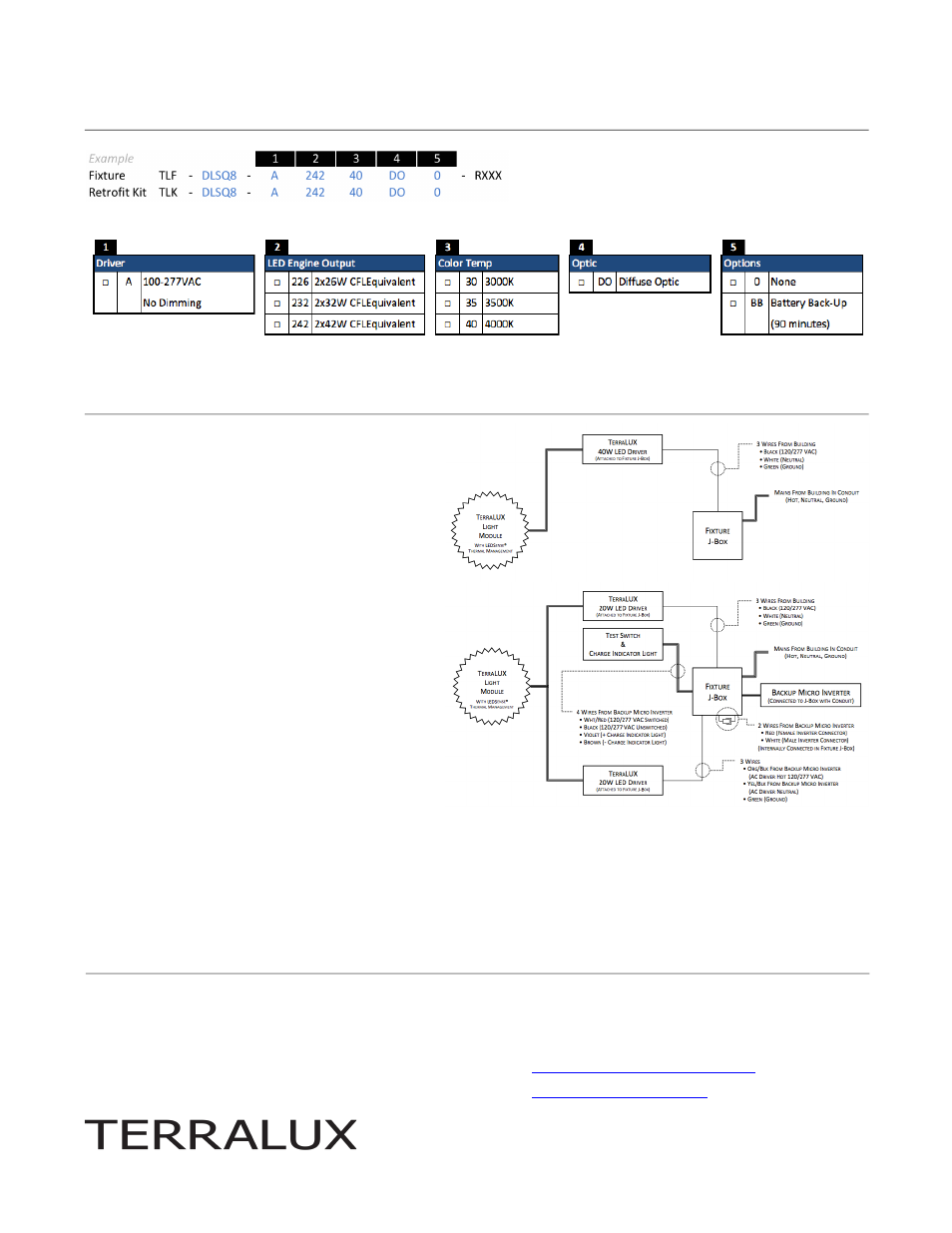

Product Selection & Part Number Guide
TERRALUX Inc.
Phone: 303-442-4960
1830 Lefthand Circle
Fax: 866-919-2515
Suite B
Longmont, CO 80501
www.TERRALUX.com
Wiring Diagram / Battery Back Up
Standard
With Battery Back Up Option
The
LED
array
is
divided
in
two
parts.
Each
part
is
powered
by
a
separate
LED
driver.
One
of
the
two
drivers
is
connected
to
a
Bodine
ELI-‐S-‐20
20W
Backup
micro
inverter.
Under
normal
conditions,
both
drivers
are
powered
from
mains
and
the
light
output
and
distribution
of
the
EM
fixtures
is
identical
to
the
regular
fixtures.
In
the
event
of
power
outage,
the
Bodine
Micro
Inverter
will
power
for
at
least
90
minutes
one
of
the
2
LED
drivers
that
will
illuminate
50%
of
the
LEDs
(which
results
in
50%
of
the
total
light
output
of
the
system).
This
Bodine
solution
is
UL
924
LISTED,
for
Factory
and
Field (retrofit) installation
