S-4903R Receiver

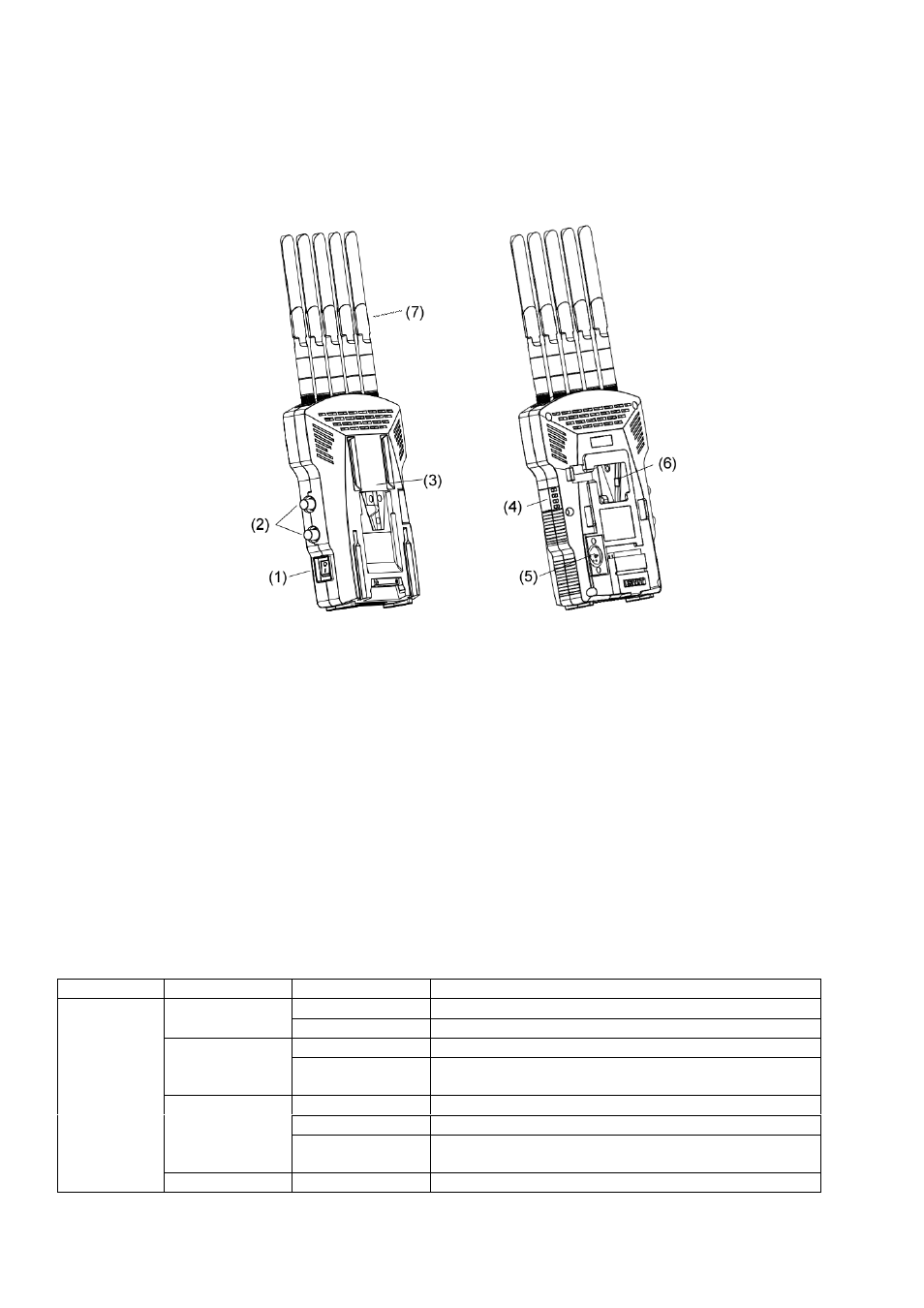

Front View Rear View
⑴ Power: Switch the power on/off
⑵ SDI OUT: 3G/HD-SDI output x2 (BNC connector)
⑶ V-mount power adaptor
Connect the S-4903R to V-mount devices, and supply DC power
⑷LED status indicators
Including Power, Video Signal and Wireless connection condition indicators
⑸ DC-IN
Power the S-4903R via 4-pin XLR adaptor.
Voltage range: DC 8-17V; Pin assign: No.1: negative, No. 4: positive
⑹ V-mount plate
Connect V-mount battery to S-4903R to supply power
⑺ Antenna
The description of LED status indicator
Device
Indicators
Status
Description
Constant On
Power connected and switched on
Power
Off
Power disconnected or switched off
Constant On
The receiver S-4903R has got SDI Video output
Video
Fast Flashing
System fault (Meanwhile the NET indicator is fast
flashing as well)
Constant On
Wireless connected with the transmitter
Normal Flashing Searching the connection with the transmitter
NET
Fast Flashing
System fault (Meanwhile the VIDEO indicator is fast
flashing as well)
S-4903R
Receiver
Reserved
Constant On
Reserved function
