3. Product Instruction

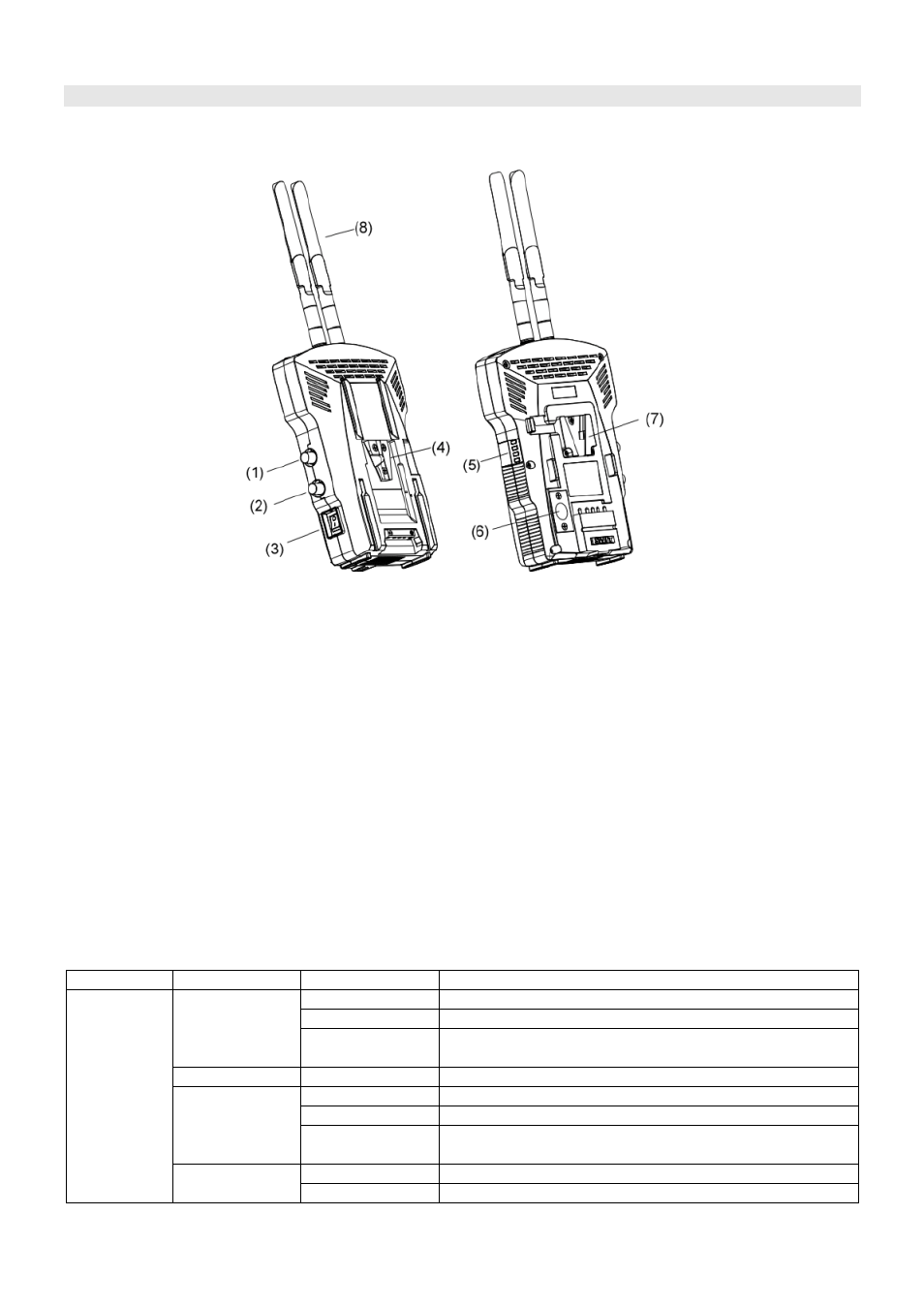

Transmitter S-4903T
Front View Rear View
⑴ SDI IN: 3G/HD-SDI input (BNC connector)
⑵ SDI LOOP: 3G/HD-SDI loop through output (BNC connector)
⑶ Power: Switch the power on/off
⑷ V-mount power adaptor
Connect the S-4903T to V-mount cameras or devices, and supply DC power
⑸ LED status indicators
Including Power, Video Signal and Wireless connection condition indicators
⑹ DC-IN
Power the S-4903T via 4-pin XLR adaptor.
Voltage range: DC 7-17V; Pin assign: No.1: negative, No. 4: positive
⑺ V-mount plate
Connect V-mount battery to S-4903T to supply power
⑻ Antenna
The description of LED status indicator
Device
Indicators
Status
Description
Constant On
Wireless connected with the receiver
Normal Flashing Searching the connection with the receiver
NET
Fast Flashing
System fault (Meanwhile the VIDEO indicator is fast
flashing as well)
Reserved
Off
Reserved function
Constant On
The receiver S-4903R has got SDI Video output
Normal Flashing No SDI Video output at the receiver
Video
Fast Flashing
System fault (Meanwhile the NET indicator is fast
flashing as well)
Constant On
Power connected and switched on
S-4903T
Transmistter
Power
Off
Power disconnected or switched off
