SETUP AND PROGRAMMING

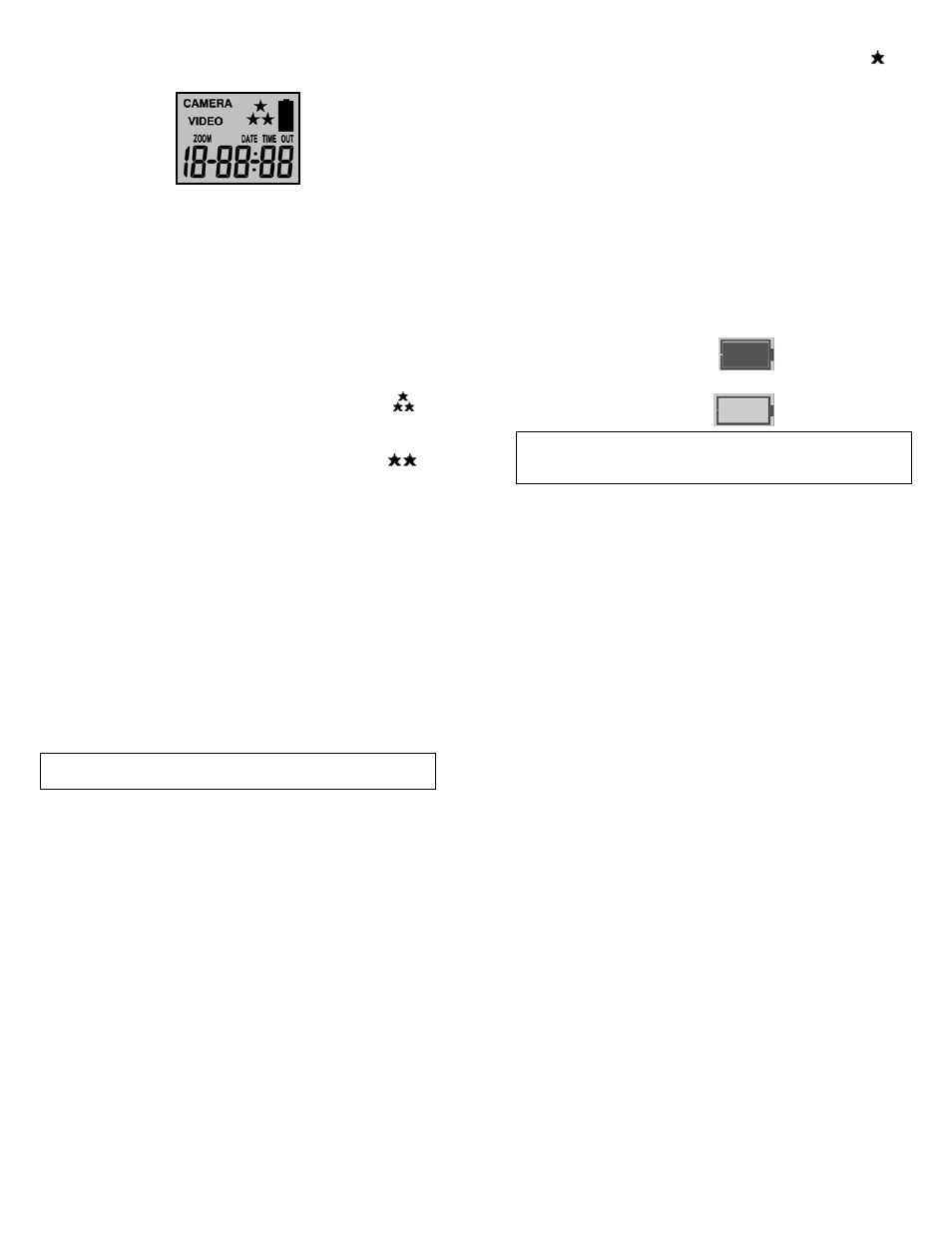

When the camera is first turned on, the internal LCD screen displays
the camera status. The following information is present on this screen.
If no buttons are pressed after 30 seconds the LCD screen will power
down to conserve battery life and enter 1 minute count down to enter
PIR detection mode. To re‐power the display screen, press and hold
the UP or DOWN button until you see the status screen.
Definition
• Day and Time: Displays the date and time that you have set.
• Capturing Sequence mode:
¾ 1P ‐ 9P: 1 to 9 burst mode image capturing per PIR trigger.
¾ Video: 10 to 180 seconds’ adjustable video per PIR trigger.
• Resolution for Images: Color Daytime / Black & White Nighttime
¾ 3 Stars (8Mp): Select this option to capture an 8.0M
pixels image. (High image quality interpolated from
5M sensor)
¾ 2 Stars (3Mp): Select this option to capture a 3.0M
pixels image. (Low image quality)
WWW.STEALTHCAM.COM
Toll Free 877-269-8490
14
¾ 1 Star (1.3Mp): Select this option to capture a 1.3M
pixels image. (Base image quality) (Default)
• Resolution for Video: Color Daytime / Black & White Nighttime
¾ VGA: 640x480 *ONLY resolution*
• Time out: To set the amount of time in seconds / minutes the
camera will sleep between PIR triggering.
• Temp stamp: Temperature stamp will display on still images and
first frame only on video files.
• Moon phase: Displays the moon phases.
• Zoom: Digital enhancement to different zoom level.
¾ 1X: Normal – the word “ZOOM” will not display.
¾ 2X: Two times zoom – the word “ZOOM” will display.
¾ 4X: Four times zoom – The word “ZOOM” will blink.
• Battery Status: Shows the battery status.
¾ Full: The battery is full.
¾ Low: The battery is low. (Front Low Battery indicator will also
blink.)
NOTE: When the camera detects low batteries, the camera unit will
power off within 30 seconds automatically. Please replace with new
batteries; otherwise the camera may not work properly.
WWW.STEALTHCAM.COM
Toll Free 877-269-8490
15
Programming the Stealth Cam
Switch the camera to the ON position. LCD screen will display the
camera status screen. Press the MENU button within 30 seconds to
enter programming mode. If MENU button is not pressed within 30
seconds, camera will automatically enter PIR detection mode.
NOTE: At the end of each program set up selection, you may press the
MENU button to exit and return to camera status ready screen.
Setting the Still image Resolution:
Your Stealth Cam can be programmed to 3 different resolutions,
High (3 Stars‐8Mp), Low (2 Stars–3Mp), Base (1 Star–1.3Mp).
• Switch the camera to the ON position.
¾ LCD screen will display the camera status screen.
• Press the [MENU] button once within 30 seconds to enter the
programming mode.
• The word CAMERA and the STARS will be blinking.
• Press the [OK] button ONCE to choose the selection.
• Press the [UP] or [DN] button to select the desired resolution.
• Press [OK] to save your selection.
• Press [MENU] button to exit.
WWW.STEALTHCAM.COM
Toll Free 877-269-8490
16
Setting the Capturing Sequence:
Your Stealth Cam can be programmed to shoot 1‐9 pictures per
triggering.
• Switch the camera to the ON position.
¾ LCD screen will display the camera status screen.
• Press the [MENU] button once within 30 seconds to enter the
programming mode.
• Press the [UP] button ONE time to enter the Capturing Sequence
setting mode.
• The word CAMERA will be blinking.
• Press [OK] button and the current number of burst mode images
will blink.
• Press the [UP] or [DN] button to select the desired burst mode
setting or number of pictures per triggering.
• Press [OK] to save your selection.
• Press [MENU] button to exit.
