Operating Modes
The primary operating modes are User
Selectable Tone, Yelp, Wail, Radio, PA,
Horn Override, and a push-button Manual
Override are available in all modes. All
tones except Wail and Yelp for California
Title 13 compliance may be disabled by
programming the siren.
-Microphone Bracket Installation-
A metal clip is provided for mounting the microphone. Choose a
location convenient to the operator and away from any air bag deploy-
ment areas. Using the mounting clip as a template, mark the two
holes to be drilled. Using a 1/8” drill bit, drill the two mounting holes.
Install the two #6 screws provided with the bracket.
WIRING:
WARNING! All customer supplied wires connecting to the
positive terminal of the battery must be sized to supply at least
125% of the maximum operating current and FUSED at the
battery to carry that load.
Ensure the siren amplifier / relay unit is mounted in dry, protected
environment.
TECHNICAL SPECIFICATIONS
Overall Dimensions:
Control Panel:
Amplifier/Relay:
3.51” W x 6.89”H x 1.17”D
2.62”H x 7.00”W x 6.51”D
Input Voltage: 10 - 16Vdc (negative ground)
Boxed Weight: 8 lbs.
Operating
Temperature:
-40°C to +50°C
Diagnostic LEDs: Speaker shorted/open, internal fuses open,
communications faults
Siren
Input Current 7 Amps @ 13.4 VDC (100W Speaker)
14 Amps @ 13.4 VDC (2 x 100W speakers)
Standby Current:
Ignition ON:
Ignition OFF:
500mA
<1mA
Output Power: ETSA481: 1x100W RMS Max (11 Ohm speaker)
ETSA482: 2x100W RMS Max (11 Ohm speaker)
Audio Frequency: 500-3 kHz
Siren Frequency: 675Hz - 1633Hz
High Voltage
Protection:
Limits to <18V
If siren tone is in progress, sound will continue
during overvoltage. New siren tone will not
activate if voltage is >18V
Low Voltage
Shutdown::
Voltage<9.0V will cause siren output to cease
and will resume when system voltage is >9.5V
Tone disable for California Title 13 compliance
Auxiliary Input connection for remote manual or Hands
Free operation
Speaker Protection: Shorted, Open: Stop output signal, preserve Amp
Light Control
AUX button relays: 9 total 10A max each circuit
Total current not to exceed 50A for CN8 pin 5
2 of the 9 available for external Arrow control
2 of the 9 have their source voltage switchable
from internal to external via fuse location, see
pg 5
Slide Switch Relays: 3 total 20A max each circuit,
Total current not to exceed 50A for CN8 pin 4
WARNING !
Do not install this product or route its wires in
the air bag deployment area.
Doing so may cause damage to or reduce
effectiveness of the air bag, or create projectile
that could cause serious injury or death.
To determine air bag deployment area refer to
vehicle manufacturer's manual.

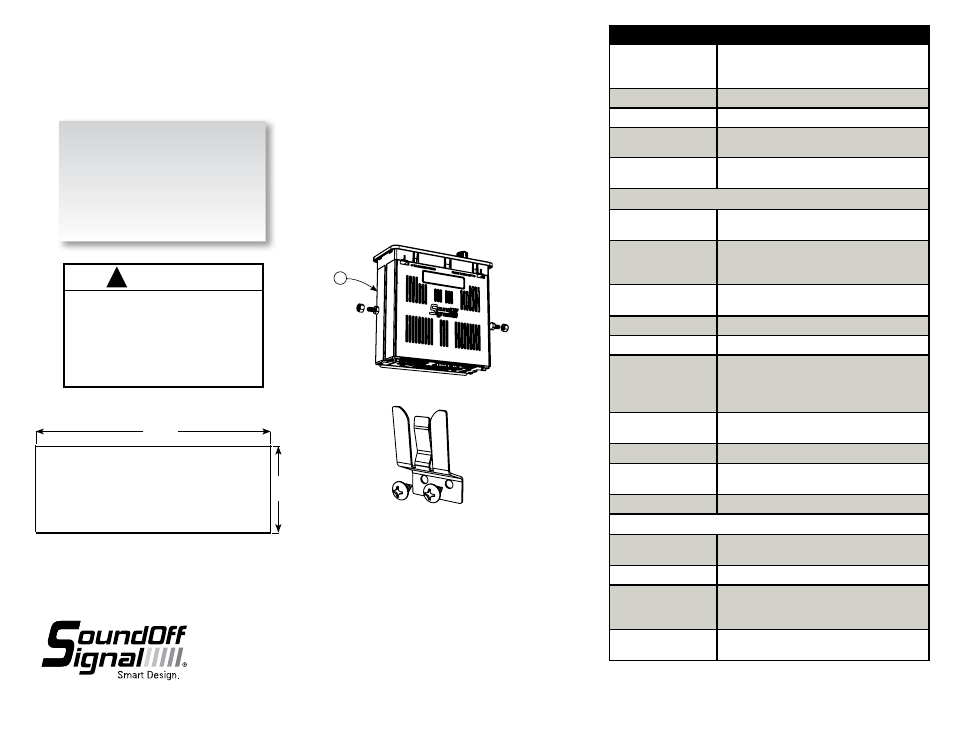

MOUNTING
-Siren Installation-
Siren must be mounted using fasteners in the side
t-slots. Before drilling holes, check for clearance to
prevent damage. Check both sides of the mounting
surface before drilling and the be aware of any vehicle
components or other vital parts that may be damaged
during drilling. Choose a location with adequate air
flow as this unit gets warm and relys on cool air.
Install grommets in any wire passage holes.
1. Slide ¼” hex head bolts into siren amplifier t-slots.
2. Thread ¼” lock nuts onto bolts and tighten to
secure siren unit to intended receiver.
3. Install amplifier with clearance from other objects
for improved ventilation.
1
400 SERIES AMPLIFIER BOX
PSRN4ANR1
PSRN4ANR2
3
ETSA48(x)CSX-CVR 3.4.13
Recommended Cutout
7.10 in
2.72 in
