MixPre-D User Guide and Technical Information

2

v1 .0 Features and specifications are subject to change . Visit www .sounddevices .com for the latest documentation .

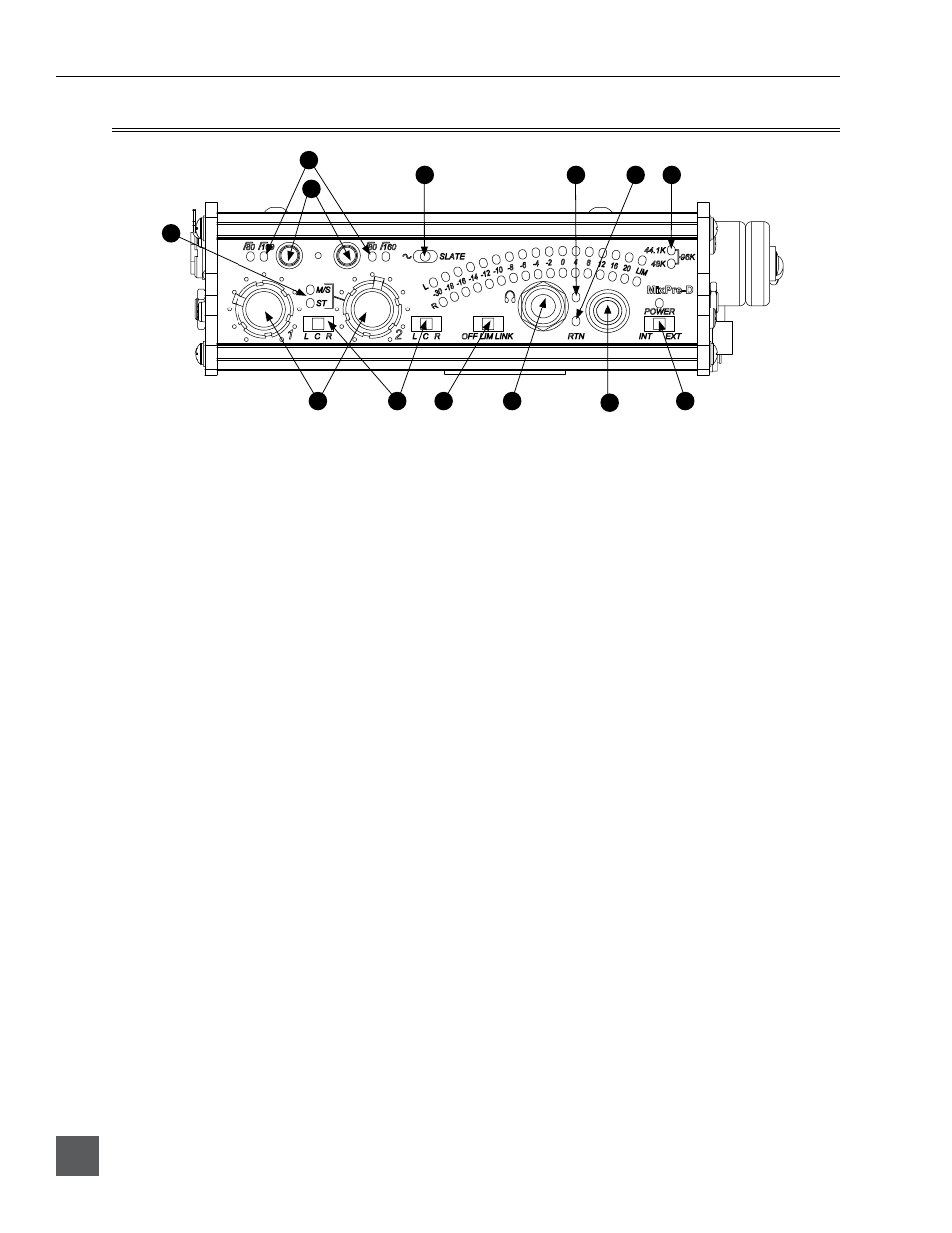

Front Panel Description

2

13

1

6

7

3

4

5

8

9

10

11

12

1)

Link LEDs

Indicates linked status of inputs. Both

LEDs off:

no link; Bottom LED illu-

minated:

stereo linking; Both LEDs

illuminated:

MS stereo linking.

See Input

Linking

2)

Input Gain Controls

Potentiometers to adjust input gain.

Fully counter-clockwise is off.

3)

High-Pass Filter LEDs

Indicates that the high-pass filter is

engaged for the input. One LED illumi-

nated:

80 Hz; Both LEDs illuminated:

160 Hz.

4)

Input Buttons

Toggles between high-pass filter settings

for the input (Off / 80 Hz / 160 Hz).

5)

Pan Switches (Input Assignment)

Three-position switch pans input to Left,

Center (both left and right) or Right

outputs. When inputs are linked, Input 2

Pan Switch function is altered.

See Input

Linking

6)

Tone Oscillator/Slate Microphone
Switch

Toggle switch activates a 1 kHz tone

oscillator when switched to the left posi-

tion and activates the slate microphone

when in the right (momentary) position.

Microphone inputs are muted when

tone or slate are activated.

7)

Limiter Switch

Activates both the input and output lim-

iters. Middle: (LIM) dual-mono limiter

operation; Right: (LINK) stereo opera-

tion. Threshold is adjustable.

See Front

Panel Shortcuts

8)

Headphone Connector

Accepts stereo and mono headphones

with 1/4-inch connectors.

9)

Return Signal LED

Indicates presence of signal on RTN

input or Channel 3 & 4 input.

See Inputs

3 and 4

10)

Monitor Source LED

Indicates monitor source. Off: output

bus. Solid: Return signal; Flashing: USB

output signal.

See Computer Interface

11)

Headphone Controller

Rotating controls headphone gain. Push

to cycle between monitor sources. Also

controls various secondary functions.

See Front Panel Shortcuts

12)

Sample Rate LEDs

Indicates the current sample rate when

AES output is active or USB is con-

nected.

13)

Power Switch and LED

Three position switch: Middle: off;

Left:

(INT) internal power; Right: (EXT)

external power. Power illuminates green

for adequate voltage and flashes green

when voltage is low.
