HX-3 User Guide and Technical Information
7

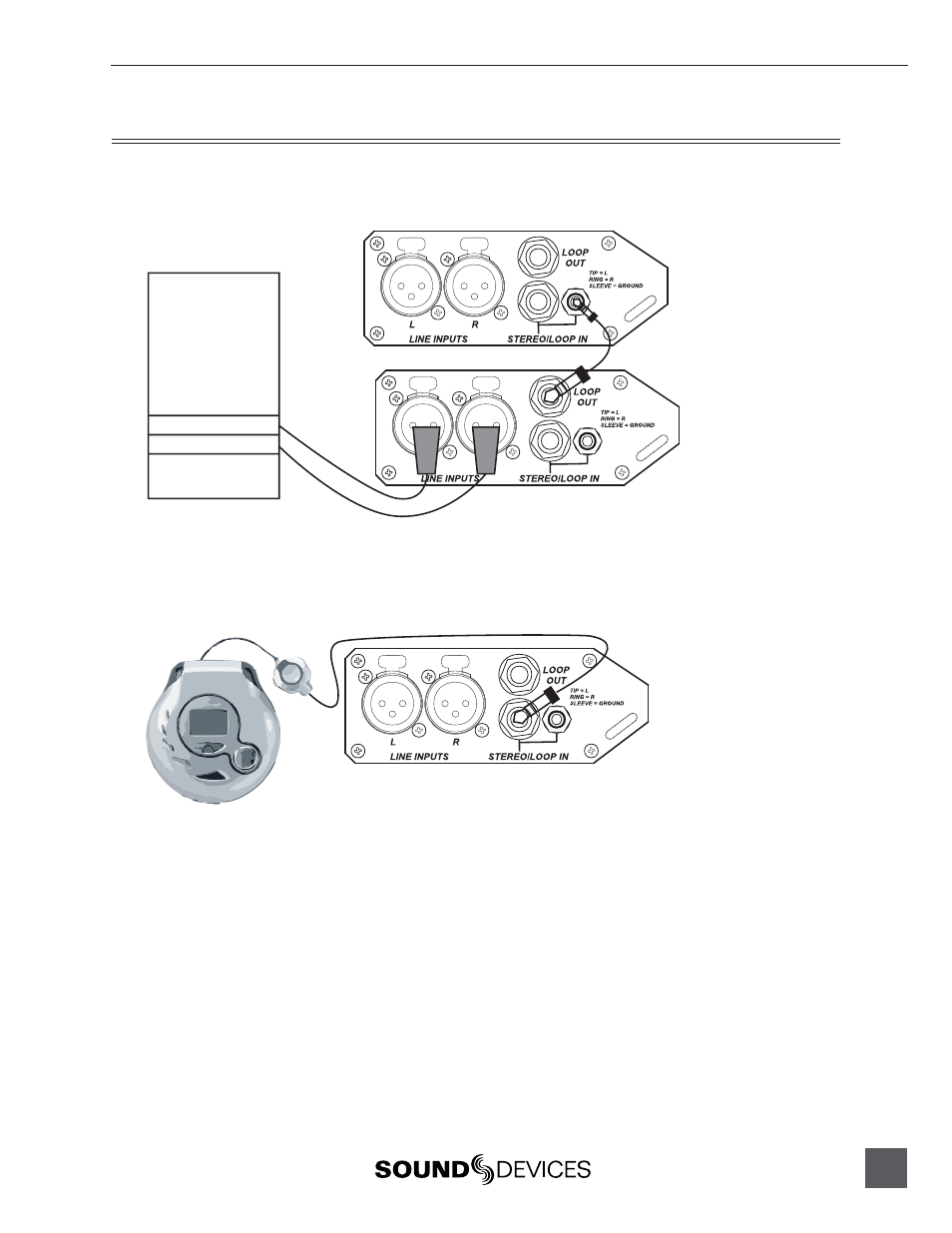

Connection Diagrams
The HX-3 can be used in a variety of headphone applications. Below are a few examples of interconnec-
tion setups using the HX-3.
Mixing
Console
Monitor L
Monitor R
One or more units can be added and “daisy-chained” for additional headphone feeds from a mixing
console. Loop additional HX-3 amplifi ers with the included Link cable.
The headphone outputs of portable audio electronics can be connnected to the HX-3 for additional
headphone feeds. The included 1/4-inch to 1/8-inch can be used to connect the line-out or headphone
output to the HX-3.
