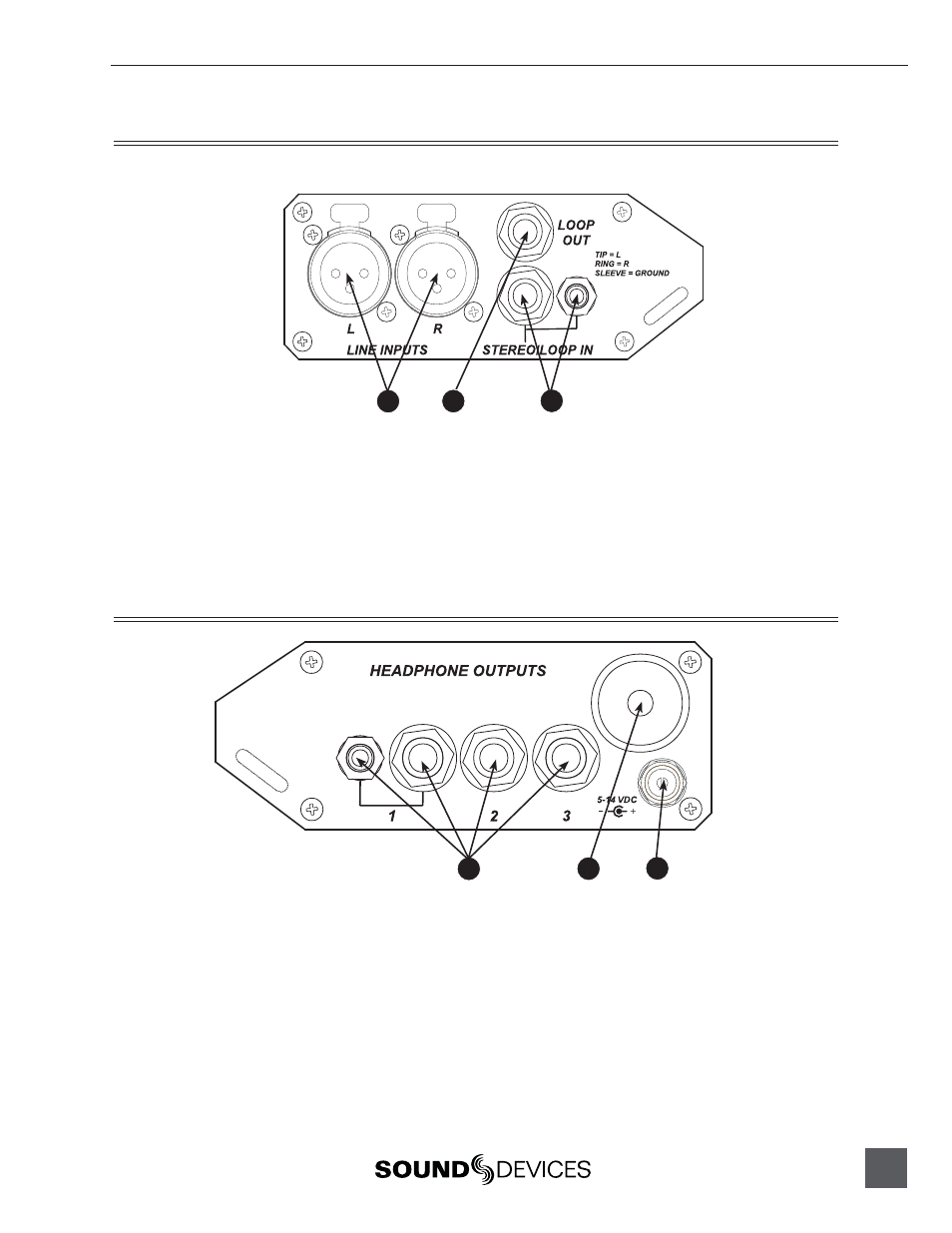

Input Panel Connectors
1 2 3
1. XLR Line Inputs
Line level, balanced inputs.
2. ¼-Inch and 1/8-inch Tape Level Inputs
Unbalanced, stereo, Tip-Ring-Sleeve
inputs.
3. Loop Output
Output connection enabling intercon-
nection of multiple HX-3’s. Loop Out is
T-R-S, unbalanced stereo connection.
Output Panel Connectors
1 2 3
1. HEADPHONE OUTPUTS
Panel mounted headphone jack for each
output. Output 1 has 1/8-inch jack in
parallel with ¼-inch jack.
2. BATTERY Compartment
Requires two AA batteries for operation.
Insert positive (+) end of battery fi rst.
3. DC Input
Locking coaxial DC input accepts volt-
ages from 5 to 14 VDC.
