CANOPY INSTALLATION
Step 4. Attach the canopy to the crossbar mounting bracket with three of
the 8-32 x 2 1 /
2
” long canopy screws and lock washers provided with your
Casablanca fan. Hand tighten until snug against the ceiling.
CANOPY
SCREw
CANOPY
LOCK
wASHER
FEED OUTLET
BOX wIRES
THROUGH CAN-
OPY OPENING
note: On sloped ceilings, align the
canopy opening toward the top or
peak of the room.
CANOPY HARDwARE
CANOPY LOCK wASHER
(4)
CANOPY SCREw
(4)

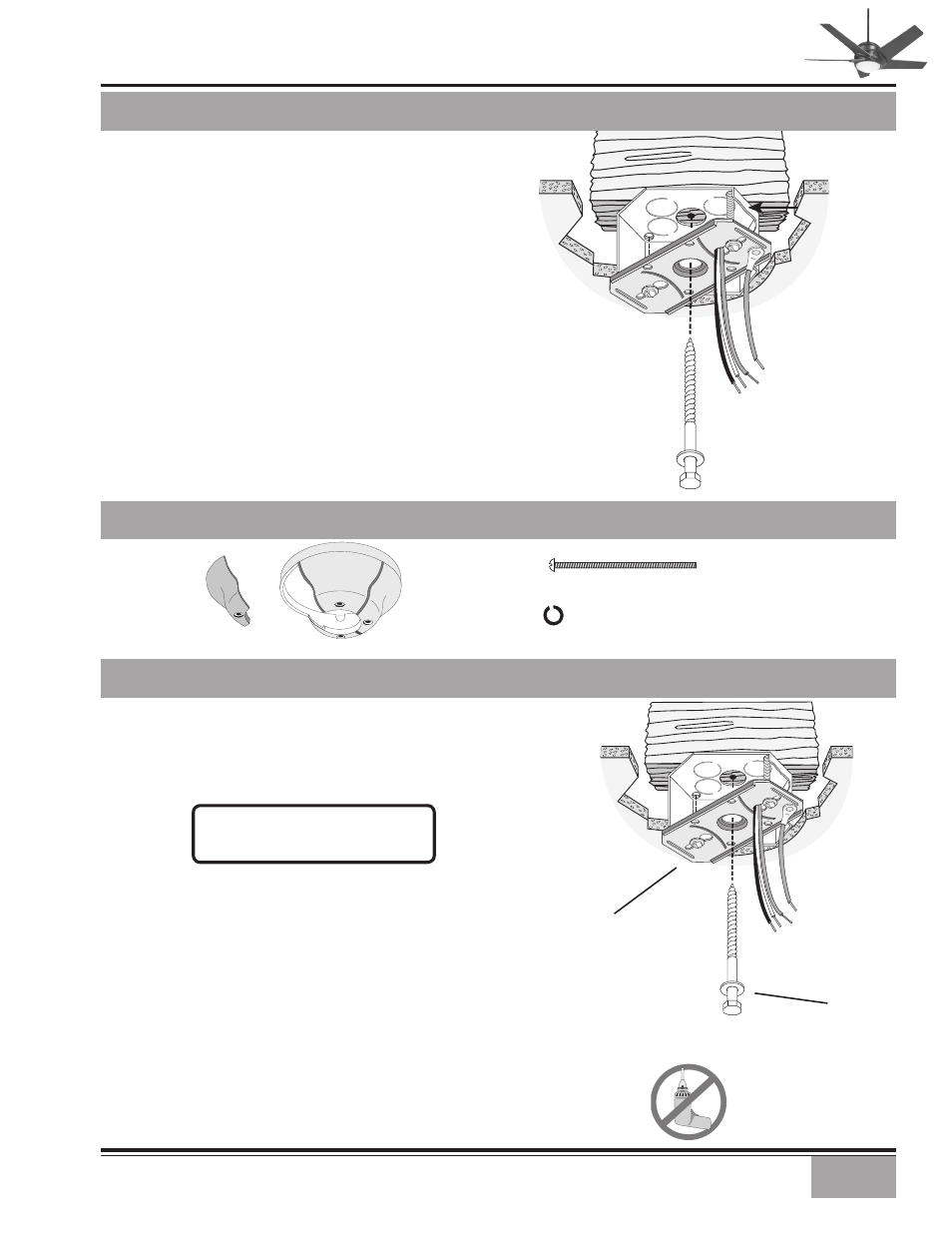

Step 3. With the large washer attached, pass the lag screw
through the center hole of the crosbar mounting bracket
and screw into guide hole. Tighten until outlet box is firmly
mounted to beam. This box must be firmly secured to the
ceiling. We recommend that the ceiling fixture outlet box
be of sufficient capacity enabling it to support the weight
of fan and light fixture under any conditions.
LAG
SCREw
LAG SCREw INSTALLATION
LARGE
wASHER
CANOPY
HATCH CANOPY
