4

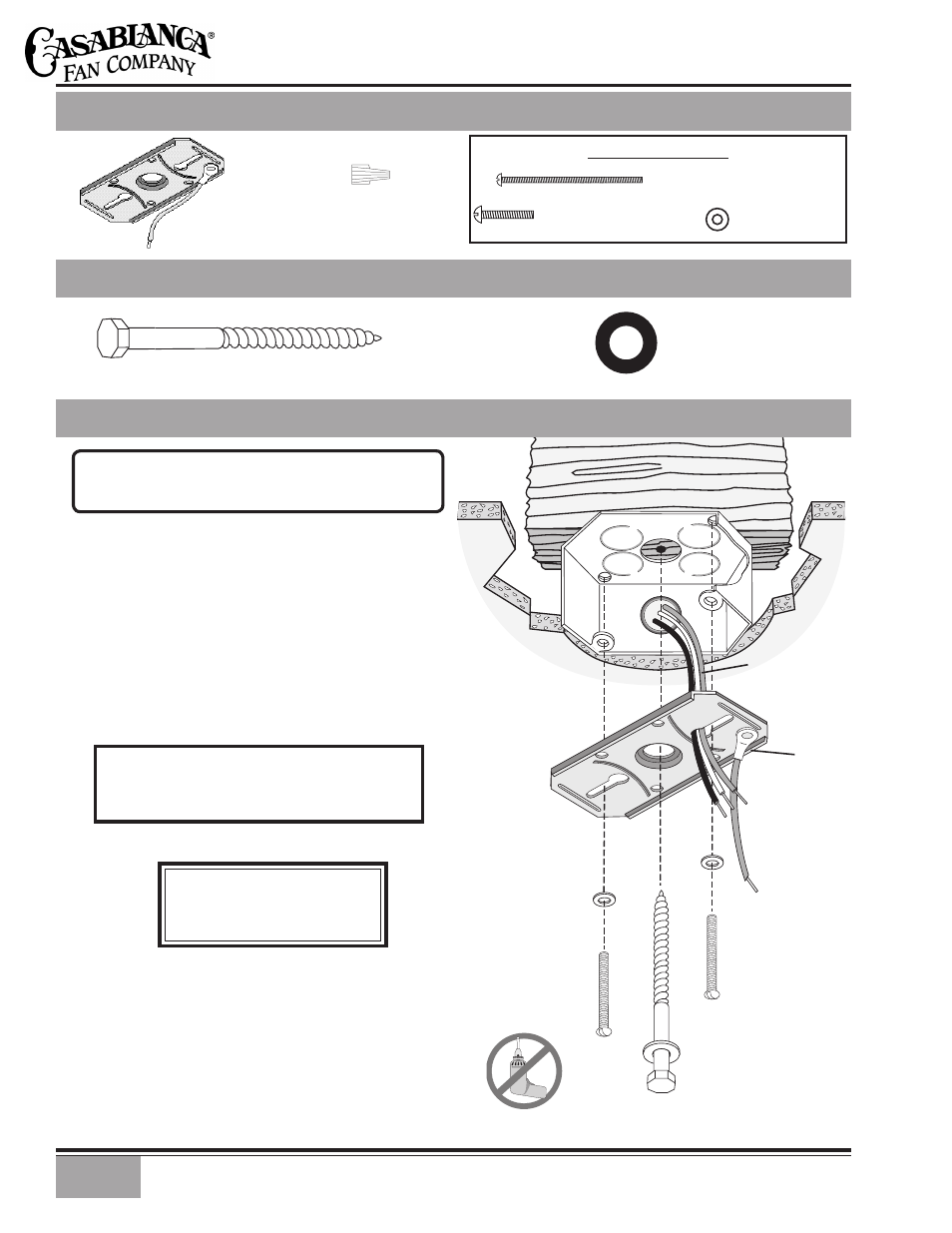

CROSSBAR MOUNTING BRACKET INSTALLATION
JOIST
CEILING
wIRING
CROSSBAR
MOUNTING
BRACKET
FLAT
wASHER
GREEN
GROUND
wIRE
CEILING FAN
APPROVED
wIRING BOX
RIDGE
SIDE
DOwN
APPROVED OUT-
LET BOX
HARDwARE
note: After removing the old fixture, check the outlet box
to insure that it is supported by a joist or beam across its
upper surface. If not, a 2” x 4” stud must be installed.
Step 1. Remove the knockout plug in the center of the out-
let box or drill a 1 / 2
″ hole for the lag screw to pass through.
Then drill a 1 / 4
″ guide hole into the joist or beam to a depth
of 3″.
Step 2. Route the outlet box wires through the keyhole slot of
the crossbar mounting bracket as shown. Attach the crossbar
mounting bracket to outlet box with screws provided, assuring
that the outlet box wires are not pinched by the washer.
CAUTION: To reduce the risk of personal
injury, use only the mounting hardware pro-
vided with the approved outlet box to install
the crossbar mounting bracket.
CEILING HARDwARE
wIRE NUT (4)
addiTional hardware
2 1 / 4
” x 8-32 ROUNDED
HEAD SCREw (2)
FLAT wASHER
1” x 8-32 ROUNDED
HEAD SCREw (2)
SUPPORT INSTALLATION PARTS
LAG SCREw
3 /
8
” #7 X 5” (1)
LARGE
FLAT wASHER
3 /
8
” (1)
wARNING!
SUPPORT DIRECTLY TO
BUILDING STRUCTURE
ONLY.
CROSSBAR
MOUNTING
BRACKET
