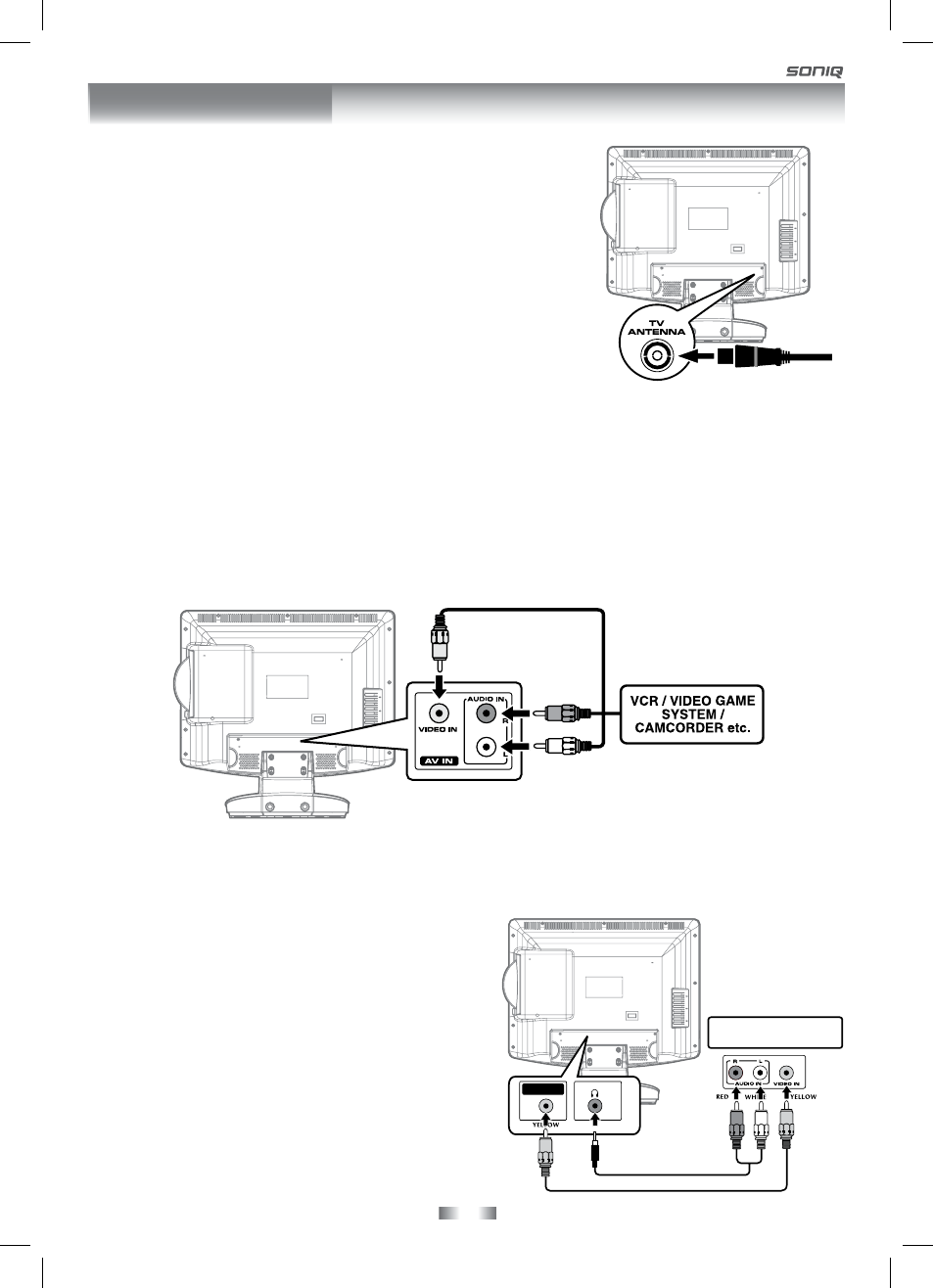

CONNECTING A TV ANTENNA
To view television channels correctly, a signal must be received from
an indoor or outdoor aerial antenna.
NOTE
For receiving over-the-air TV broadcasts, we recommend that you use
an external fixed antenna. Should you require the use of a temporary
antenna, please ensure that you purchase an antenna with sufficient
ability to receive in weak signal areas. Only when you are in close
proximity to a transmitter will a temporary antenna reproduce a signal
as strongly as a fixed antenna.
TV antenna cable to TV
ANTENNA terminal (cable
not included)
CONNECTING DEVICES WITH A COMPOSITE (YELLOW RCA-TYPE) VIDEO
OUTPUT
To connect A/V devices such as a VCR, video game system or camcorder.
Connecting to a VCR / Video Game System / Camcorder
Connect the AUDIO / VIDEO cable (not included) as shown.
Make sure you connect the cable from the other equipment (
AUDIO and VIDEO OUT) to this unit (AUDIO
and VIDEO IN).
NOTE
Please refer to the user manual for the other equipment for more information.
To AUDIO / VIDEO
IN jacks ( AV IN)
To AUDIO / VIDEO
OUT jacks
CONNECTIONS
ConneCting DeViCeS WitH A ViDeo inPUt
Connect the AUDIO cable (included) and VIDEO
cable (not included) as shown.
Make sure you connect the cable from the other
equipment (
AUDio and ViDeo in) to this unit
( Headphone jack and ViDeo oUt). Press the
FUnCtion or DVD button to select DVD mode.
Note:
Please refer to the user manual for the other
equipment for more information.
AUDIO CABLE
VIDEO
CABLE
VIDEO OUT
DVD
VCR / DVD RECORDER /
OTHER DISPLAY DEVICE
