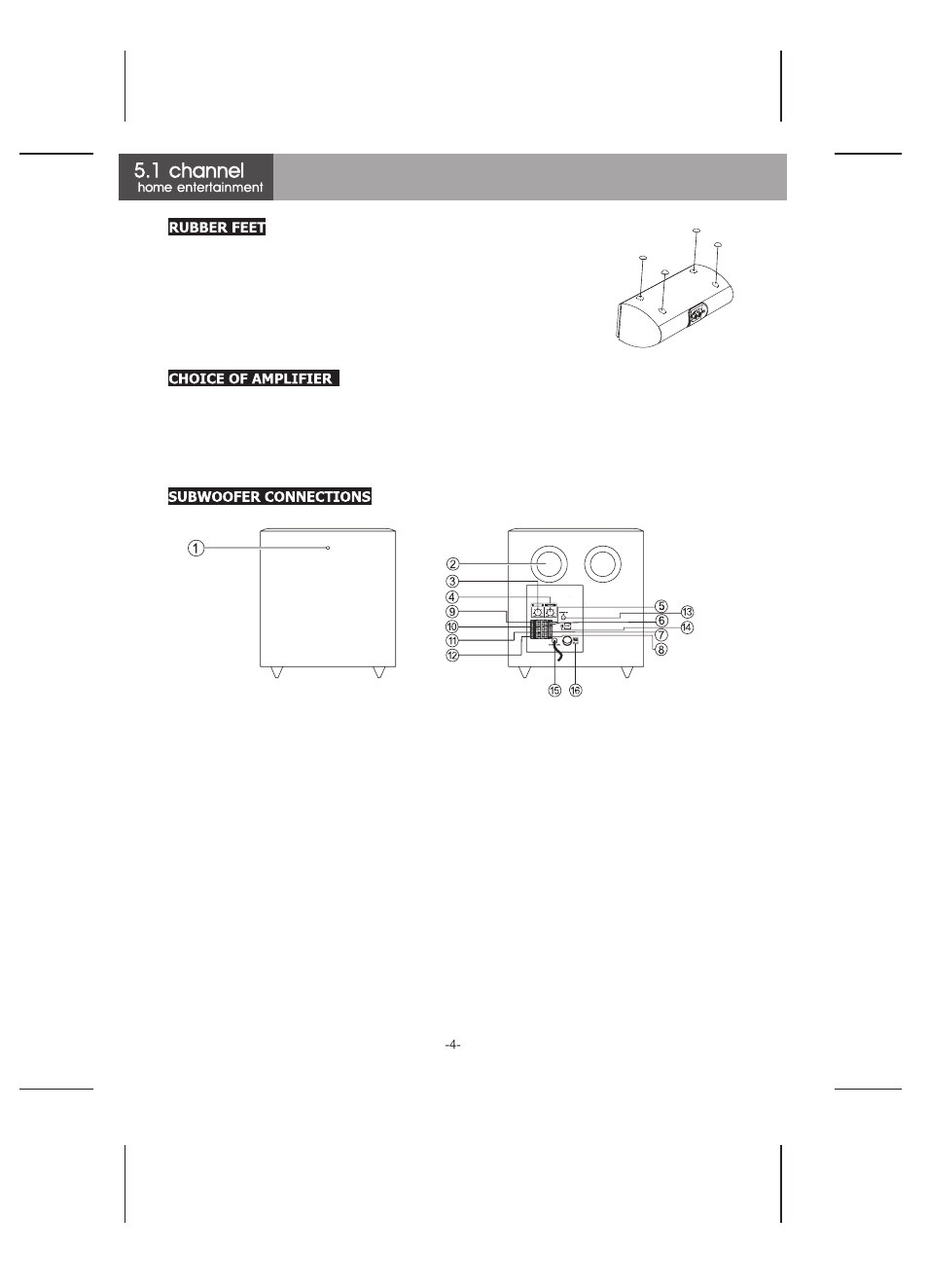

In order to avoid any resonance, the Center speaker has been
provided 4pcs of rubber foots which need to be assembled as
below:
Attention: Be sure that the protection sheet is thoroughly
peel-off before assembly!
A low powered amplifier will give satisfactory results only at low volume settings. To
obtain the best performance from your speakers, try to use an amplifier rated near to or
slightly in excess of the power rating of the loudspeakers.
1. Power LED Light
2. Port Tube
3. Crossover frequency Control (50Hz – 250Hz)
4. Volume Switch
5. High Level Input L (+)
6. High Level Input R (-)
7. High Level Input L (-)
8. High Level Input R (+)
9. Output To Speaker L (+)
10. Output To Speaker L (-)
11. Output To Speaker R (-)
12. Output To Speaker R (+)
13. Subwoofer In
14. Phase Switch (Normal and Reverse)
15. AC Power Cord
16. Power On/Off Switch
REAR PANEL OF SUBWOOFER
This is the simplest and most basic configuration. The power of the front, center and rear
speakers are provided by the internal amplifier of the receiver. The subwoofer provides its
own amplification for the low frequencies.
