Rite-Ride 2457 - Manual (Page 2)

1/2”-13
HEX NUT
1/2” LOCK
WASHER
1/2” FLAT
WASHER
1/2”-13 X 1-3/4”
HEX BOLT
3/8”-16
LOCK NUT
3/8”-16
LOCK NUT
3/8”-16 X 1-1/2”
HEX BOLT
MALE
FITTING
3/8”-16 X 7”
CARRIAGE BOLT
3/8”-16 X 3/4”
FLANGE BOLT
AXLE
BRACKET
STRAP
3/8”-16
LOCK NUT
LOWER
BRACKET
AIR
SPRING
UPPER
BRACKET
FRAME
3/8”-16 X 7”
CARRIAGE BOLT
HOLE FROM
JOUNCE BUMPER
REMOVAL
EXISTING
HOLES
CUT-OUT FITS AROUND
GROMMET ON FRAME

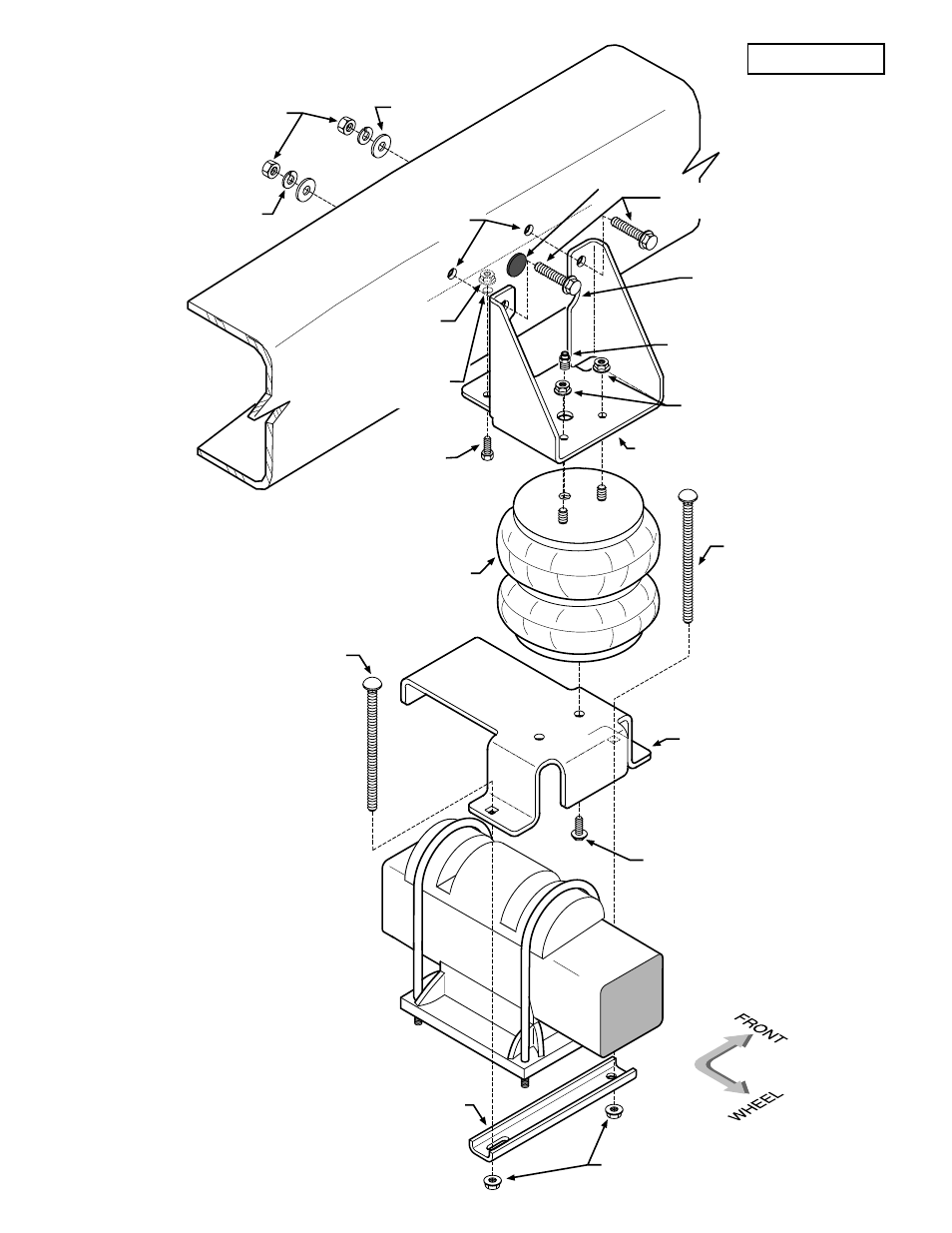

NOTE: All issustrations are of the
right side of the vehicle. Reverse all
orientations for the left side of the vehicle.
2457
FIGURE “A”
GROMMET
