Rite-Ride 4152 - Manual (Page 2)

A
IR
L
INE
I
NSTALLATION

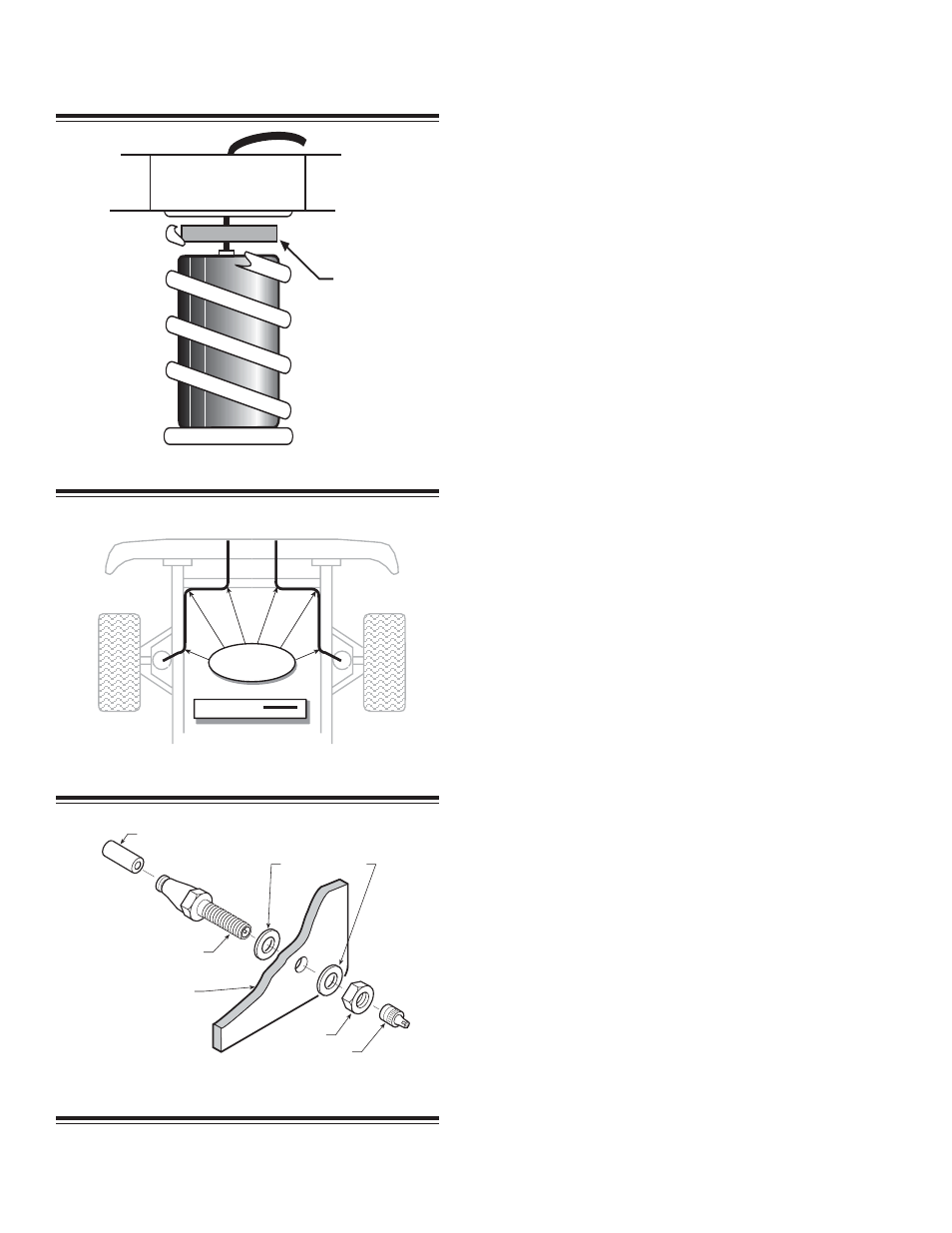

Figure "C"
Please take all necessary safety precautions
when installing your Coil-Rite kit.
S
TEP
5 R
OUTE THE
A
IR
L
INE
Cut the remaining air line tubing into two equal
lengths (cut the tubing as squarely as possible). Select
a location for the inflation valves in a protected area,
such as the bumper or trunk floor (Note: The inflation
valve will be installed in step 6).
Insert the air line tubing into the push-to-connect
fitting on the air spring as far as possible. Route the
tubing from the air spring to the inflation valve, making sure
to avoid direct heat from the engine, exhaust pipe and away
from sharp edges. Secure with nylon ties provided in your
Coil-Rite kit.
S
TEP
6 I
NSTALL THE
A
IR
L
INE AND
I
NFLATION
V
ALVE
Select a location on the vehicle for the air inflation
valves. The location can be located on the bumper or
the body of the vehicle, as long as it is in a protected
location so the valve will not be damaged, but maintain
accessibility for the air chuck see Figure "C". Drill a
5/16" hole and install the air inflation valve using two 5/16"
flat washers per valve as supports see Figure "D".
Follow steps 1-6 for the other air spring.
NOTE: Check air pressure on a monthly basis.
S
TEP
7 I
NFLATE AND
T
EST
Inflate the air springs to recommended operating
pressure (see page 1 for operating pressures). With a
soap and water solution, check for air leaks around the
fittings and valve core. We recommend inflating and
deflating in 5 p.s.i. increments to find the ideal riding
condition for your vehicle.
S
TEP
8 C
OMPLETION
This now completes the installation. Install the
wheels and torque the lug nuts to the manufacturers
specifications. Raise the vehicle and remove the jack
stands and lower the vehicle back onto the ground.
NYLON TIES
AIR LINE
AIR LINE
PUSH-TO-CONNECT
INFLATION VALVE
FLAT WASHER
HEX NUT
VALVE CAP
BODY OF
VEHICLE
Figure "D"
UPPER SPRING SEAT
UPPER
PLATE
Figure "B"
