• Take care when connecting the AV cable to the
camera or your computer. USB ports and cable plugs
are shaped for proper positioning.
• Push the AV cable in until you hear it lock securely
into place. Proper operation is not possible if the
connection is not correct.
Displaying Camera Images on a TV Screen
You can display recorded images on a TV screen and even
use a TV screen to compose images before you record
them. To display camera images on a TV, you need a
television equipped with a video input terminal, and the AV
cable that comes with the camera.

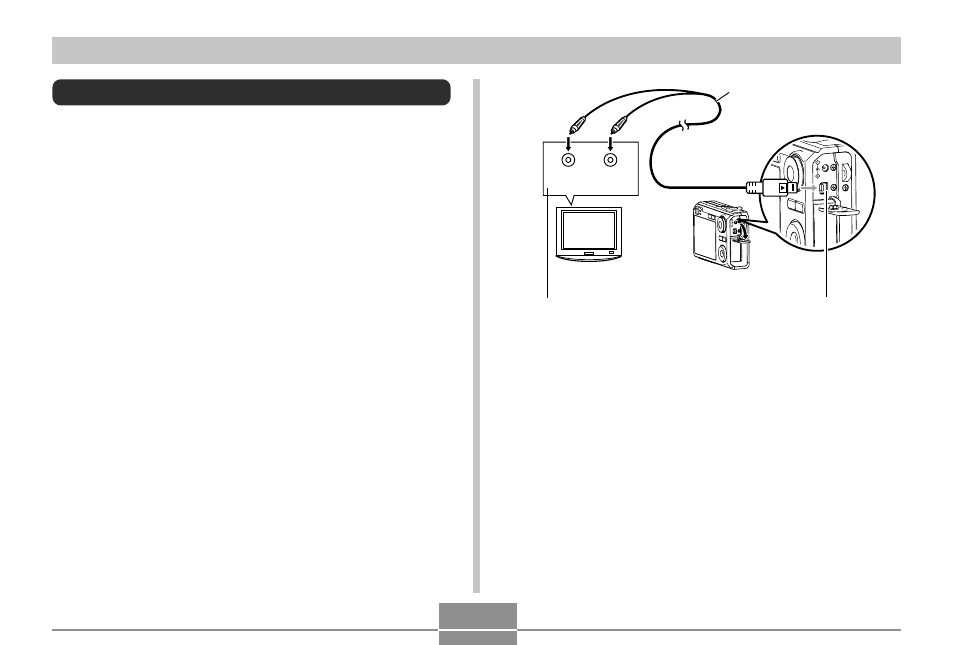

1. Connect one end of the AV cable that comes
with the camera to the camera’s [USB/AV]
port, and the other end to the video input
terminal of the TV.
• Connect the yellow plug of the AV cable to the video
input (yellow) terminal of the TV, and the white plug
to the TV’s audio input (white) terminal.
Yellow
(Video)
White
(Audio)
AV cable
[USB/AV] (USB/AV port) Video input terminal
TV
