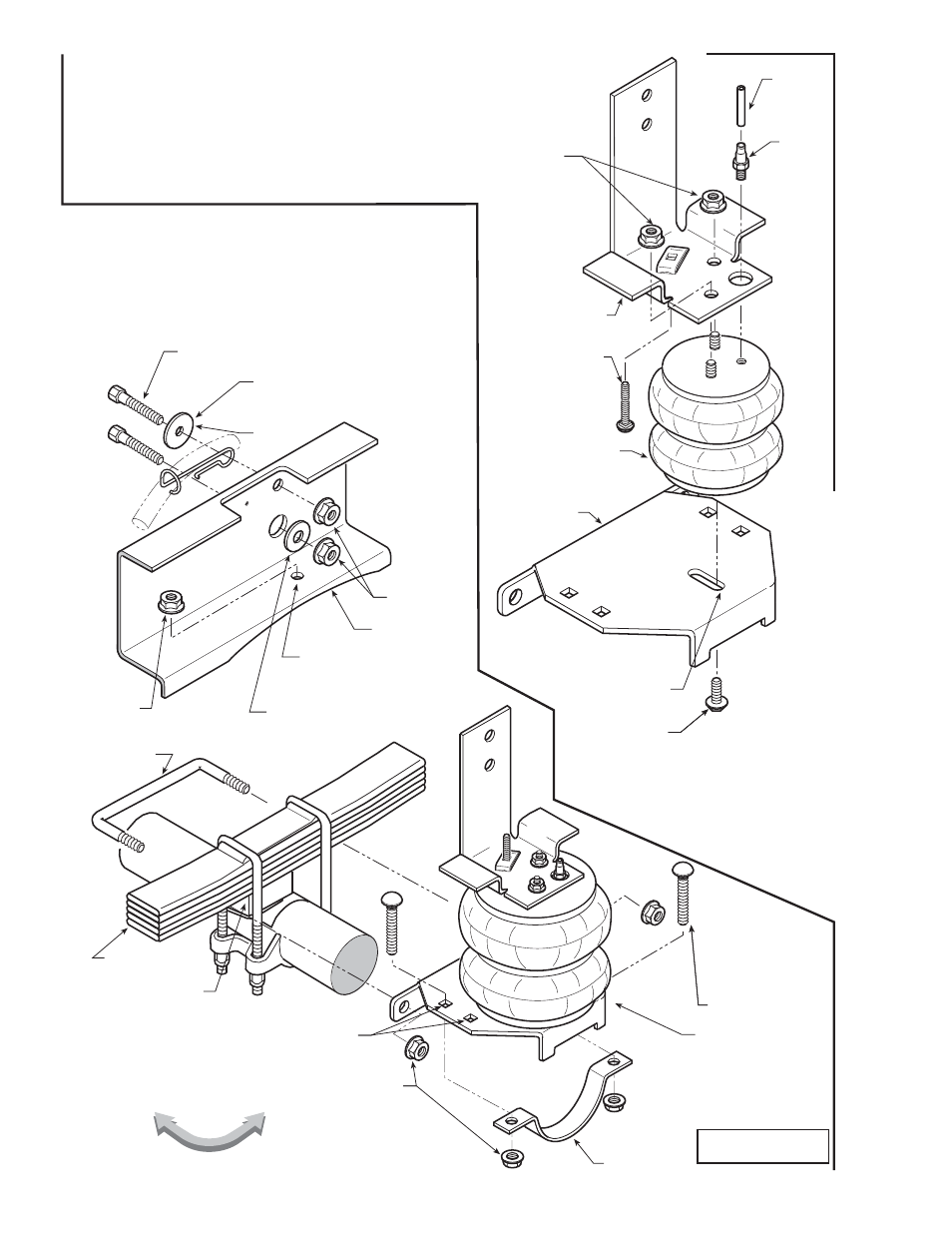

Kit to frame assembly, Figure “a – Rite-Ride 2255 User Manual

Page 2

NOTE:

Both illustrations are of the left, or drivers

side of the vehicle. Reverse any orientations when

installing the right, or passengers side assembly.

LOWER
BRACKET

3/8"-16 x 3"
CARRIAGE BOLT

3/8"-16

HEX NUT

3/8”-16
HEX NUTS

ASSEMBLED AIR
SPRING KIT

KIT TO FRAME ASSEMBLY

FRAME

BAIL CLAMP

LEAF SPRING

BRACKET
STRAP

3/8"-16 X 1"
HEX BOLTS

CASTING

3/8"-16
HEX NUT

UPPER BRACKET

AIR SPRING

AIR
INLET

AIRLINE
TUBE

2255

FRONT

WHEEL

EXISTING HOLE
FROM JOUNCE
BUMPER
REMOVAL

FIGURE “A”

3/8"-16 x 3"
CARRIAGE BOLT

3/8"-16 x 1-1/2"
CARRIAGE BOLT

3/8” FLAT
WASHER

USE HOLE THAT

BEST AVOIDS

BRAKE LINE

3/8”-16

HEX NUTS

NOTE: ATTACH AS

CLOSE TO EDGE

AS POSSIBLE

INSTALL THIS WASHER
ON LEFT SIDE ONLY

3/8”-16 X 1-1/2”
HEX HEAD BOLT

3/8” LARGE
WASHER
