Figure “a – Rite-Ride 2565 User Manual

Page 2

background image

BAIL CLAMP

(3410)

3/8"-16

FLANGE

LOCK NUTS

3/8"-16

FLANGE

LOCK NUTS

M10 X 1.5 X 20MM

HEX BOLT

LOWER

BRACKET

(5792)

AIR

SPRING

(6781)

FRAME

INSERT FRAME HOLE

BRACKETS THROUGH

HOLES ON THE INSIDE

OF THE FRAME

3/8"-16 X 1"

HEX BOLTS

3/8"-16 X 1"

HEX BOLTS

3/8"-16

FLANGE

LOCK NUTS

3/8"-16 X 1/2"

FLANGE

BOLTS

3/8"-16

FLANGE

LOCK NUTS

UPPER

BRACKET

(5771)

FRAME

BRACKET

(5701)

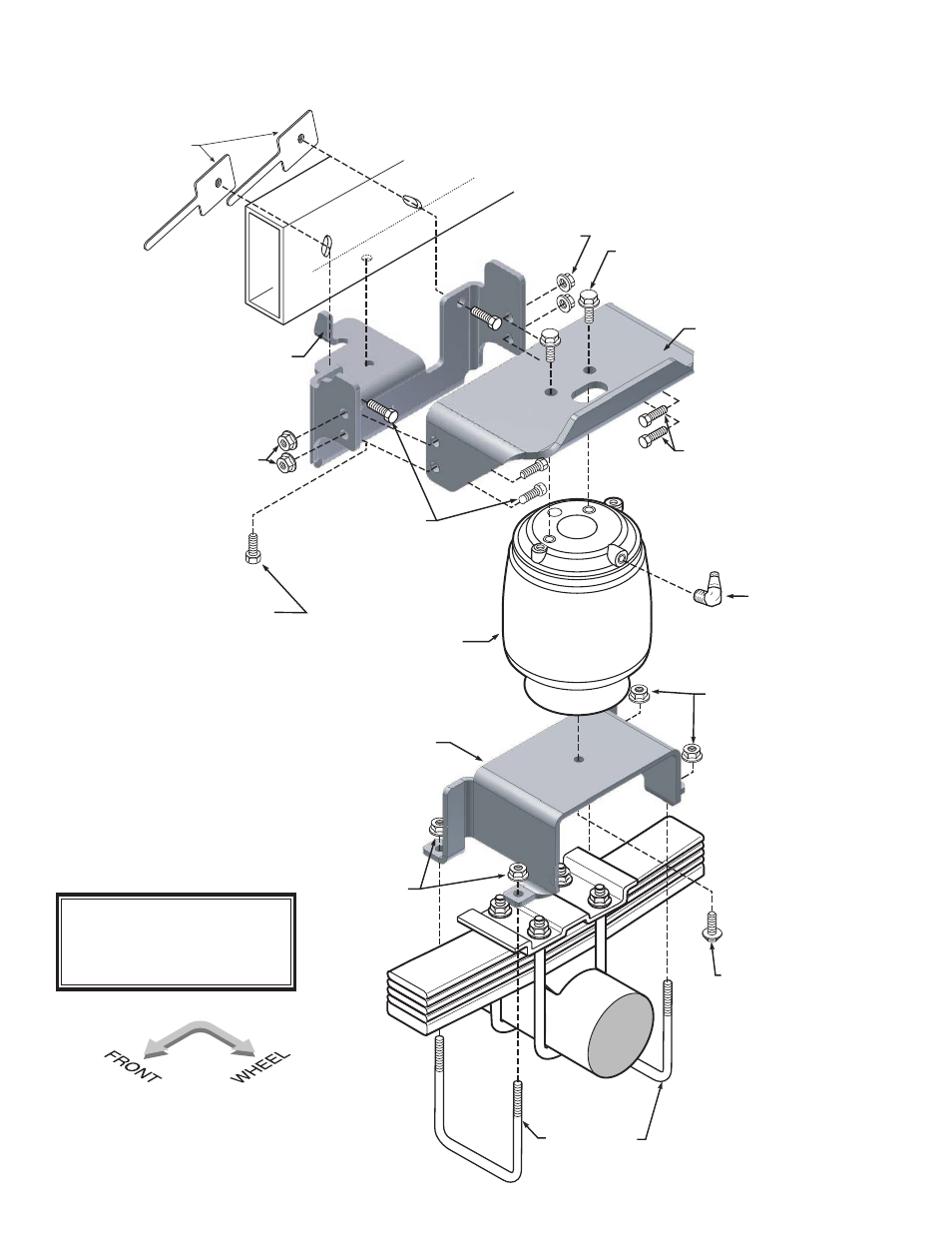

Figure “A”

BOLT FROM

JOUNCE BUMPER

REMOVAL

ELBOW

FITTING

(3048)

2565

MIN. PRESSURE

10 PSI

(UNLOADED)
MAX PRESSURE

100 PSI

(LOADED)
