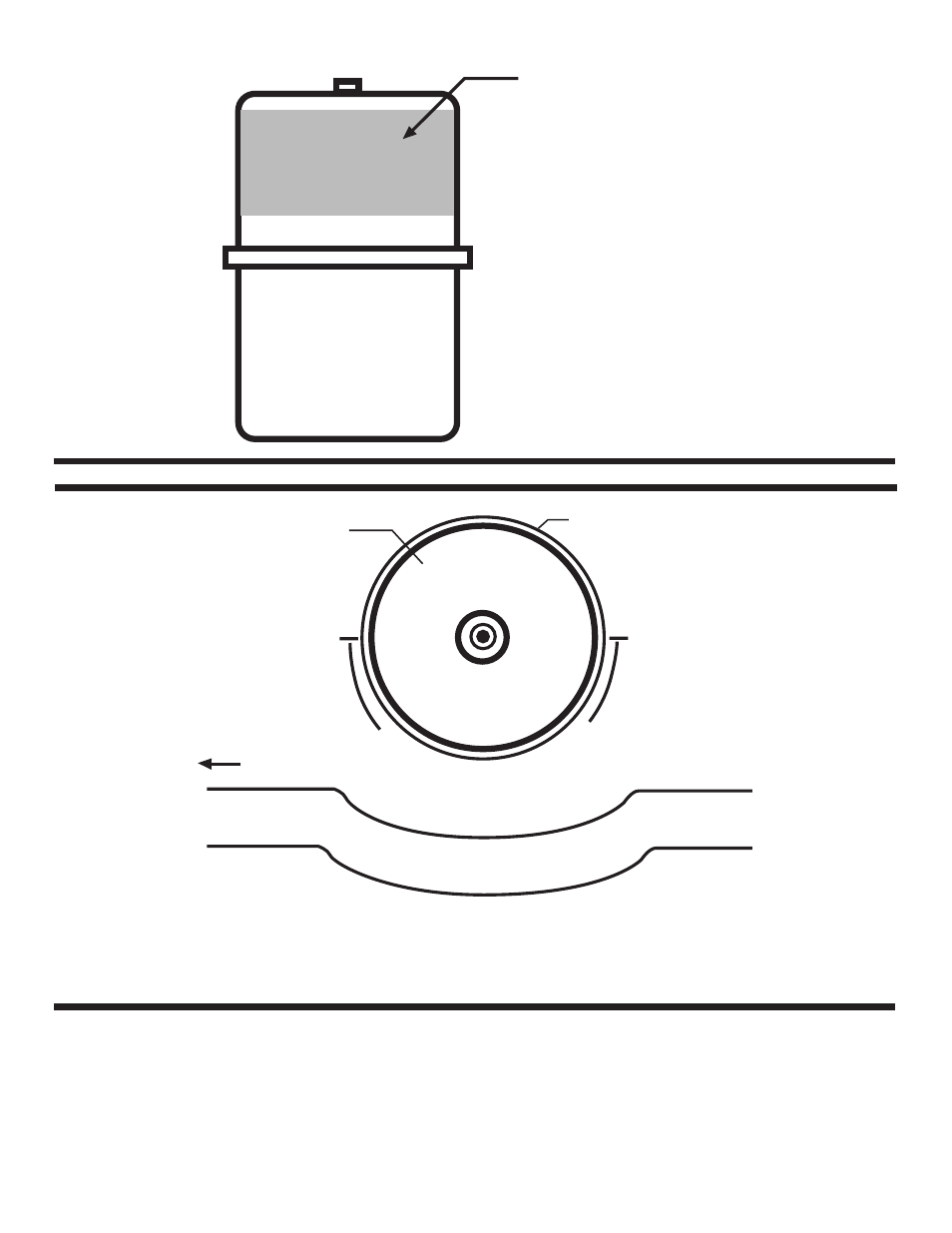

APPLY HEAT SHIELD
IN THIS AREA
SIDE VIEW
COIL SPRING COIL-RITE
AIR SPRING
AR
EA OF HEAT SHIE
LD
TAIL PIPE
FRONT
TOP VIEW
AIR SPRING HEAT SHIELD
To install the air spring heat shield, remove the backing on the
adhesive side of the material and apply the heat shield to the upper
section of the Coil-Rite air spring. See the “Side View” illustration.
When the Coil-Rite air spring is installed inside the coil spring, make
sure the heat shield is facing the tail pipe. See the “Top View”.
