FR
ONT
WHEEL
NOTE: Both illustrations are of the left, or drivers
side, of the vehicle. Reverse any orientations when
assembling and installing the right, or passenger, side
of the vehicle.

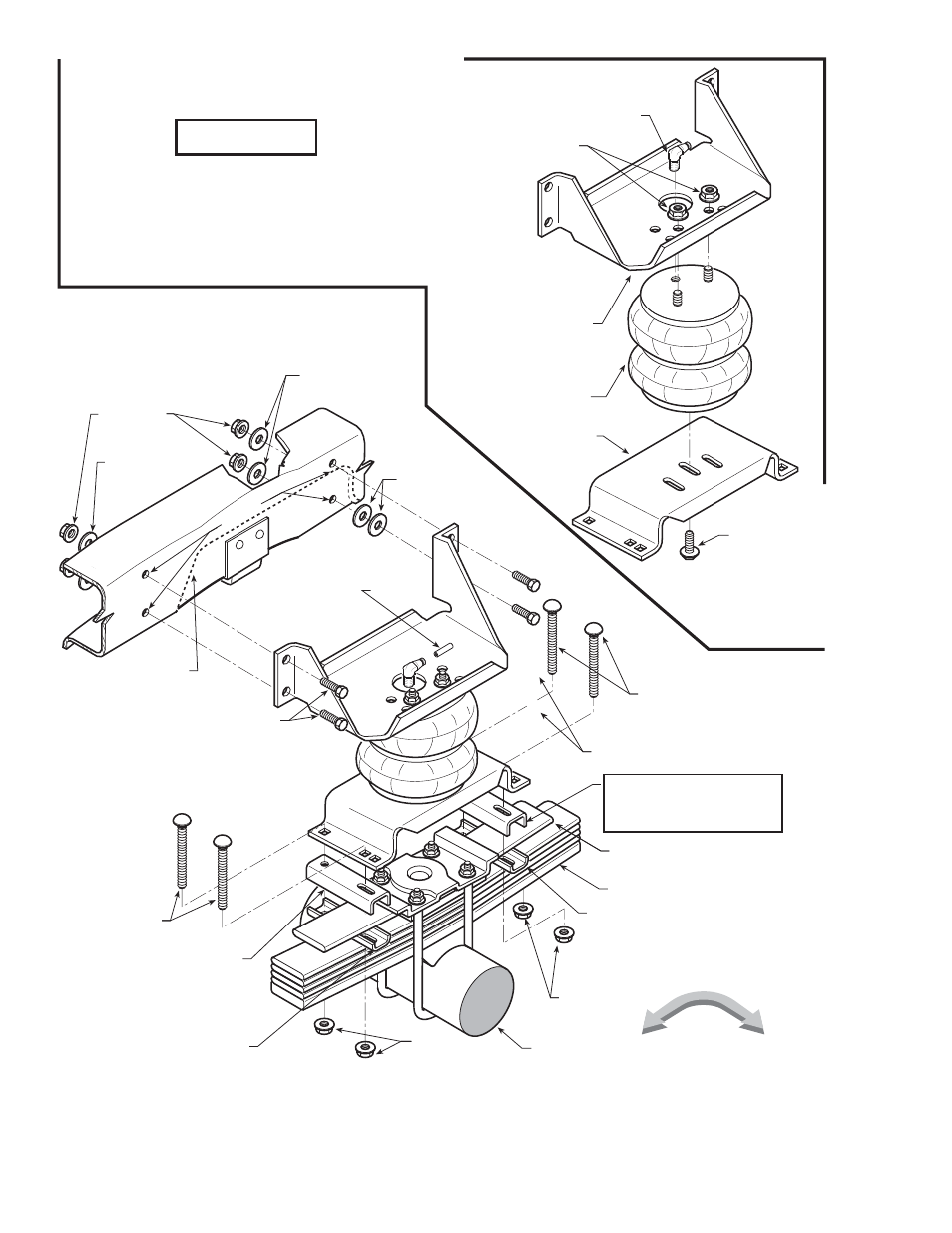

FIGURE "A"
2264
KIT TO FRAME ASSEMBLY
KIT ASSEMBL
Y
AIR LINE
3/8” -16 x 7”
CARRIAGE BOLT
3/8” -16 x 1-1/2”
HEX BOLT
PRIMARY LEAF
SPRING STACK
OVERLOAD LEAF SPRING
1/2” BRACKET STRAP
(PLACE UNDER PRIMARY
LEAF SPRING STACK IF
OVERLOAD LEAF SPRING
IS NOT PRESENT)
3/8” -16
FLANGED
HEX NUT
AXLE
1/2” BRACKET STRAP
(PLACE UNDER PRIMARY
LEAF SPRING STACK IF
OVERLOAD LEAF SPRING
IS NOT PRESENT)
1/2” OR 1” BRACKET STRAP
(USE WHICHEVER PROVIDES
MOST LEVEL FIT)
3/8” -16 x 7”
CARRIAGE BOLT
OPTIONAL:
1/2” OR 1” BRACKET STRAP
(USE WHICHEVER PROVIDES
MOST LEVEL FIT)
NOTICE
FOR 1973-1987 2WD CHEVROLET AND GMC PICKUPS: THE LOWER BRACKET NEEDS TO BE
REVERSED SO THAT THE LIP ON THE SIDE OF THE BRACKET IS FACING TOWARD THE CENTER OF THE VEHICLE.
THE ROTATION OF THE LOWER BRACKET IS TO ENSURE PROPER AIR SPRING ALIGNMENT. THIS APPLICATION
ALSO IS USED ON SOME FORD AND DODGE PICKUPS.
3/8” -16
FLANGED
HEX NUT
FITS WITH OR WITHOUT
OVERLOAD SPRINGS
3/8” -16 x 3/4”
FLANGED
HEX BOLT
LOWER BRACKET
267C AIR SPRING
UPPER BRACKET
3/8” -16
FLANGED
HEX NUT
AIR FITTING
3/8” FLAT
WASHERS
FOR USE WITH
FRAME
DEPRESSIONS
HOLES
TO BE
DRILLED
7/16"
3/8” FLAT WASHER
3/8” -16
FLANGED
HEX NUT
3/8”FLAT
WASHER
3/8” -16 x 1-1/2”
HEX BOLT
FRAME DEPRESSION
MOST COMMONLY
FOUND ON 1994
OR EARLIER
DODGE PICKUPS
