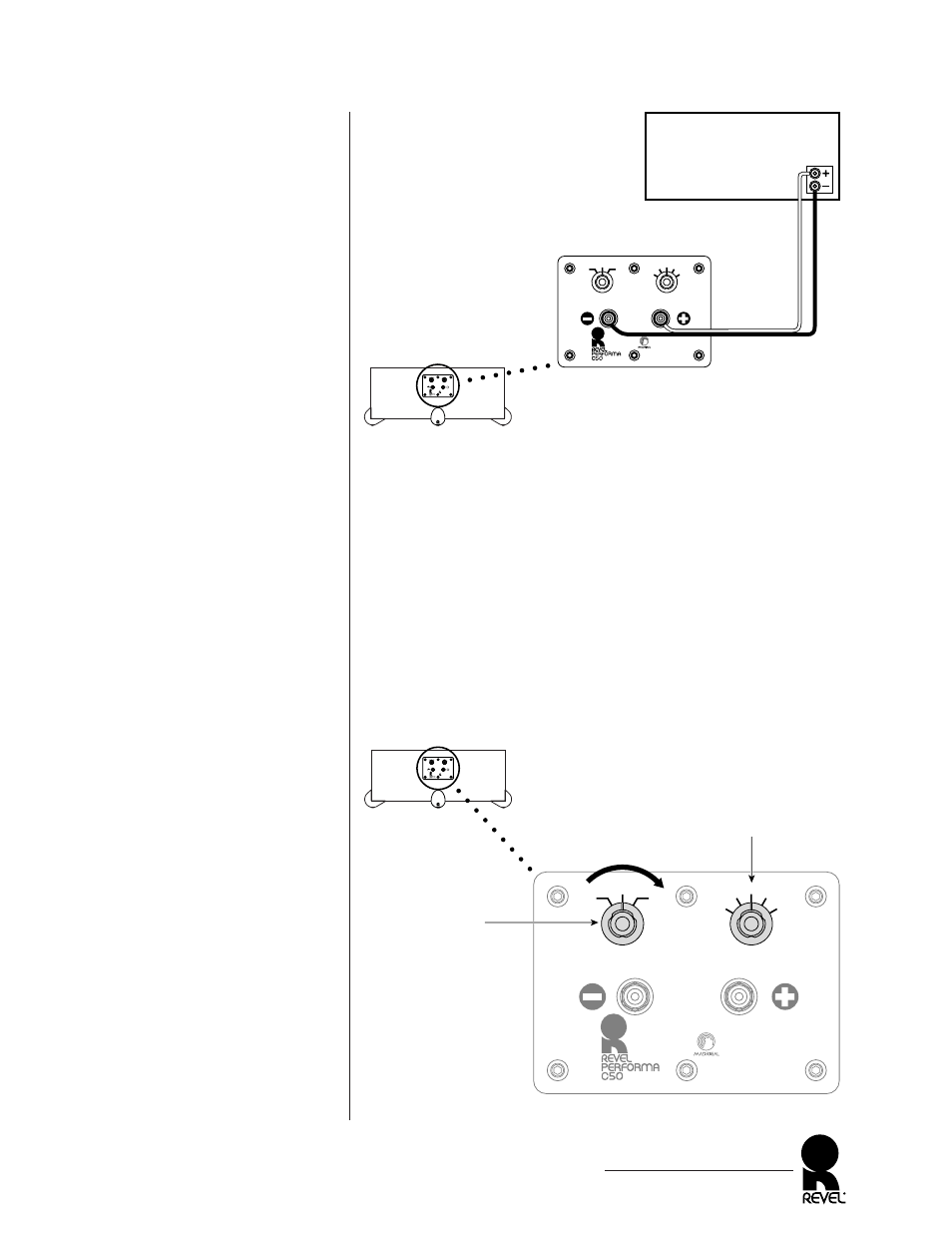

Figure 14. How to connect the
REVEL PERFORMA C50
center-channel loudspeaker in a
single-wired system.
Figure 15. The REVEL
PERFORMA C50 level and
placement control locations and
initial settings.
SYSTEM OPTIMIZATION
1. After connecting the REVEL PERFORMA C50 loudspeaker,
initially set the HIGH FREQUENCY LEVEL control on the
rear panel to the “0” position (see Figure 15).
REVEL PERFORMA C50
Owner’s Manual
15
On Top of
Monitor Flush Mounted Stand
Mounted 0 +.5 -.5 +1 -1
Placement
Compensation
(See Owner's Manual) High Frequency Level (dB)
Revel
Northridge, California
Made in U.S.A. Serial No.
On Top of
Monitor
Flush Mounted Stand
Mounted
0 +.5 -.5
+1 -1
Placement
Compensation
(See Owner’s Manual) High Frequency
Level (dB)
Revel
Northridge, California
Made in U.S.A.
Serial No.
red blk
REVEL
PERFORMA
C50
Rear
Connector Panel
Amplifier
(rear)
REVEL
PERFORMA
C50
Rear
On Top of
Monitor Flush Mounted Stand
Mounted 0 +.5 -.5 +1 -1
Placement
Compensation
(See Owner's Manual) High Frequency Level (dB)
Revel
Northridge, California
Made in U.S.A. Serial No.
On Top of
Monitor
Flush
Mounted
Stand
Mounted
0
+.5 -.5
+1 -1
Placement
Compensation
(See Owner’s Manual) High Frequency
Level (dB)
Revel
Northridge, California
Made in U.S.A.
Serial No.
Connector Panel
Set High-Frequency
Level Control To “0”
Bass
Increases
Set Placement
Compensation
Control To Match
C50 Placement
