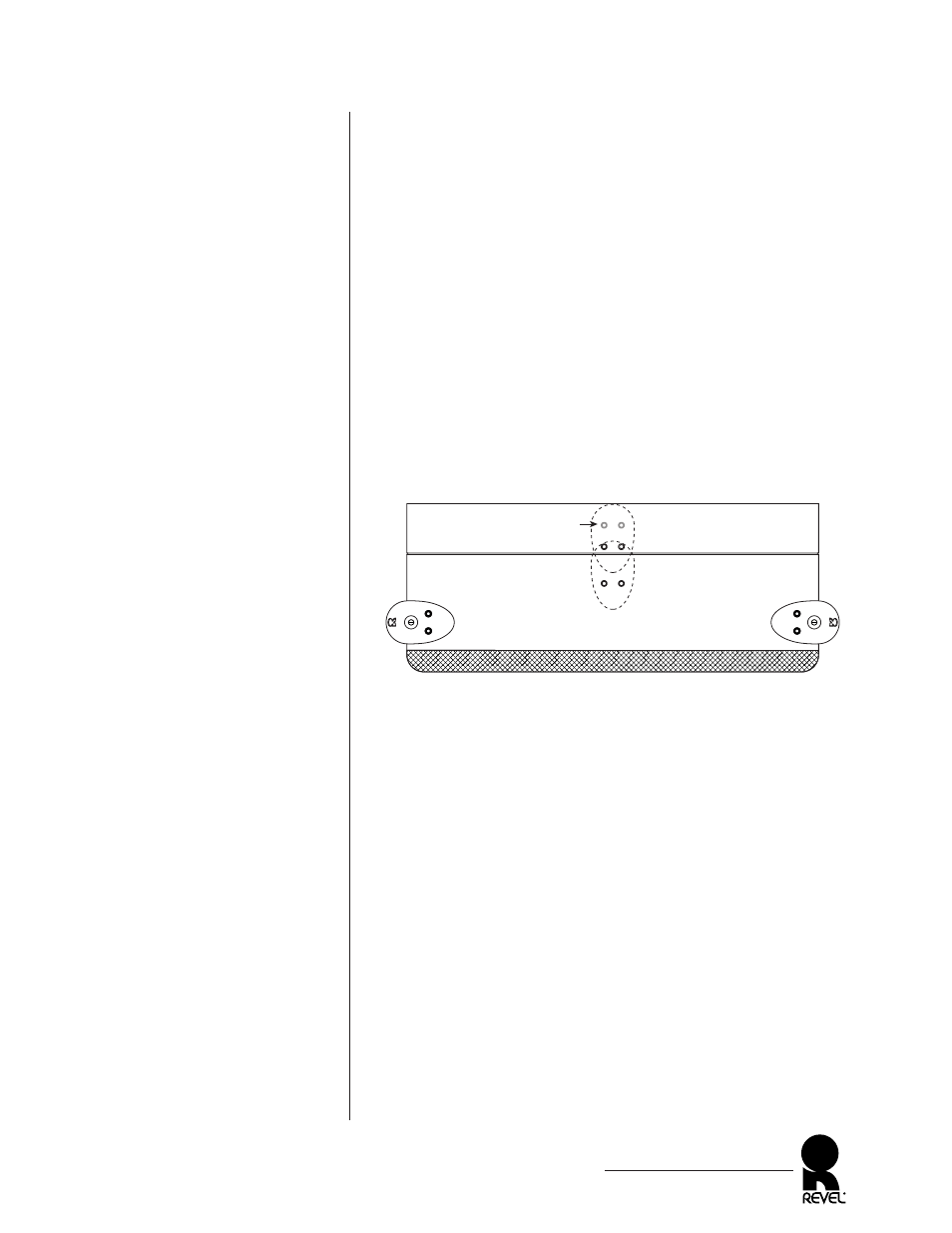

Figure 9. Installing the (rear)
center flat foot for shallower
television cabinets.
RELOCATING THE CENTER FOOT
As shipped, the REVEL PERFORMA C50 loudspeaker is preset for
placement on top of a large-screen television set or deep bookshelf.
If your television set or bookshelf is shallower, you’ll need to
remove the (rear) center L-foot and install the supplied flat foot in
one of two positions for a narrower footprint as follows:
1. Use a Phillips screwdriver to remove the screws from the (rear)
center L-foot. Save the L-foot with the the packing materials.
2. Locate and align the flat foot with a desired set of threaded
inserts, as shown in Figure 9. Then reinstall the screws.
NOTE: Do not use the L-foot’s threaded inserts.
REVEL PERFORMA C50
Owner’s Manual
11
Foot Position for
Shallow TV Cabinet
Foot Position for
Less Shallow TV Cabinet
Do not use
these inserts
REVEL PERFORMA C50
Bottom
