FILTER NETWORK
Optimize loudspeaker on-axis and off-axis
response with high-order filters at 575Hz and
3.0kHz, helping to ensure smooth octave-
to-octave balance and timbral accuracy.
Removable shorting-straps and gold-plated
binding posts accommodate single-wired,
bi-wired and bi-amplified connections.
REAR PANEL
The numbers in Figure 5 (above) corre-
spond with the numbered items beginning-
below.
1. Woofer Port
Enhances low-frequency extension.
Computer-optimized internal and
external flares minimize distortion
resulting from air turbulence.
2. Input Connectors
Provide high and low-frequency input
connections from the associated power
amplifier(s). Two high-frequency and
two low-frequency gold-plated binding
posts are available. These inputs can be
configured for single-wired, bi-wired or
bi-amplified connections. Refer to the
Making Connections section that
begins on page 13 for additional infor-
mation.
3. Shorting-Straps
Two gold-plated shorting-straps are
installed for single-wired connections.
The shorting-straps must be removed
when the system is configured for bi-
wired or bi-amplified connections. Refer
to the Making Connections section
beginning on page 13 for additional
information.
The numbers in Figure 5 (above) correspond with the numbered items in the Rear Panel section that begins below.

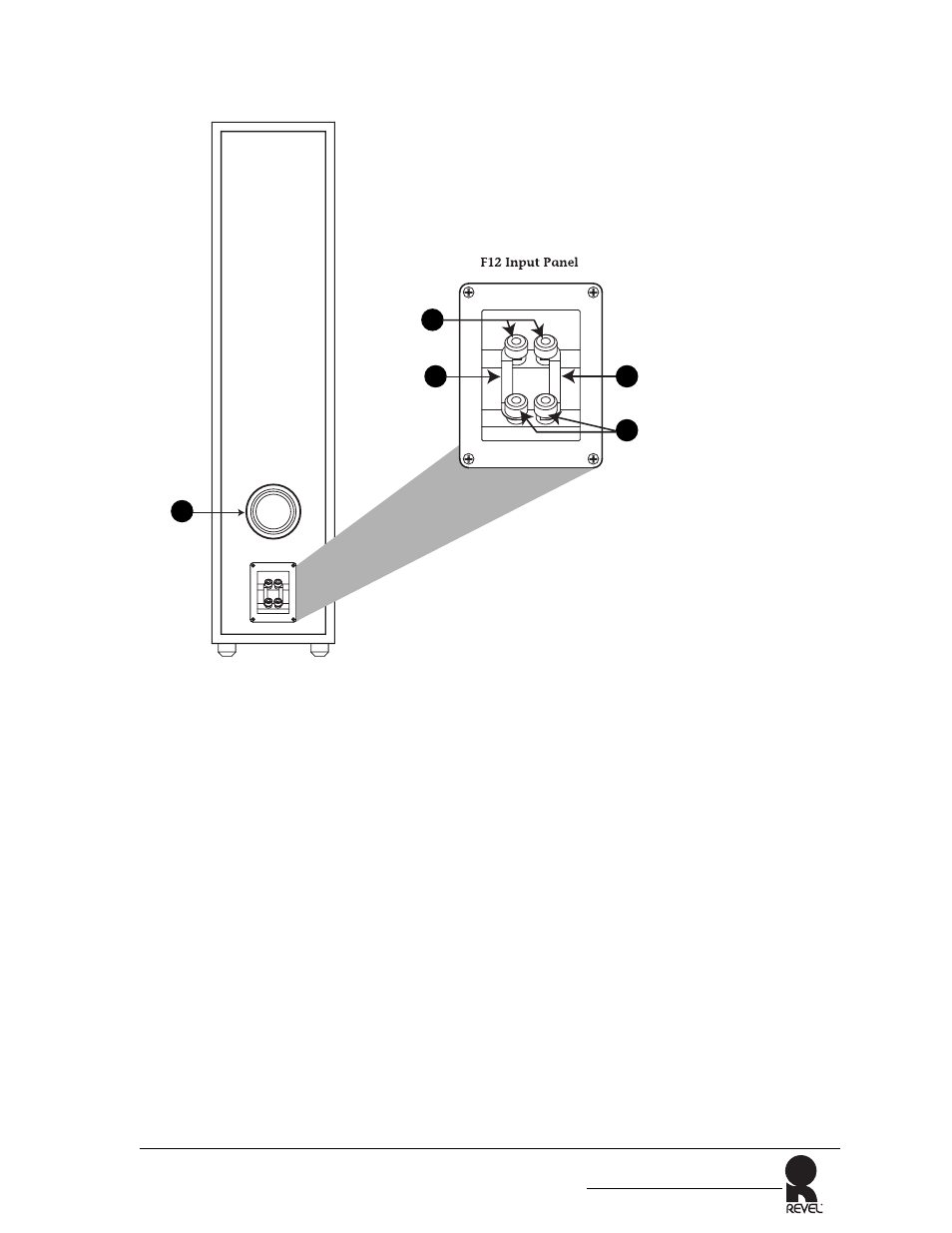

Figure 5: F12 Loudspeaker (Rear View)
