Step Four
For Medium and Large Table Stand Assembly
Use the screw and washer to attach the medium or large
base assembly to the speaker assembly, as shown.
Step Five
For Medium and Large Table Stand Assembly
Run the speaker wire through the table stand plate. Use
three screws (provided) to attach the plate to the bottom
of the base assembly.
7

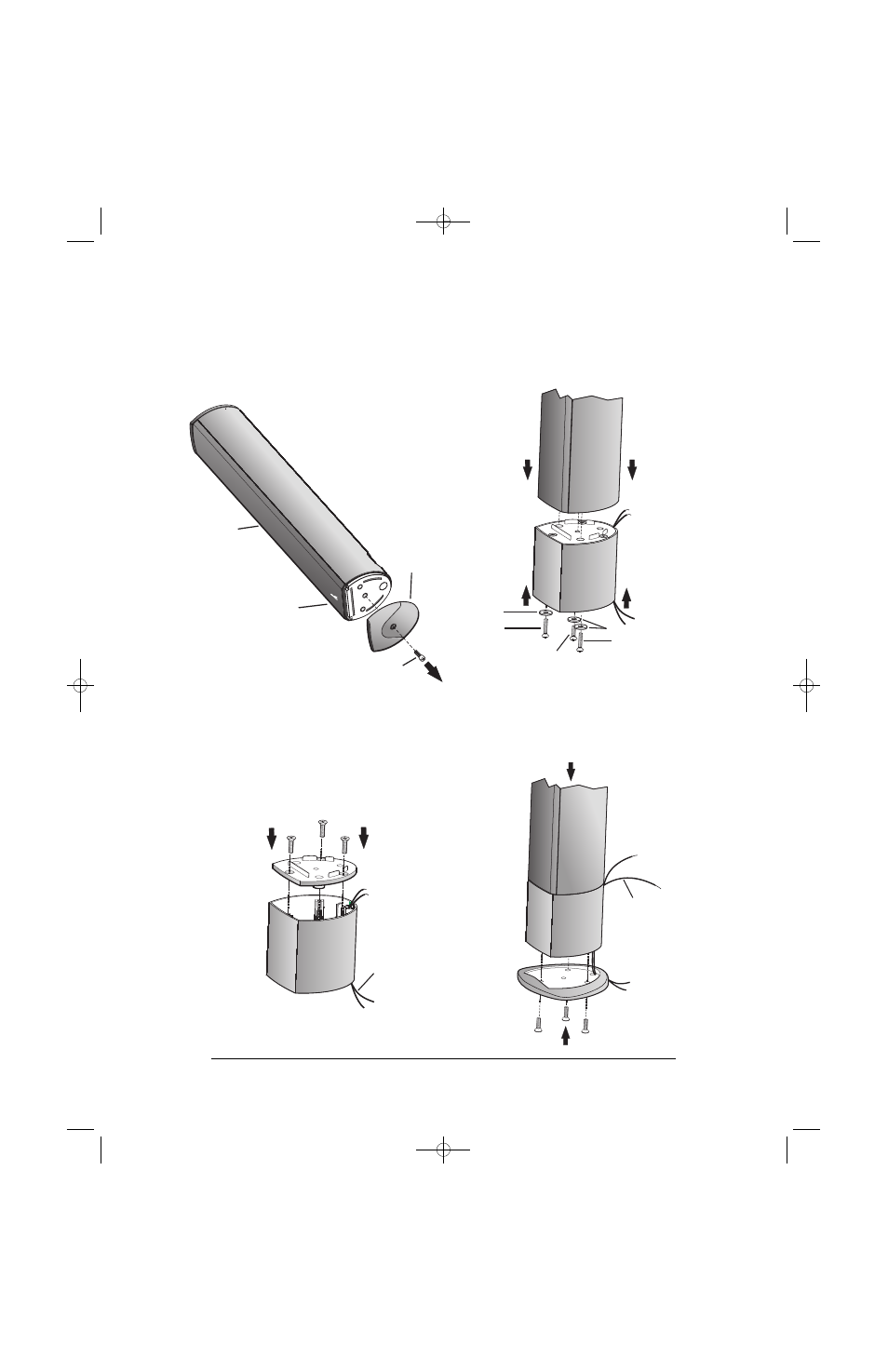

Step Two
For Medium and Large Table Stand Assembly
Using the included Allen wrench, remove the bottom end
cap of the loudspeaker by unscrewing the single center
screw on the bottom.
Note: The bottom is the end closest to the
Revel logo on the front grille and the speaker
connections on the rear.
Step Three
For Medium and Large Table Stand Assembly
Run the speaker wire through the collar. Using three
screws, attach the table stand plate to the medium or
large section, as shown.
Satellite speaker
Revel logo
End cap
1/4-20 x 3/4"
Screw
(3) 1/4-20 x 7/8"
Flat-head screws
Speaker wire
1/4-20 x 1"
Pan-head screw
Flat washer
Flat washers
1/4-20 x 1"
Pan-head screw
1/4-20 x 3/4"
Pan-head screw
(3) 1/4-20 x 7/8"
Flat-head screws
Speaker wire
