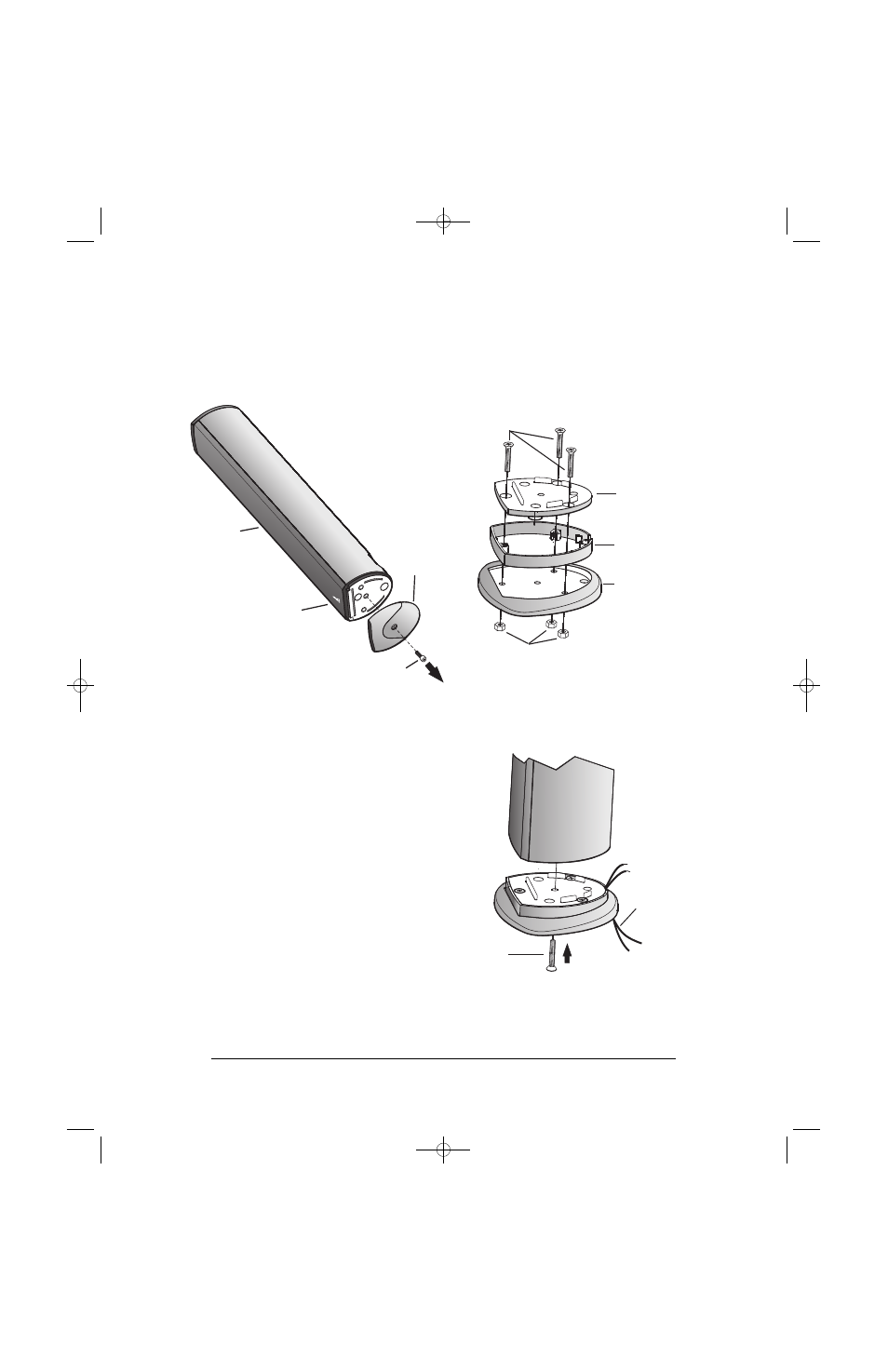

Step Three
For Small Table Stand Assembly
Assemble the table stand plate, the small section and
the foot. Place three nuts (provided) in the base of the
foot and secure them in place by inserting three screws
(provided) through the top of the table stand plate.
Step Four
For Small Table Stand Assembly
Run the speaker wire through the base, and screw the
foot assembly to the speaker assembly.
6
Step Two
For Small Table Stand Assembly
Using the included Allen wrench, remove the bottom end
cap of the speaker by unscrewing the single center
screw on the bottom.
Note: The bottom is the end closest to the
Revel logo on the front grille and the speaker
connections on the rear.
Satellite speaker
Revel logo
End cap
1/4-20 x 3/4"
Screw
1/4-20 x 1-1/4"
Flat-head screw
Speaker wire
(3) 1/4-20 Nuts
Table stand plate
Small section/collar
Foot
(3) 1/4-20 x 7/8"
Flat-head screws
