3 In-Wall Architectural Loudspeaker
Instruction Manual
About Revel ® IN-WAll SpeAkeRS
Since the first Revel ® speakers in 1996, Revel products have stood at
the forefront of loudspeaker design and performance. Revel in-wall
loudspeakers draw upon the same research, resources and unique
perspective that put all Revel loudspeakers in a class by themselves.
Revel in-wall loudspeakers provide unparalleled value and are known
for their standard-setting low sonic coloration and their freedom from
distortion over an extraordinarily wide dynamic range.
W970 ANd W990 loudSpeAkeR HIgHlIgHtS
• Long-throw woofers with cast aluminum frames, MCC (Micro
Ceramic Composite) cones and rubber surrounds provide high output
with low distortion.
• 1-inch (25mm) aluminum-dome tweeter with an integrated
waveguide provides optimized response both on and off axis.
• 3.5-inch (89mm) midrange (W990) handles critical mid-band
frequencies with natural tonal balance over a wide operating range.
• High-order crossover network with premium-quality components
delivers extraordinarily accurate timbre reproduction.
• Boundary compensation switch lets you adjust the speaker to
maintain tonal accuracy when the speaker is placed near an
additional wall or the ceiling.
• Three-position tweeter level control lets you adjust for optimum
response in a variety of acoustical environments, or for using the
speakers without grilles.
• High-frequency tilt and listener axis controls help compensate for
less-than-ideal speaker placement.
pRoduct RegIStRAtIoN
Please take a moment to register your product on our Web site at
www.revelspeakers.com. You’ll enable us to keep you posted on our
latest advancements and help us to understand our customers and build
products that meet their needs and expectations.

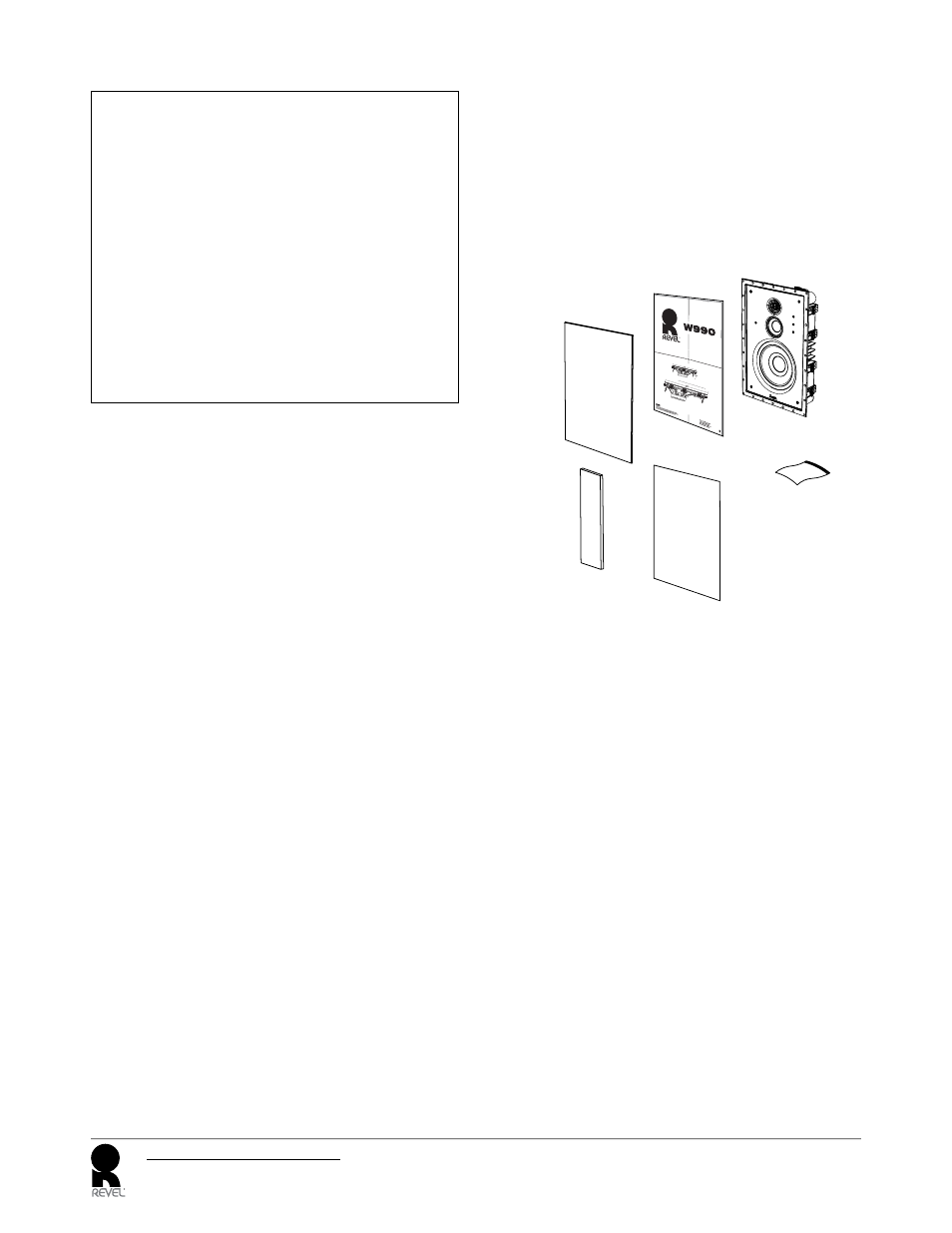

box coNteNtS
Your Revel in-wall loudspeaker box should contain the following items:
Installation
Template
Grille
Frame
Alignment
Tool
Allen Wrenches
Replacement
Scrim Cloth
Speaker and
Mounting Frame
uNpAckINg tHe SpeAkeR
Carefully unpack the speaker. If you suspect damage from transit, report
it immediately to your dealer and/or delivery service. Keep the shipping
carton and packing materials for future use.
INStAllAtIoN coNSIdeRAtIoNS
Your new Revel loudspeakers have been engineered to provide
extremely accurate performance. However, any speaker’s ultimate
performance will be affected by the speaker’s placement in the listening
room and the acoustics of the room. Not all listening spaces can
accommodate the ideal conditions of these two factors. Therefore,
careful attention to the placement of your Revel in-wall loudspeakers
will have a significant impact on the general performance of the
loudspeakers.
documeNtAtIoN coNveNtIoNS
This document contains general safety, installation and operation
instructions for the Revel ® W970 and W990 in-wall loudspeakers.
It is important to read this document before attempting to use this
product. Pay particular attention to:
WARNING: Calls attention to a procedure,
practice, condition or the like that, if not
correctly performed or adhered to, could result
in injury or death.
CAUTION: Calls attention to a procedure, practice,
condition or the like that, if not correctly performed or
adhered to, could result in damage to or destruction of part
of or the entire product.
Note: Calls attention to information that aids in the
installation or operation of the product.
