Hand Priming Tool

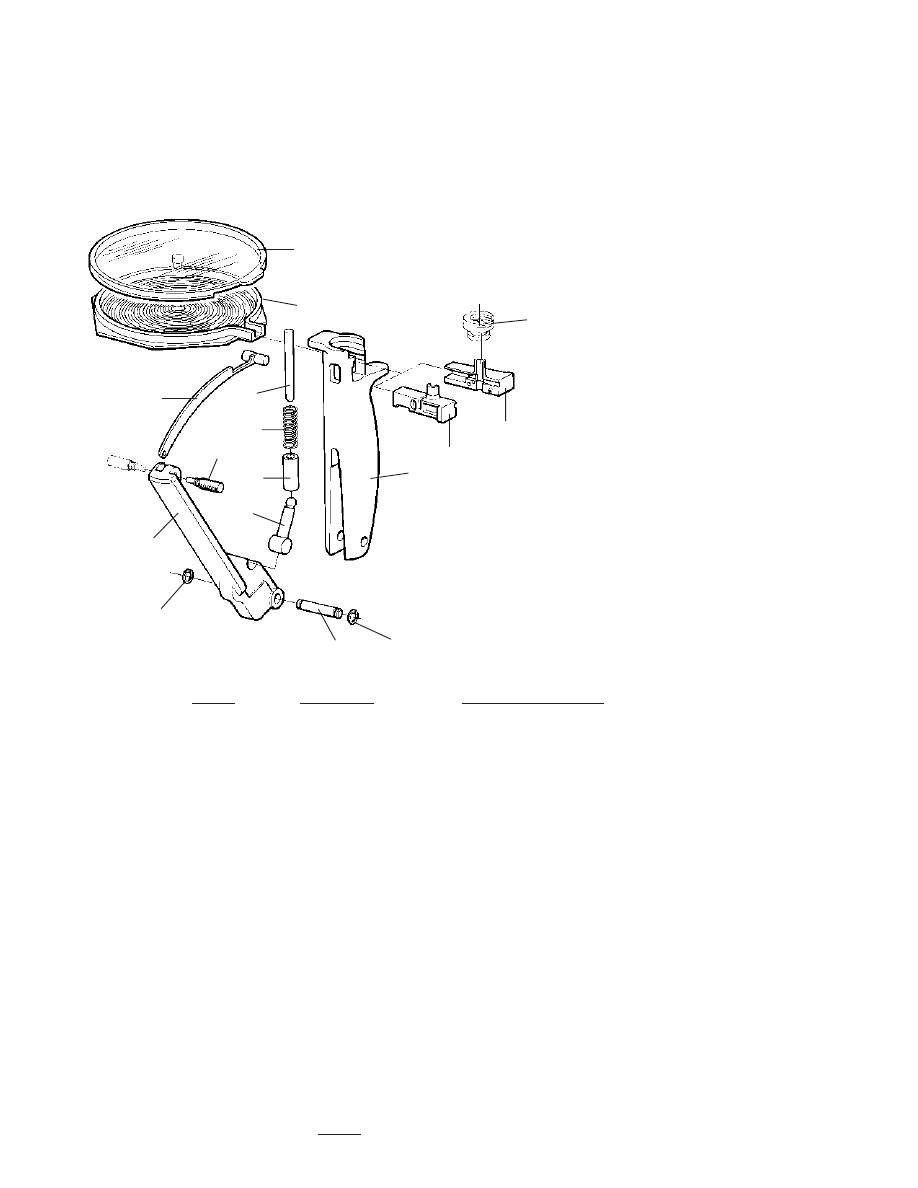

Parts List
CARE AND MAINTENANCE
Clean the primer tray and dispensers every 500 rounds to prevent the build-up of primer dust.
Occasionally lubricate the pivot link assembly with a drop of light oil. Remember, oil will contami-
nate primers and cause misfires. Avoid using too much lubricant on the tool. If you need additional
help or replacement parts, call RCBS.
KEY PART # DESCRIPTION
1 7-90201 Hand Priming Tool Body
2 7-90202 Handle
3 1-90203 Primer Feed, Large, Right Half
3 1-90205 Primer Feed, Small, Right Half
4 1-90204 Primer Feed, Large, Left Half
4 1-90206 Primer Feed, Small, Left Half
5 1-90207 Primer Tray Lid
6 1-90208 Primer Tray
7 7-90220 Pivot Link Assembly
8 7-90211 Safety Gate Screw
9 7-90212 Handle Pin
10 7-90213 Primer Rod, Small
10 7-90214 Primer Rod, Large
11 7-90215 Link Follower
12 1-90221 Safety Gate Assembly
13 1-90217 Return Spring
14 1-87670 Retaining Ring (2)
15 Shell Holder (Not Supplied)
