RCBS ProMelt Electric Lead Furnace - Manual (Page 5)

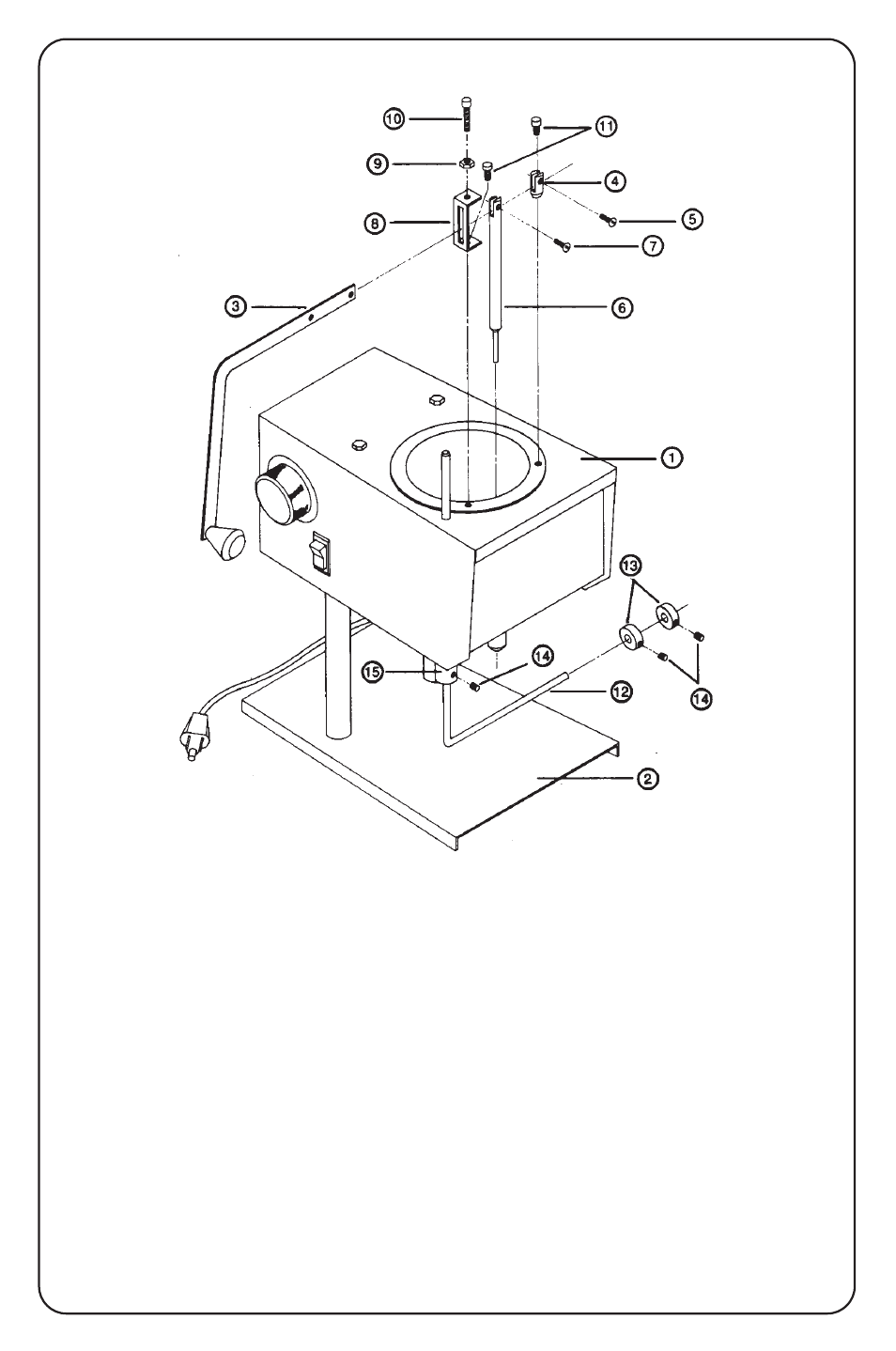

KEY PART# DESCRIPTION
1 81101 Furnace body
2 81103 Base
3 81104 Handle
4 81107 Handle fulcrum
5 81108 Round head screw 5 /
40
x 1 /
2
6 81114 Nozzle shut-off pin
7 81115 Round head screw 5 /
40
x 3 /
8
8 81110 Adjustment bracket
9 81112 Hex nut 10 /
32
10 81111 Socket head cap screw 10 /
32
x 1 1 /
4
(2)
11 81109 Socket head cap screw 10 /
32
x 3 /
8
(2)
12 81116 Mould guide rod
13 81117 Mould guide collar (2)
14 09099 Setscrew 10 /
32
x 1 /
4
FP (3)
15 81118 Mould guide housing bushing
