Page 37

INSTALLATION

Check the appliance is electrically safe and gas sound when you have finished.

ArtNo.102-0005 - Gas regulator types

Type 1

Type 2

Fig.7-5

ArtNo.0102-0001 - Unscrewing

the control valve bypass screw

Replace the rings on the burners. Screw in the hexagon

headed venturi to make fitting the burners easier. Do not

tighten yet.
When all the burner bases and venturis have been fitted

tighten the venturi nuts.

Valve adjustment

Pull off all the control knobs.
Open both oven doors and remove the fixing screws

underneath the control panel.
On single oven models the cooling guide, below the control

panel, and its 4 fixing screws must be removed to gain access

to the control panel fixings.
Remove the 3 fixing screws at the top of the control panel.
Pull the control panel forward. Taking care not to damage it,

by protecting it with cloth for example, rest it on the open

oven doors.

To convert the control valves

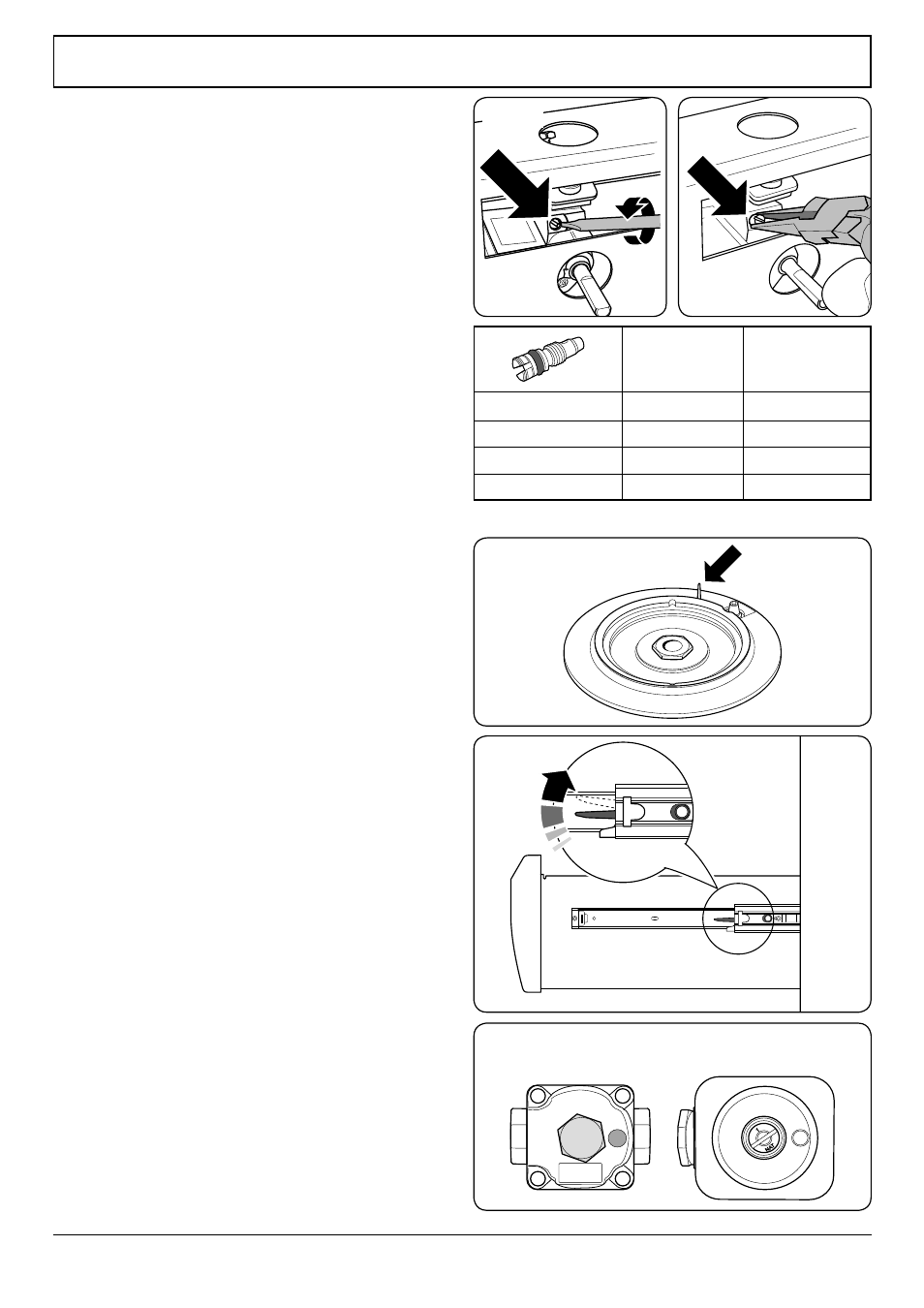

Unscrew the control valve bypass screw (Fig.7-2). Using a

pair of long nose pliers, carefully remove the bypass screw

(Fig.7-3).
Install the correct replacement screw. See Table 7-2 for the

correct size. Tighten the screw down.

Valve bypass screws

Save the removed bypass screws for possible future

reconversion to Natural gas.

Reassemble

Replace the control panel and secure with fixing screws.
Refit the control panel and cooling guide where fitted.
If you have lifted the maintop, carefully lower it onto the

range. The burners are protected against the burner flames

going out by Flame Supervision Devices (FSD’s).
Take care when lowering the maintop to locate the FSD

sensor probes (Fig.7-4) in their holes in the cooktop and the

burner bases.

Gas Regulator

Pull the drawer right out.
Push the ends of the plastic clips – down of the left-hand side,

up on the right-hand side – to release the catches holding the

drawer to the side rails (Fig.7-5). At the same time pull the

drawer forwards and away from the side rails.
For safety’s sake push the drawer rails back out of the way.
The regulator is now accessible.
The regulator may be one of two types (Fig.7-6).

ArtNo.0102-0002 - Removing the

tap bypass screw

Fig.7-2

Natural Gas Propane Gas

Cooktop

Bypass

Center burner

Large burners

Right front burner

Fig.7-3

Table 7-2

Fig.7-4

Fig.7-6
