124800 to 124899

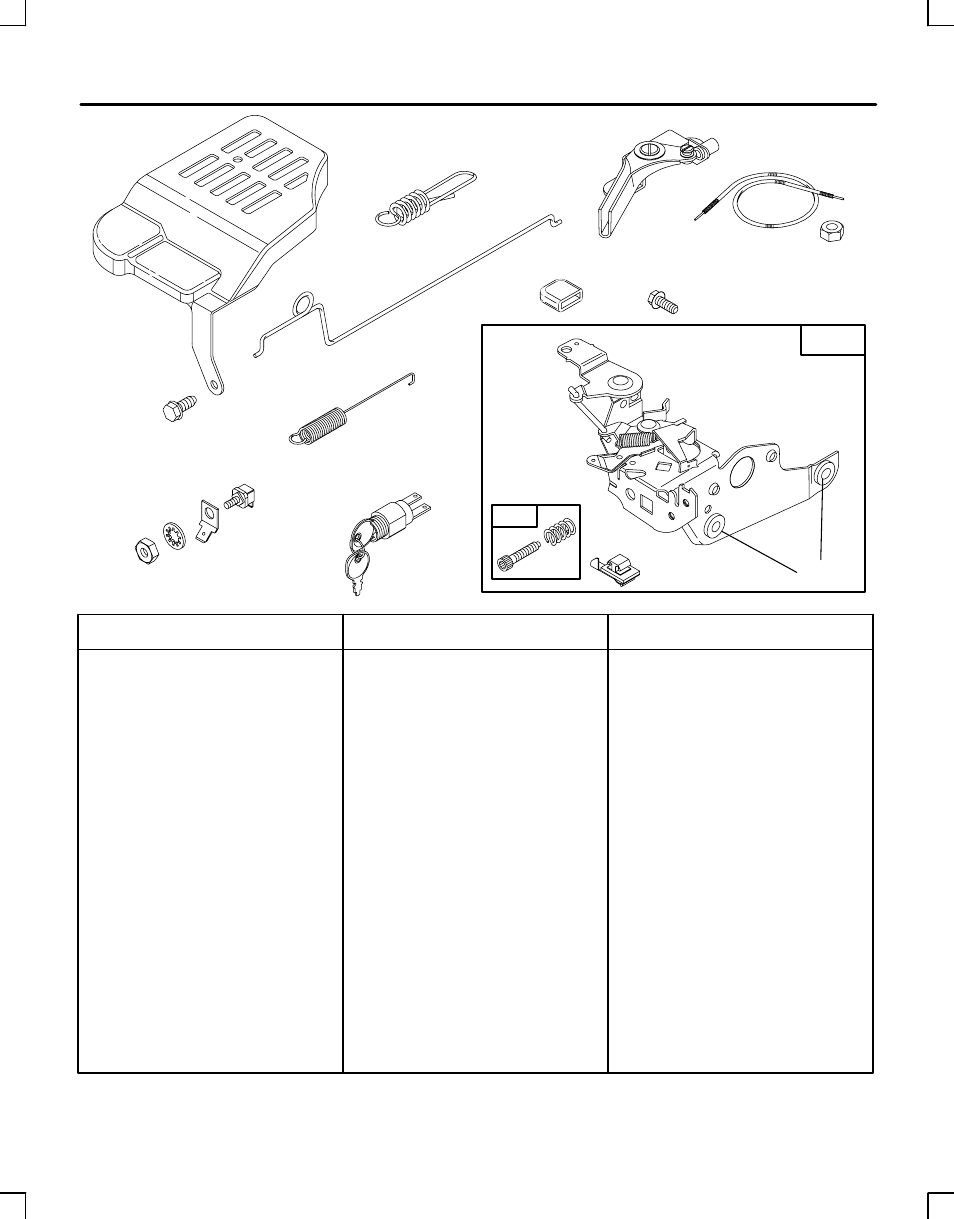

2436–5 Assemblies include all parts shown in frames. 104
5
209
201
618
270
268
269
271
575
447
605
985
353
520
354
188A
98A
620
621
670A
843
98A 493280 Screw–Speed Adj.
188A 94644 Screw–Hex. Hd.
201 262579 Link
209 Spring–Governor
See Last Pages.
268 65616 Casing–Wire
(72” Long)
66986 Casing–Wire
(48” Long)
––––––– Note –––––
If Longer Casing is
Needed, Specify
Length in Inches; if
Shorter Casing is
Needed Order and Cut
to Required Length.
269 26633 Wire–Control
(78” Long)
26099 Wire–Control
(54” Long)
––––––– Note –––––
If Longer Wire is
Needed, Specify
Length in Inches; if
Shorter Wire is
Needed and Cut to
Required Length.
270 63426 Locknut–Casing
271 290568 Lever–Control
353 92791 Washer–Lock
354 90576 Nut–Hex.
447 93801 Screw–Hex. Hd.
520 93722 Terminal
575 396291 Switch Assy.–Key
Include(s):
392832 Key Set
605 224509 Cover–Control
618 262749 Spring–Return
620 495975 Bracket–Control
(Remote Control)
(Used After Code Date
93080100).
493894 Bracket–
Control
(Used Before Code
Date 93080200).
––––––– Note –––––
495976 Bracket–
Control
(Manual Friction
Control)
(Used After Code Date
93080100).
493895 Bracket–
Control
(Used Before Code
Date 93080200).
Used on Type No(s).
3228, 3230.
621 396847 Switch–Stop
670A K 493823 Spacer
(Includes 2)
843 272616 Sleeve–Lever
985 398525 Insulator
K
Included in Gasket Set–See Ref. 358.
D Included in Carburetor Kit–Part No. 493762.
z Included in Carburetor Gasket Set–Part No. 490937.
