Briggs & Stratton 124800 - Manual (Page 14)

124800 to 124899

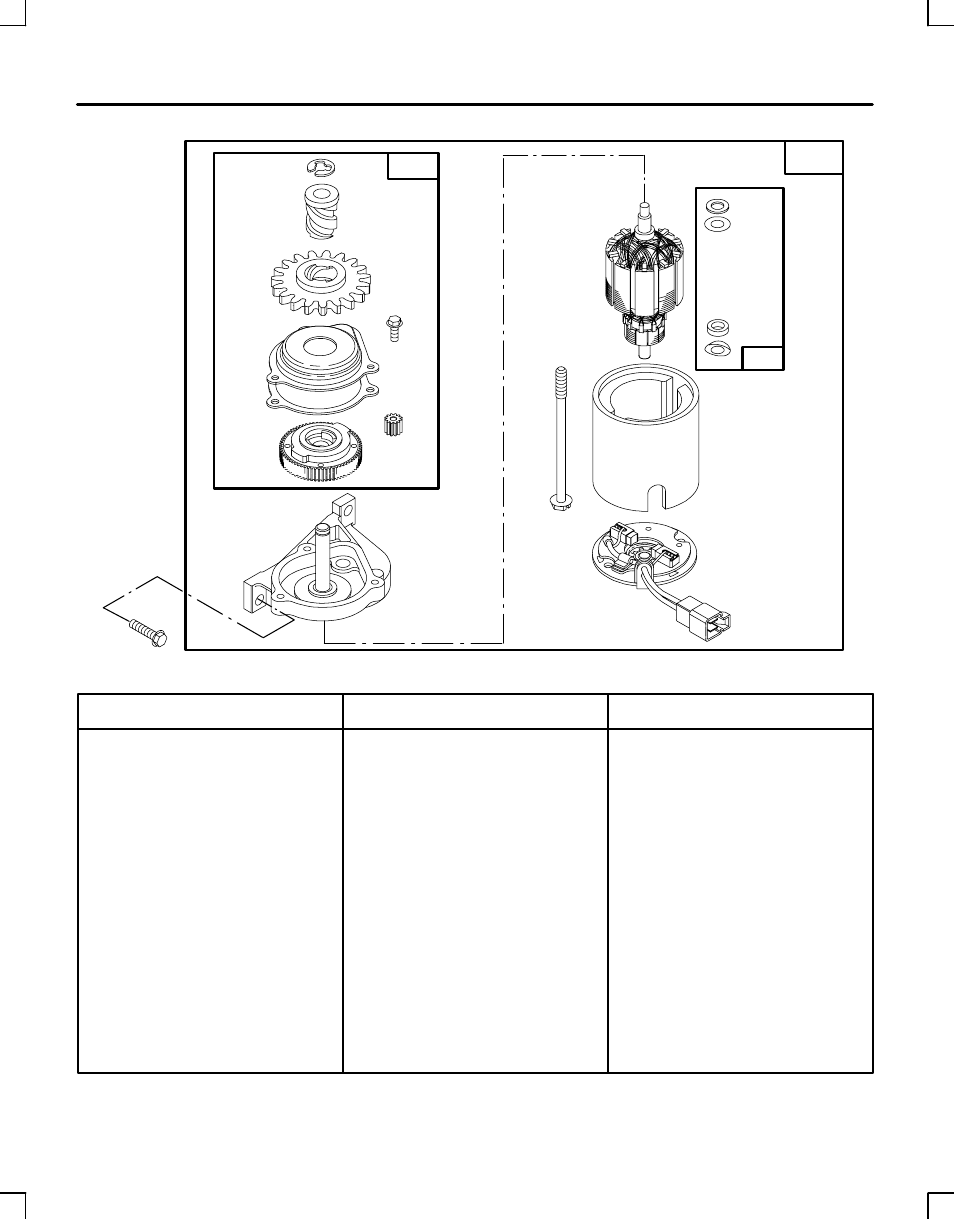

2436–14 Assemblies include all parts shown in frames. 104
14
74
510
513
782
783
784
785
801
937
938
22A
548
310
544
802
803
309
22A 94268 Screw–Hex. Head
74 93490 Screw–Sem.
309 494233 Motor–Starter
310 94051 Bolt–Thru
510 494147 Drive–Starter
513 394815 Clutch–Drive
544 492921 Armature–Starter
548 492919 Washer Set
782 281127 Gear–Starter
783 261606 Gear–Starter
784 224262 Cover–Gear
785 272201 Gasket–Cover
801 492335 Cap–Drive
802 492922 Cap–End
803 492920 Housing–Starter
937 281125 Spline–Starter
938 93941 Retainer–Lock
