Kino Flo Image 82, 42 & 22 - Manual (Page 4)

4

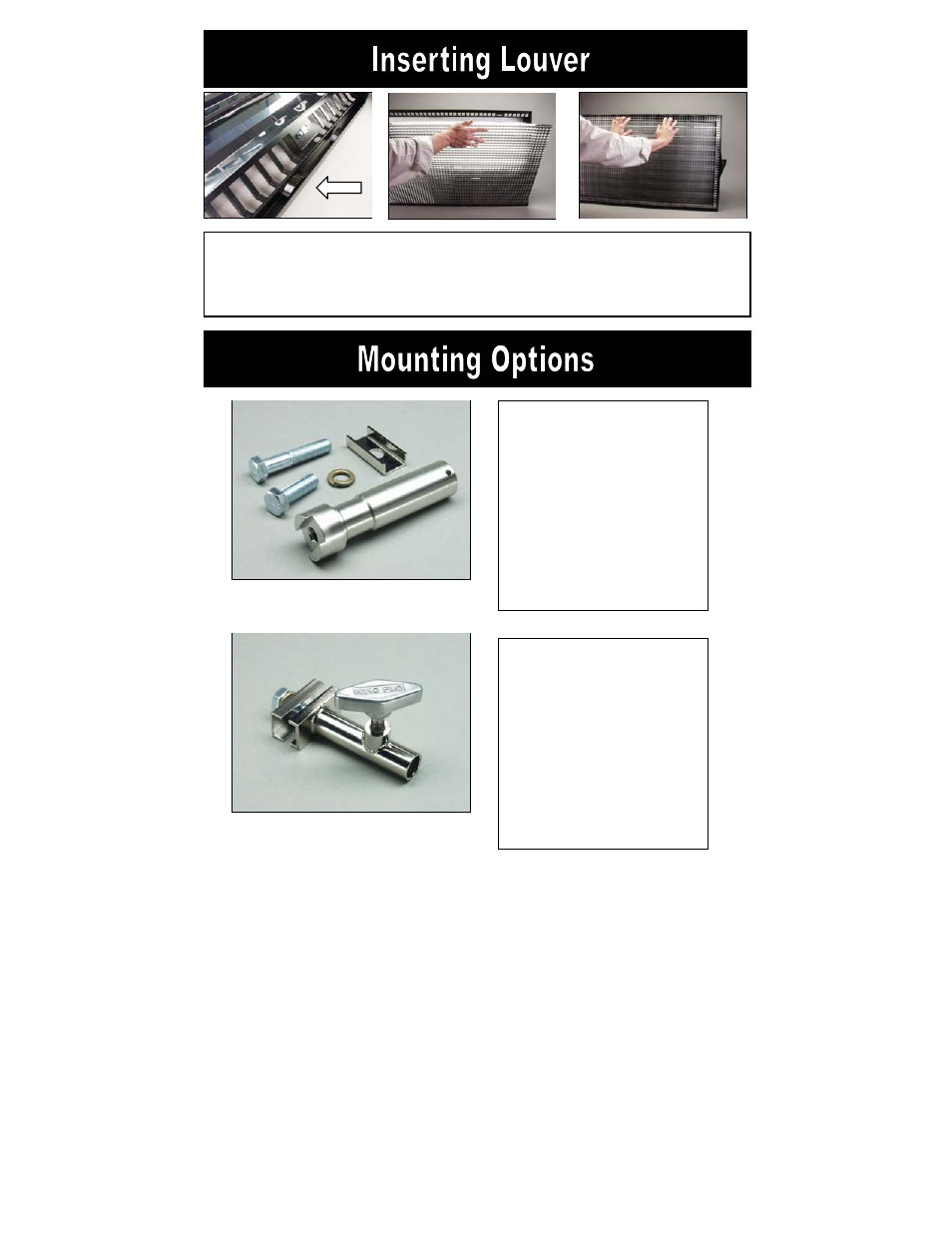

Junior Pin Assembly
Place the long edge of the Louver into the lower channel containing a set of
leaf springs. Press down on the Louver and slip the upper edge of the
louver into the upper channel of the fixture. To remove reverse the
procedure.
The Image 82 requires a
Junior Pin assembly or
any other clamping device
that uses a ½ inch bolt.
The Image 82 uses the
longer bolt. The Image 42
and 22 require the shorter
bolt.
The Baby Receiver is for
use only on the Image 42
and Image 22.
Do Not use the Baby
Receiver on the Image 82.
This receptacle is not
strong enough to safely
hold the greater weight of
the Image 82.
Baby Receiver Assembly
