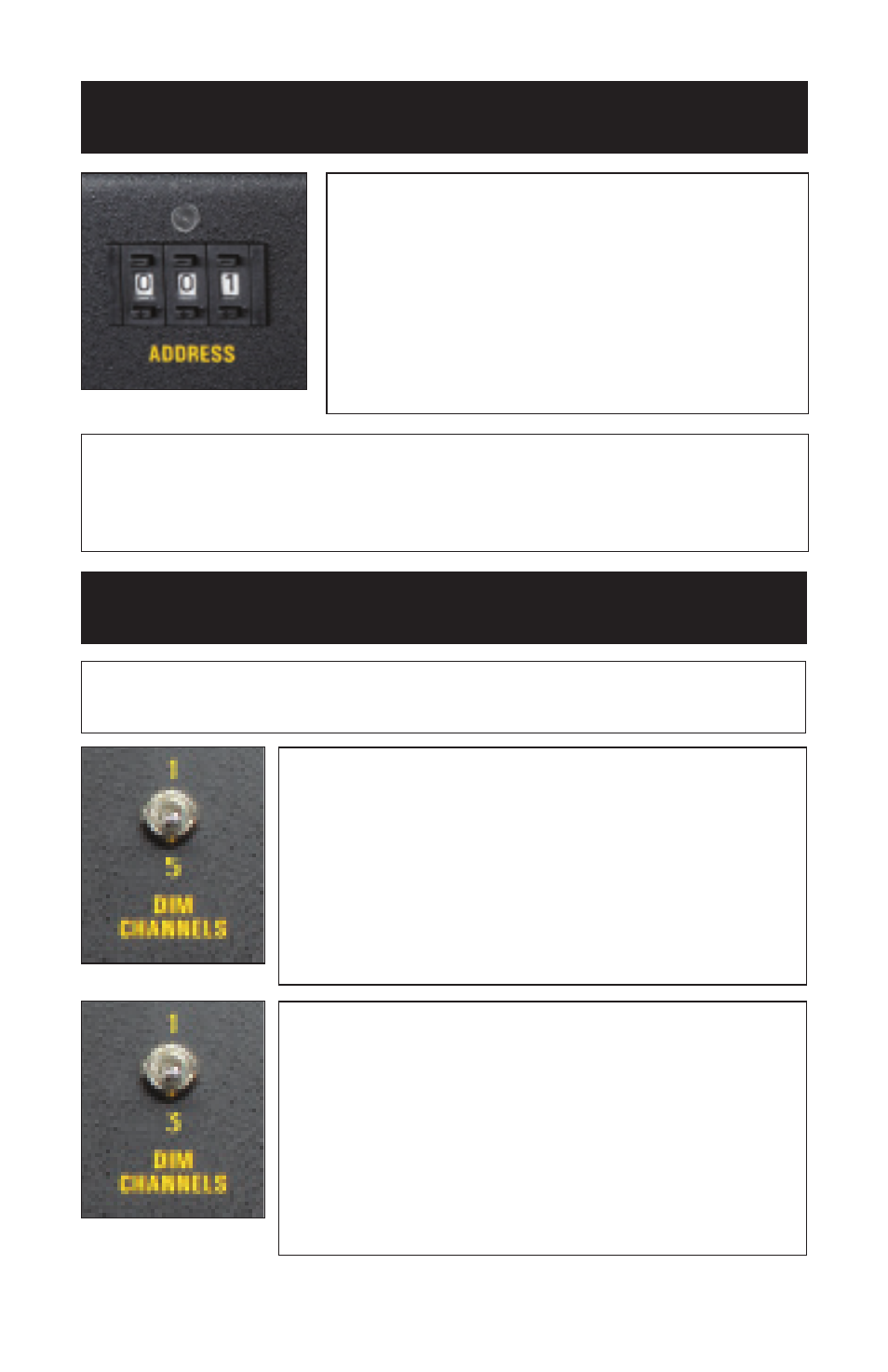

DMX Operation
DMX Addressing
Prior to hanging any instruments, set the
DMX address of each fixture.
Push the tabs above or below the number window
to set the address. (Valid addresses range from
001 to 512.) The light above the address block
will illuminate if a DMX signal is present.
IMPORTANT!
The dimmer board/light console should have its channel set to LINEAR light
output response. (LINEAR response is the default setting on most dimmer
boards.)
DMX Dim Channels
The DMX DIM CHANNELS feature allows the user to select lamps for
DMX dimming control.
IMARA S10 operates on 1 or 5 DMX addresses.
On DIM Channel 1, one DMX address controls/dims all
10 lamps on one dimmer channel.
On DIM Channel 5, five DMX addresses control/dim
10 lamps in sets of 2.
IMARA S6 operates on 1 or 3 DMX addresses.
On DIM Channel 1, one DMX address controls/dims all
6 lamps on one dimmer channel.
On DIM Channel 3, three DMX addresses control/dim
6 lamps in sets of 2.
See configurations on the following page for lamp
sequence.
