Kino Flo Diva-Lite 401/201 & 400U - Manual (Page 9)

9

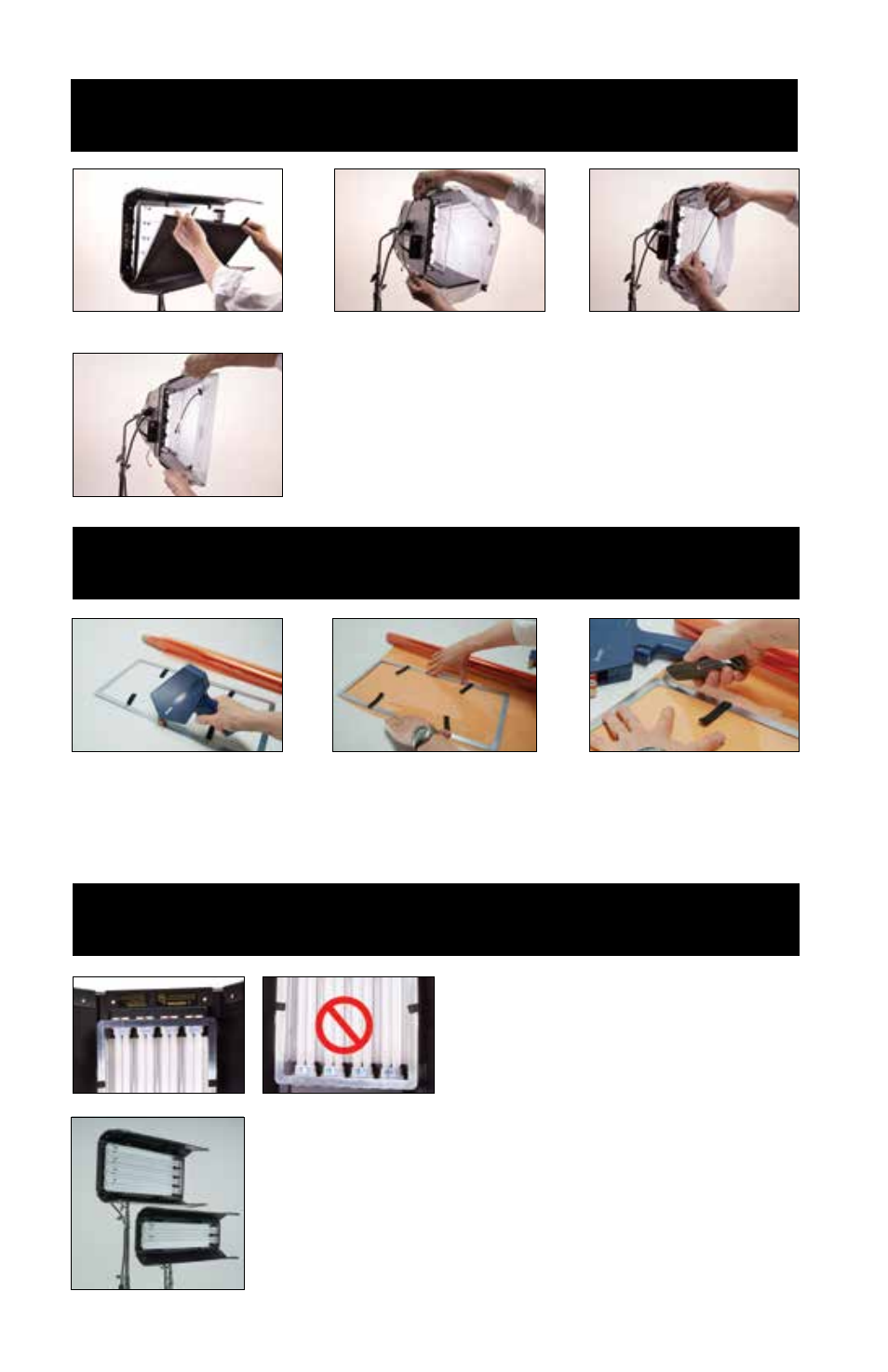

Mounting Flozier
Remove Louver.
Rotate all Velcro tabs
to the inside of frame.
Apply double sided
transfer tape to one
side of the gel frame.
Expand the Barndoors to smooth out the face of the Flozier
and eliminate wrinkles.
Stretch two elastic
cords around fixture.
Lay the taped side down
on the gel and press
firmly for adhesive to
adhere.
Take up slack on both
elastic cords.
Trim the excess gel
from the frame. Rotate
Velcro tabs back into
position.
VERTICAL MODE:
Follow the principle of lamp base up
and lamp tip down. This orientation
keeps the mercury away from the
cathodes and provides best color
temperature stability and best color
rendering.
DO NOT operate fixture with lamp
base in the down position. Color can
diverge up to 400K and will get very
green.
HORIZONTAL MODE:
Even in the horizontal position, a slight rotation favoring the
lamp tips (lamp base higher than the lamp tip) will allow for
better color temperature stability.
Applying Gel to Gel Frame
Correct Lamp Orientation
